What it is and where it lands in a panel

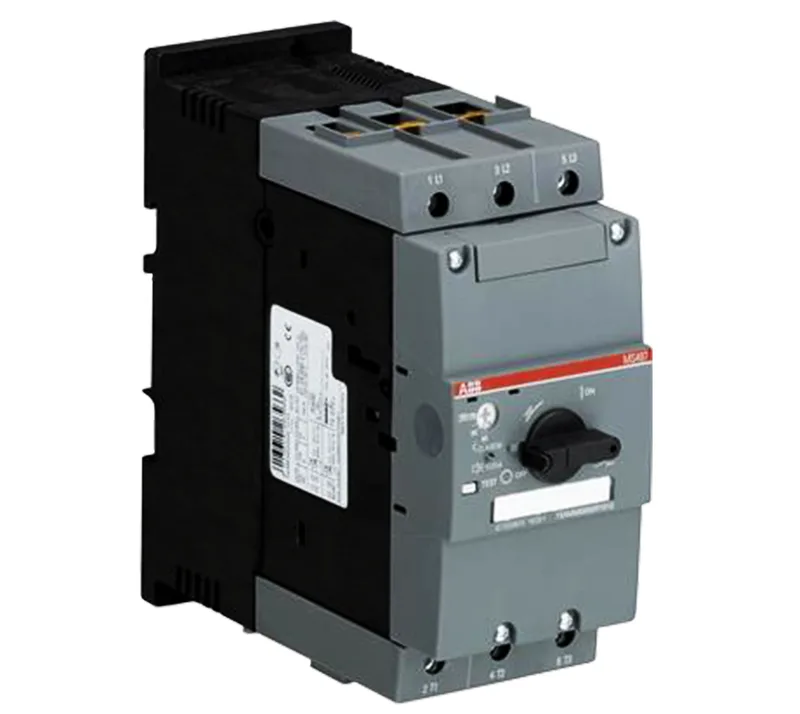

The ABB 1SAM580000R1004 is a 3-pole manual motor protector with a rotary handle, set on the bench between 22 and 32 A by the panel builder before it leaves the shop. At 400 V three-phase it carries AC-3 motors up to 15 kW, with a rated operational current of 32 A and a conventional free-air thermal current of 32 A on the main circuit, which is the figure that actually decides what motor feeder it protects in service. Above that, the unit is rated for a main-circuit operational voltage of 690 V AC and an insulation voltage of 690 V, with a 6 kV impulse withstand on the main circuit, so it sits comfortably downstream of an MCC main bus rather than as a feeder at the line entry.
UL/CSA picture for North American cabinets
On the UL/CSA side the device is listed at 32 A with a maximum operating voltage of 600 V AC on the main circuit, and a 600 V AC general-use rating of 32 A — the cleanest figure for a control-builder doing a UL 508A panel. For three-phase motor loads the horsepower tables give 10 Hp at 200, 208 and 220 to 240 V AC, stepping to 25 Hp between 440 and 480 V AC and continuing through 550 to 600 V AC, which is what the wireman uses to size the feeder rather than the amperage.
Thermal budget and endurance on a cyclic load
Per-pole dissipation runs 3.2 to 6.7 W at the rated operating conditions, so when several protectors are grouped in a row the cabinet ventilation has to clear that local loss on top of the contactor stack next to it. Mechanical durability is 50000 cycles and electrical durability is 25000 cycles, which means on a high-cycling process the protective element — not the handle — will be the first thing to plan a service interval around.
Mounting, wiring and the wireman's bench work
The unit snaps onto a TH35-15 rail per IEC 60715 and is allowed in mounting positions 1 through 6, which removes the usual 'this side up only' fight during retrofits into a crowded back panel. Main-circuit terminations take 2.5 to 50 mm² stranded with a ferrule on the IEC side and 10-2/0 AWG stranded or 10-1/0 AWG on the UL/CSA side, tightened to 4 to 6 N·m (35 to 53 in·lb). The drive uses a 4 mm hex and the strip length is 17 mm on the main circuit. Ambient air temperature compensation is built in, and the device is rated for operation from -20 to +70 °C up to 2000 m altitude, so an unheated section of the cabinet near a kiln wall is still inside the envelope.
What the field tech sees during a fault
The rotary handle carries ON / OFF / TRIP indication, so a tripped protector is readable without a laptop or an auxiliary — that is the first thing the night-shift tech checks before pulling covers. Mechanical shock rating is 25g for an 11 ms pulse per IEC 60068-2-27, which covers placement near a stamper or a press without a separate shock-mount bracket.
Compliance trail for the declaration pack
RoHS status is documented as Following EU Directive 2011/65/EU under RoHS information reference 1SAD938506-0050, and the environmental information reference is 1SAA918004-2401, which is what feeds the tech file when the QA reviewer asks for the materials declaration. The instruction manual referenced with the device is 1SAM507001R1001, which is the document the wireman quotes on the test sheet rather than a generic ABB leaflet.
