ABB 1SAZ321401R1005

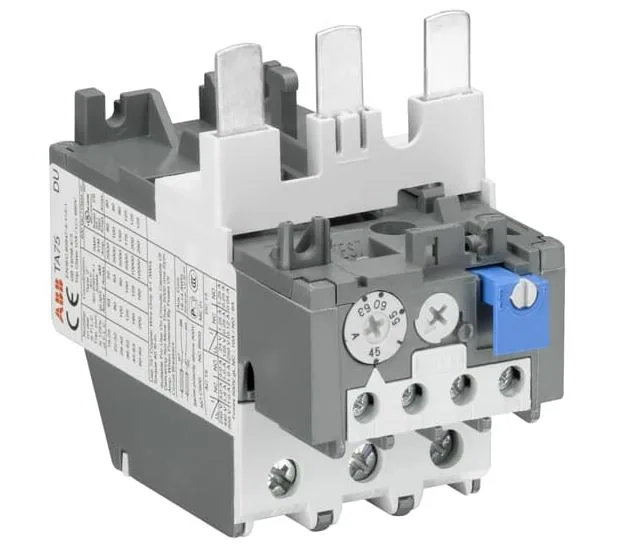

ABB 1SAZ321401R1005 Solid State Overload Relay, 45-63 A

MPN 1SAZ321401R1005

ABB 1SAZ321401R1005 solid state overload relay, 45-63 A current window, listed at 0.16 kgs under Circuit Breakers, Fuses & Protection › Relays › Solid State Overload Relays.

$124.46 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

1SAZ321401R1005 specifications
ParameterValue
Weight0.16 kgs

Product details

The 1SAZ321401R1005: Solid-state overload relays replace the bi-metallic element with a current transformer and electronic trip curve, which is what lets the same physical module cover a 45-63 A span in one part number instead of forcing a heater-coil change-out per motor. In the typical motor branch the relay sits downstream of the short-circuit protective device and upstream of the contactor — it does not break short-circuit current, it manages sustained overload and phase-loss events on the contactor it commands.

Reading the 45-63 A rating

The 45-63 A range listed on this part decides motor fit; setting is dialled inside that band per the relay face rather than requiring a heater coil per motor size. Set-point lives inside that window — the installer dials the exact motor FLA on the relay face, so one order code covers the band rather than forcing a unique heater coil per motor size.

Mounting and panel-side handling

Pass the motor conductors through the relay's integrated CT windows in the direction the marking indicates — reversing them defeats the current sensing on a solid-state unit in a way a bi-metallic strip would tolerate. Wire the output contacts into the contactor coil string per the same loop the upstream short-circuit protection already coordinates with; the relay's job is to command a stop, not to clear a fault.

Sourcing posture

1SAZ321401R1005 is specified into the BOM against this order code and quoted to order; an RFQ against this exact MPN is the cleanest path when the panel drawing already names it.

MPN
1SAZ321401R1005
