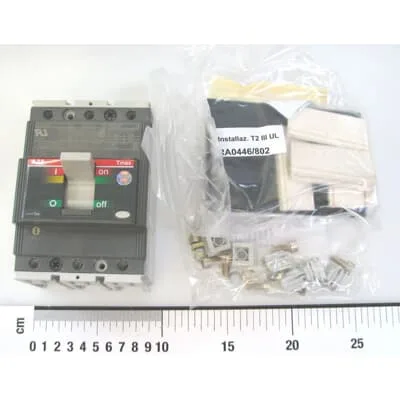

ABB 1SDA055172R1
MPN1SDA055172R1
Active
T2H 100 MCP-UL/CSA Iu=100-1200 3p F F
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Electrical
| Parameter | Value |
|---|---|
| Rated current (In) | 100 A |
| Number of poles | 3P |
| Rated operational voltage | 500 V DC |
| Rated uninterrupted current (Iu) | 100 A |
| Power loss | at Rated Operating Conditions per Pole 7,7 W |
Protection
| Parameter | Value |
|---|---|
| Release type | M |
Insulation & Dielectric
| Parameter | Value |
|---|---|
| Rated insulation voltage (Ui) | 800 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
Endurance
| Parameter | Value |
|---|---|
| Mechanical endurance | 25000 cycle |
| Electrical endurance | 8000 cycle |
Mechanical
| Parameter | Value |
|---|---|
| Terminal / connection type | Fixed Circuit-Breakers |
Approvals
| Parameter | Value |
|---|---|
| Standards | UL 489 |
Identification
| Parameter | Value |
|---|---|
| Sub-type | T2 |
MPN
1SDA055172R1
