ABB 1SDA075871R1 — Molded Case Circuit Breakers (MCCB)

ABB 1SDA075871R1 XT1 FC Cu Terminal Kit, 3P, UL489, 14-1/0 A

MPN1SDA075871R1
Active

ABB, Tmax XT1, front-connection terminal kit, 1SDA075871R1, 3-pole, 14-1/0 AWG, UL489, ATLAS.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

1SDA075871R1 — Ratings
ParameterValue
Number of poles3P
1SDA075871R1 — Specifications
ParameterValue
StandardsUL489

Product details

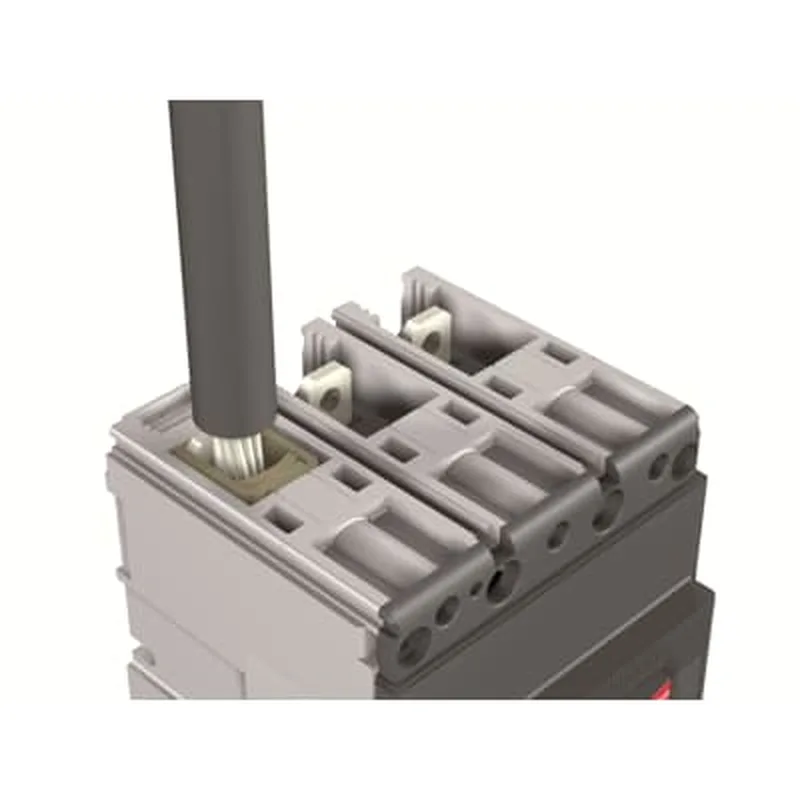

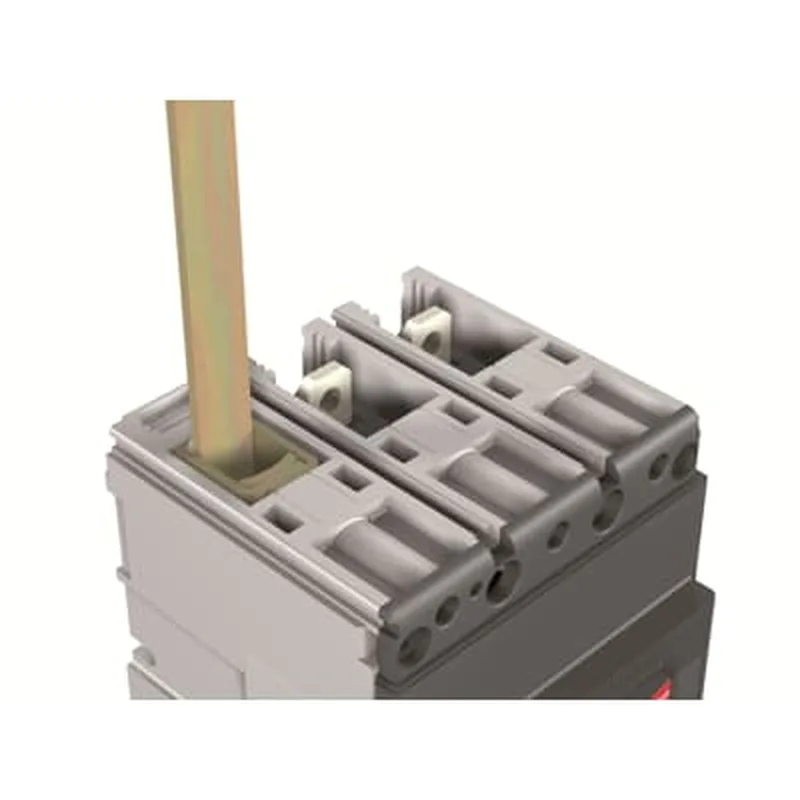

The ABB 1SDA075871R1 is a front-connection terminal kit for copper or aluminum cables, sized for the Tmax XT1 molded-case circuit breaker. It's a 3-pole set, six pieces, accepting 14 to 1/0 AWG conductors. UL489 listed, so it's certified for branch-circuit protection in North American panels.

What the UL489 Rating Means

UL 489 is the standard for molded-case circuit breakers and their accessories used as branch-circuit protective devices. A UL489-listed terminal kit means it's been tested and approved for use with a UL489-listed breaker in a panel — no additional field-evaluation paperwork for the inspector.

The kit is marked ATLAS, which is ABB's internal designation for the Tmax XT family's accessory platform. It's a loose or configurable item — you order the kit and install it on the breaker's front terminals during panel build. The front-connection design keeps the cable entry accessible for torque checks and thermal scanning on a live panel.

Frequently asked questions

Where can I buy 1SDA075871R1 and get a price?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm number.

What standards does 1SDA075871R1 comply with?

It is UL489 listed, which covers branch-circuit protection in North America. RoHS compliance follows EU Directive 2011/65/EU and Amendment 2015/863. TSCA and conflict-minerals reporting templates are available from ABB.

What does the ATLAS remark mean on this part?

ATLAS is ABB's internal accessory platform code for the Tmax XT family. It tells you this terminal kit is designed specifically for the XT1 frame, not a generic fit.

What is the North American order code for 1SDA075871R1?

The order code for the US and Canada market is KXT1CU-6PC. Use that for ordering through North American ABB channels or when cross-referencing in distributor catalogs.
