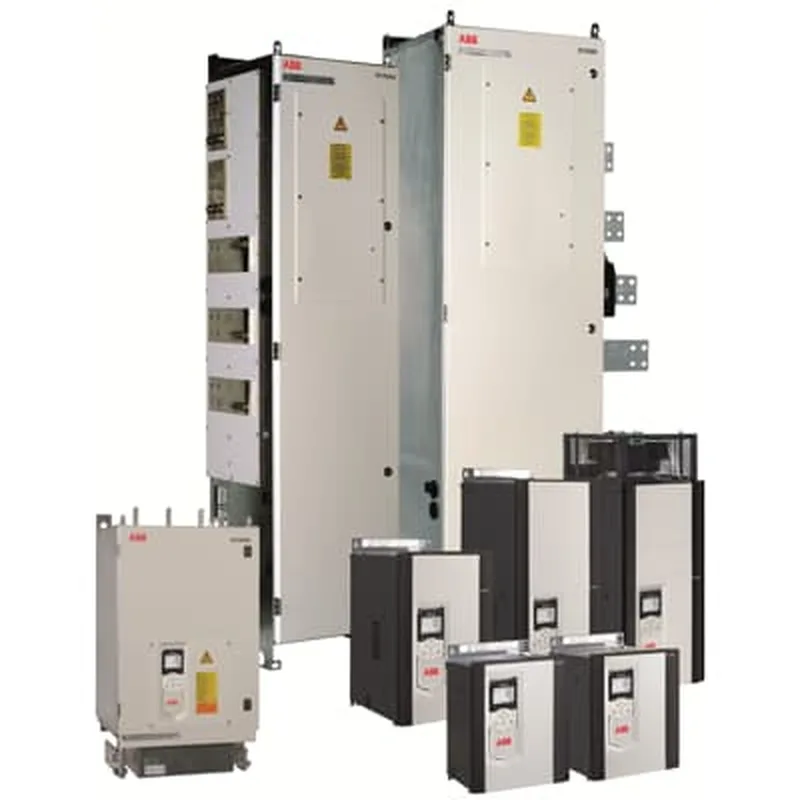

The 3ADT218566S0242: The 4000 A rating at 525 VAC defines the continuous DC output capability in a four-quadrant topology — it regenerates back to the line during braking, so the AC supply must handle reverse power flow. The H8 frame dictates the mounting hole pattern, bus bar spacing, and cooling duct interface; if your existing panel was laid out for an H7 or smaller frame, the mechanical swap isn't direct. At 82 dB(A) sound pressure, this unit is loud enough to require hearing protection within a few meters under full load — plan the room layout accordingly.
Analog I/O and control interface
Three analog inputs and two analog outputs are available on the control board. That's enough for a speed reference plus a torque or current limit signal, with one spare input for process feedback. The two outputs can map to actual speed and motor current for a local panel meter or PLC analog input. No fieldbus module is listed in the core spec, so if you need PROFINET or EtherNet/IP, budget for the optional communication card.
Environmental and protection
The converter operates in 5 to 95% relative humidity (non-condensing) and is designed for 50 Hz line frequency. The auxiliary terminals carry an IP00 rating per IEC 60529 and IEC 60947-1 — meaning no dust or water ingress protection at the field wiring points. In a typical panel build, the cabinet's own IP rating covers the whole assembly, but if you're running this in a clean but non-enclosed area, the terminal strip is exposed. Plan for a terminal cover or keep it inside a locked cabinet.
