130 A, 3-pole, 120 VAC coil — what the ratings mean for fit

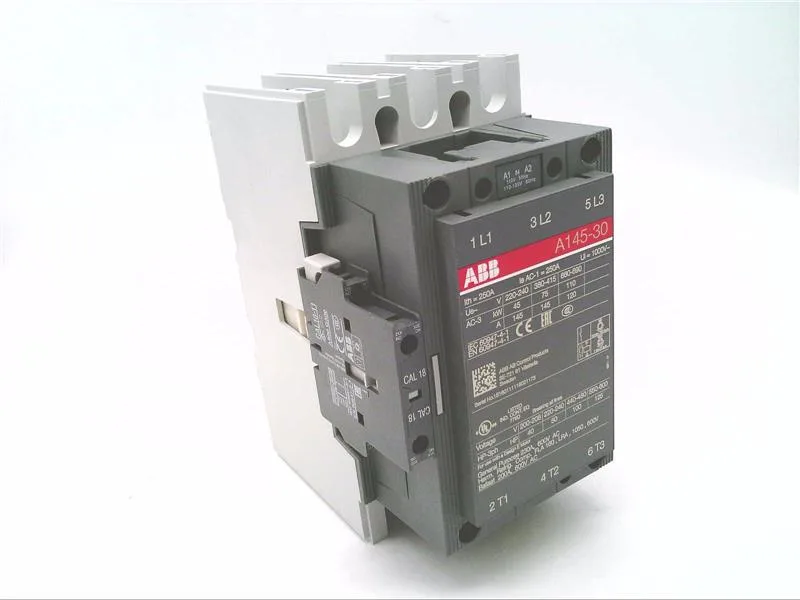

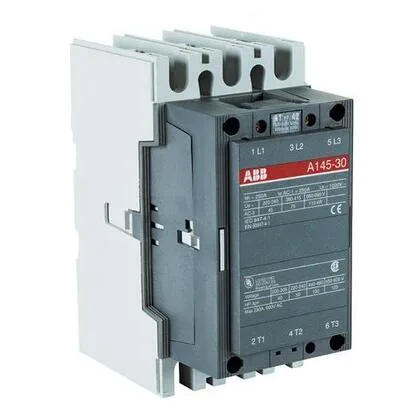

The ABB A145-30-11-84 is an A-Line series IEC contactor rated 130 A for motor switching and 230 A for general-purpose resistive loads at 600 VAC. The 130 A figure in AC-3 duty (motor starting) is the load-bearing spec — it tells you this contactor switches a 130 A motor on and off without welding the main poles, which is the real-world limit for a 3-pole contactor in a motor control center. The 120 VAC coil means the contactor pulls in on a standard 120 V control circuit — common in North American panels where the control transformer feeds 120 V to the relay logic. The built-in 1 N.O. + 1 N.C. auxiliary contact block provides local status feedback without an add-on module, saving a DIN rail position. The 3-pole configuration switches all three phases simultaneously — required for any three-phase motor load. The A145 frame size indicates the physical envelope and thermal capacity; it's the largest in the A-Line family before stepping to the next frame.
Lifecycle reality — EOL hot, sourced to order
For a BOM line that calls out A145-30-11-84, the replacement path is either a functional equivalent from the same A-Line family (same frame, same ratings, different auxiliary contact configuration) or a board-level redesign to a current ABB contactor series. A cross-reference check against the existing panel wiring and control voltage is recommended before committing.
