ABB S202-B10

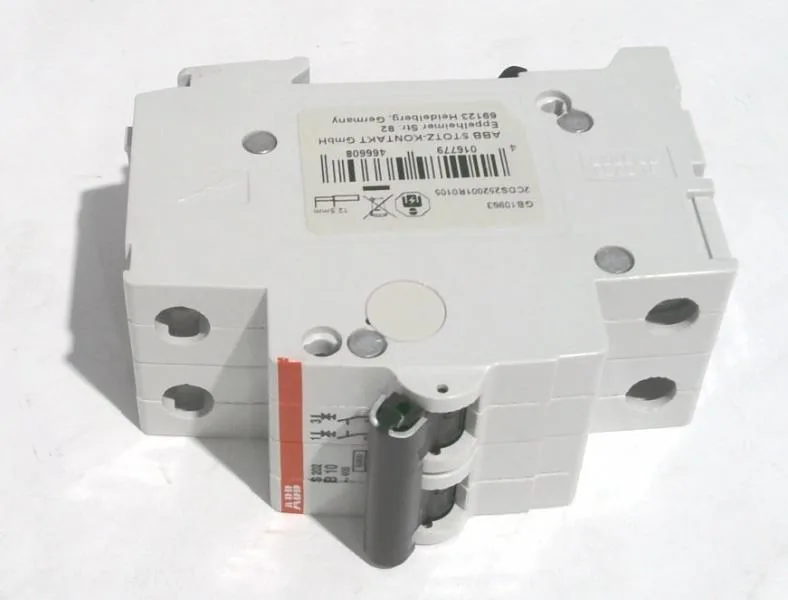

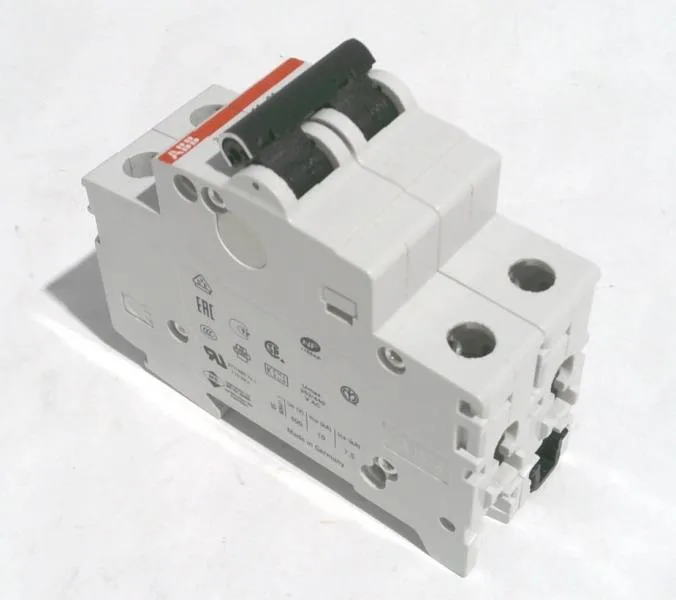

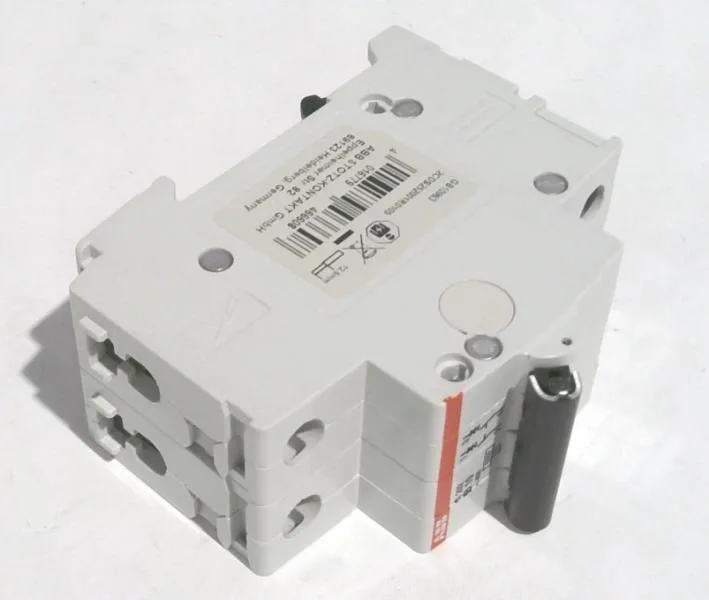

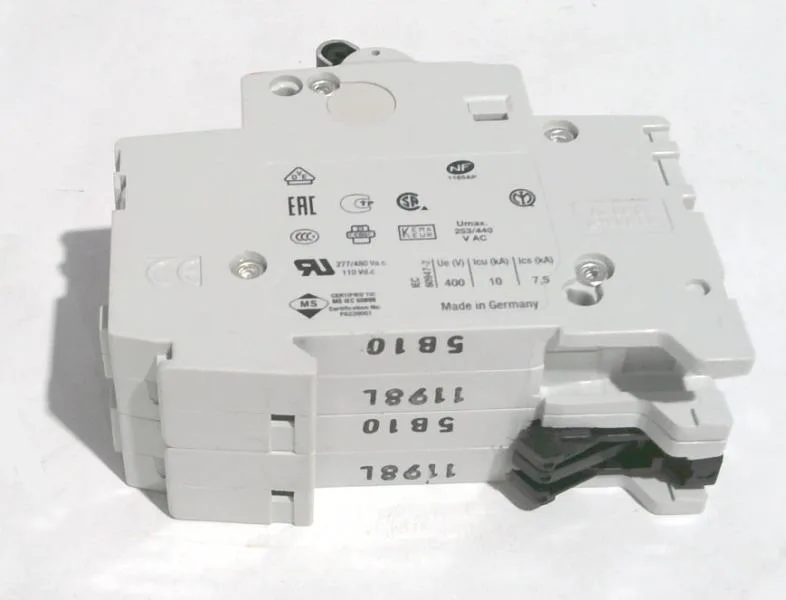

S202-B10 Miniature Circuit Breaker, 10A, 2-Pole, Curve B

MPN S202-B10

ABB S202-B10 miniature circuit breaker, 10 A, 2-pole, Trip Curve B, DIN rail mount, 277 VAC, 6 kA interrupting rating.

$40.09 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S202-B10 specifications
ParameterValue
Product typeTrip Curve B
Current10 A
Breaking capacity6 kA
Poles2
MountingDIN Rail

Product details

What this MCB is and where it fits

The ABB S202-B10 is a 2-pole miniature circuit breaker rated at 10 A with a Trip Curve B characteristic, meaning it trips at 3–5 times rated current — designed to protect resistive or lightly inductive loads like lighting circuits or control transformers where inrush is modest. It mounts on standard DIN rail inside a distribution board or control panel, and its 6 kA interrupting rating at 277 VAC is sized for branch-circuit fault clearing in commercial or light industrial panels.

What the ratings mean for fit

The 10 A rating is the continuous current the breaker carries without tripping. The B-curve characteristic (3–5× In) means magnetic trips happen between 30–50 A — a good match for circuits where the load doesn't slam the breaker on startup. The 2-pole version handles single-phase 277 VAC line-to-neutral or two legs of a 480Y/277 V system. The 6 kA interrupting capacity tells you this breaker can safely clear a fault up to that level without welding contacts or venting arc gas into the panel — check that your available fault current at the panelboard doesn't exceed this figure.

MPN
S202-B10
