Rated 250 A continuous — what that means for the panel
That 250 A figure is the thermal-magnetic trip rating — the breaker carries that current indefinitely at 40 °C ambient without nuisance tripping, and the magnetic short-time pickup clears bolted faults fast enough to keep downstream components out of their damage curves. On a 480 VAC distribution bus, this MCCB handles feeder or large motor branch circuits where the load current sits at or below 250 A.
65 kAIC at 600 V — interrupting capacity you can count on
Rated 65 kAIC at 600 VAC, this breaker interrupts prospective fault currents up to 65,000 A without external fuses or current-limiting reactors. That's a high-level SCCR for a 250 A frame — it means the breaker can be applied on utility-side transformers or large motor starters where available fault current is stiff. The 65 kAIC rating holds at 600 V, so on a 480 V system the margin only improves. No derating needed for most industrial service-entrance or distribution panel positions.

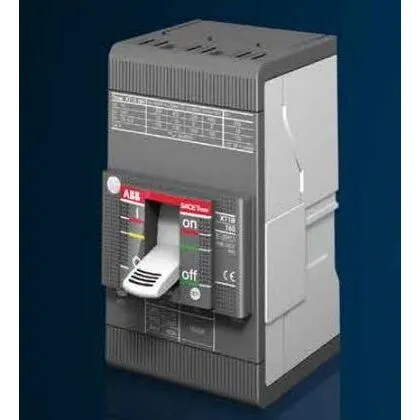

Panel mount — fits the cutout, wires up clean
Panel mount form factor — no DIN-rail adapter needed. The breaker bolts directly into the enclosure backplate with four screws. Line and load lugs accept copper or aluminum conductors sized for 250 A (typically 4/0 AWG to 300 kcmil range, depending on lug kit). Terminal torque values are stamped on the breaker nameplate. The rotary handle mechanism is standard on the XT4 frame; it extends through the panel door with a corresponding cutout template. Wires up clean because the lug wells are aligned and the arc-chamber vents are rearward — no gas blow directed at adjacent wiring.
