What the AHCPU500-RS2 brings to a control cabinet

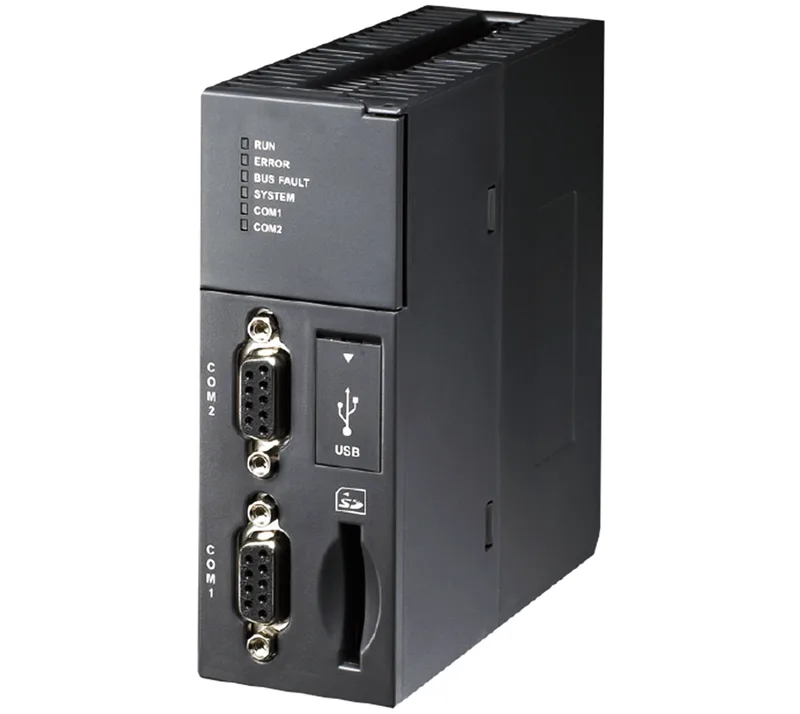

The AHCPU500-RS2 is the CPU module for the AH series programmable logic controller line, sized for a mid-range automation node. It handles up to 768 local I/O points and carries a program capacity of 32K steps (128 KB), which is enough for a multi-axis pick-and-place cell or a material-handling section with several conveyors and diverters. The 128 function blocks cover the standard IEC 61131-3 libraries — timers, counters, comparators, arithmetic — without needing an expansion card for the basic instruction set. Program execution runs at 0.1 μs per LD instruction, and a 1K-step scan completes in 0.3 ms. That scan rate keeps the logic response tight enough for high-speed packaging lines or sorting stations where the sensor-to-actuator delay needs to stay under a couple of milliseconds. The data register pool — 16K words for D, 16K for L, and 512K words for B — gives the control engineer room for recipe tables, alarm logs, and PID tuning parameters without squeezing into a tight memory map.
Panel fit and power budget
The module measures 110 x 40 x 103 mm (H x W x D) and draws 2 W from the backplane. That 40 mm width leaves space on the DIN rail for a power supply and a couple of I/O slices in a standard 400 mm cabinet. The 2 W internal consumption means the backplane power budget is barely touched — you can load several more modules on the same bus without worrying about the 24 VDC supply sagging. The AHCPU500-RS2 supports zero extension backplanes out of the box, so the local rack is self-contained. If the I/O count exceeds 768 points, the design needs a remote rack or a bus coupler — something to flag at the panel layout stage, not after the wiring is landed.
The estimated lead time runs 1 to 10 working days, which is typical for a current-production CPU module from this family.
