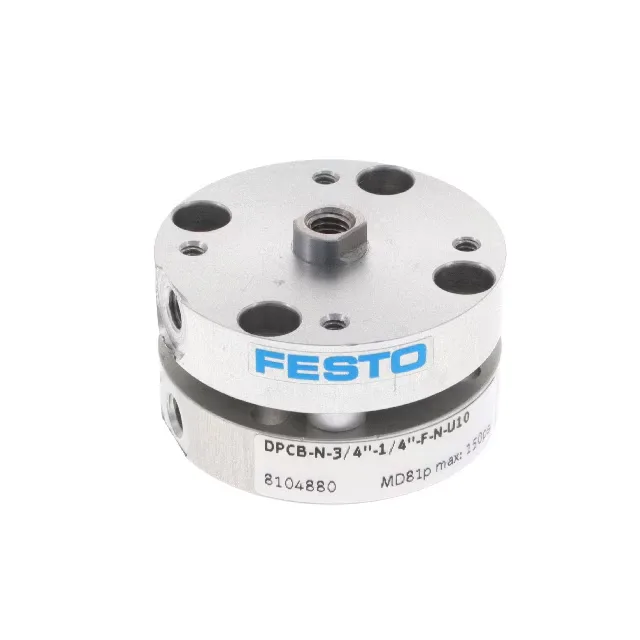

Festo DPCB-N-3/4"-1/4"-F-N-U10 — Pneumatic Cylinders & Actuators

Festo DPCB-N-3/4"-1/4"-F-N-U10

MPNDPCB-N-3/4"-1/4"-F-N-U10
Active

PANCAKE CYLINDER

$73.28Ref. price · indicative, final on quote
Festo DPCB-N-3/4"-1/4"-F-N-U10 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

DPCB-N-3/4"-1/4"-F-N-U10 — Identification
ParameterValue
SeriesDPCB
DPCB-N-3/4"-1/4"-F-N-U10 — Configuration
ParameterValue
OperationDouble Acting
TypeLinear Actuator
ConstructionCompact Cylinder
DPCB-N-3/4"-1/4"-F-N-U10 — Dimensions
ParameterValue
Stroke length0.250" (6.35mm)
DPCB-N-3/4"-1/4"-F-N-U10 — Pneumatic
ParameterValue
Operating pressure15 ~ 150 PSI (1 ~ 10.3 bar)
Connection method10-32 UNF
DPCB-N-3/4"-1/4"-F-N-U10 — Mechanical
ParameterValue
Shaft detailTapped 10-32 UNF
DPCB-N-3/4"-1/4"-F-N-U10 — Environmental
ParameterValue
Operating temperature-32°C~66°C
MPN
DPCB-N-3/4"-1/4"-F-N-U10
