Festo PUN-H-12X2-GN — Fittings & Tubing

Festo PUN-H-12X2-GN

MPNPUN-H-12X2-GN
Active

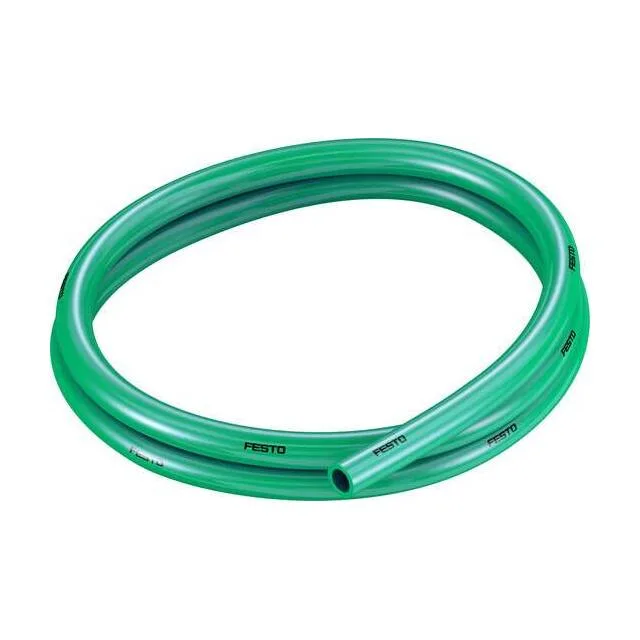

TUBING GREEN PLASTIC 12MM 50M

Festo PUN-H-12X2-GN datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

PUN-H-12X2-GN — Identification
ParameterValue
Fitting typeTubing
PUN-H-12X2-GN — Mechanical / Fit
ParameterValue
Outer diameter0.472" (12.00mm)
Inner diameter0.315" (8.00mm)
Minimum bend radius1.300" (33.00mm)
Bend radius (flow)2.441" (62.00mm)
PUN-H-12X2-GN — Performance
ParameterValue
Operating pressure range-14 ~ 145PSI (-1 ~ 10 bar)
Fluid typeCompressed Air, Water
PUN-H-12X2-GN — Material
ParameterValue
MaterialThermoplastic Polyurethane (TPE-U)
ColorGreen
PUN-H-12X2-GN — Environmental
ParameterValue
Operating temperature range-35°C~60°C
PUN-H-12X2-GN — Other specifications
ParameterValue
Length164.0' (50.0m)
MPN
PUN-H-12X2-GN
