Festo VZWM-L-M22C-G1-F4 — Solenoid & Directional Valves

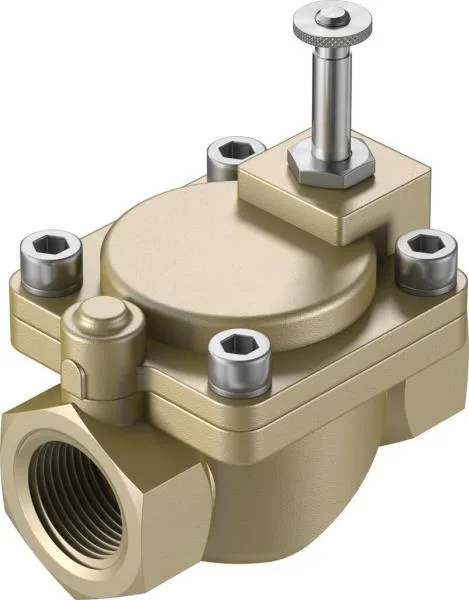

Festo VZWM-L-M22C-G1-F4

MPNVZWM-L-M22C-G1-F4

Solenoid Operated Valve 2/2 G1" 1MPa Air / Gas / Water G1" 50kPa... 1MPa

$178.60 – $260.12Ref. price · indicative, final on quote
Festo VZWM-L-M22C-G1-F4 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

VZWM-L-M22C-G1-F4 — Valve Function
ParameterValue
Valve configuration (ways/positions)2/2
VZWM-L-M22C-G1-F4 — Identification
ParameterValue
SeriesVZWM
VZWM-L-M22C-G1-F4 — Electrical
ParameterValue
Rated voltage24 VDC
Rated power6.8 W
Electrical terminationType A Plug
VZWM-L-M22C-G1-F4 — Ports & Connection
ParameterValue
Connection sizeG1"
VZWM-L-M22C-G1-F4 — Media & Pressure
ParameterValue
Media type (alt.)Air;Gas;Water
Operating pressure, min.50 kPa
Operating pressure, max.1 MPa
VZWM-L-M22C-G1-F4 — Mechanical
ParameterValue
Housing materialBrass
Length96 mm
Height107 mm
Width70 mm
VZWM-L-M22C-G1-F4 — Environmental
ParameterValue
Protection rating (IP, alt.)IP65
MPN
VZWM-L-M22C-G1-F4
