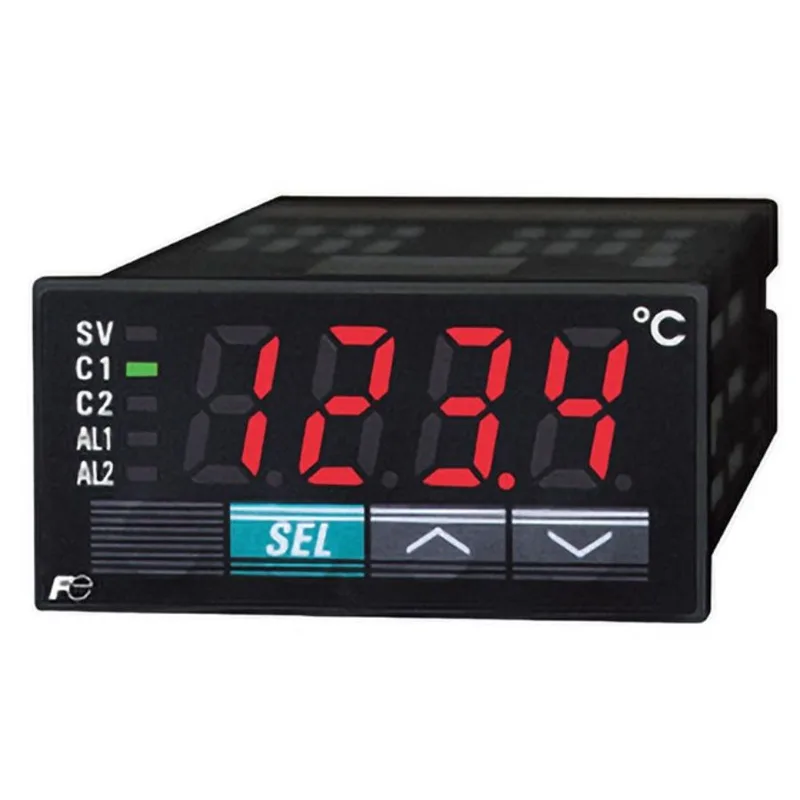

The Fuji Electric PXR3TAY2-1V061 is a temperature controller from the PXR3 series, with an LED display and three front-panel keys for setpoint and parameter entry. It accepts universal power: 100 V (-15%) to 240 V (+10%) AC, 50/60 Hz, or 24 V (±10%) AC/DC, drawing ≤ 8 VA at 220 V AC or 24 V AC/DC (PXR3 frame). The front panel is rated NEMA4X (IP66 equivalent) when mounted with the genuine packing — note that the waterproof feature is unavailable in close mounting of multiple units; the rear case is IP20. Input impedance for thermocouple and mV signals is ≥ 1 MΩ, current inputs use an external 250 Ω resistor, and voltage inputs see ≥ 450 kΩ.
Fuji Electric PXR3TAY2-1V061 Temperature Controller, LED 3-k
MPNPXR3TAY2-1V061
Fuji Electric PXR3 series temperature controller, type LED, 3 keys, order code PXR3TAY2-1V061, NEMA4X (IP66) front panel, universal 100-240 VAC or 24 VAC/DC supply.
$144.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | LED, 3 keys |
| Parameter | Value |
|---|---|
| Weight | 0.15 Kg |
| IP rating | Front waterproof structure: NEMA4X (IP66 equivalent)*When mounted on panel with our genuine packing. Waterprooffeature unavailable in close mounting of multiple units. Rear case: IP20 |
| Product type | Temperature Controller |
| Input impedance | Thermocouple, mV input: ≥ 1 MΩCurrent: 250 Ω (external resistor) Voltage: ≥ 450 kΩ |
| Power consumption | 100 V AC: ≤ 6 VA (PXR3), ≤ 8 VA (PXR4)220 V AC: ≤ 8 VA (PXR3), ≤ 10 VA (PXR4)24 V AC/DC: ≤ 8 VA (PXR3), ≤ 10 VA (PXR4) |
| Power supply voltage | 100 V (-15%) to 240 V (+10%) AC, 50/60 Hz, or 24 V (±10%) AC/DC |
| Insulation resistance | ≥ 20 MΩ (at 500 V DC) |
| Noise reduction ratio | Normal mode noise (50/60 Hz): ≥ 50 dBCommon mode noise (50/60 Hz): ≥ 140 dB |
Product details
Frequently asked questions
Where can I buy PXR3TAY2-1V061 and how do I get a price?
This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.
What is PXR3TAY2-1V061's listed type?
The listed type is LED, 3 keys — an LED display with three front-panel pushbuttons for operator interface.
What is the front-panel environmental rating?
The front waterproof structure is rated NEMA4X (IP66 equivalent) when mounted on a panel with the genuine packing. The waterproof feature is unavailable in close mounting of multiple units. The rear case is IP20.
