The PXR4TAY1-8V000-A is a DIN rail temperature controller from Fuji Electric's PXR4 series, designed for panel-mount integration in industrial process control. It accepts universal power: 100 V (-15%) to 240 V (+10%) AC, 50/60 Hz, or 24 V (±10%) AC/DC, so it drops into existing control cabinets without a separate power supply module. The input filter is settable from 0 to 900.0 seconds in 0.5-second steps (first-order lag), which means you can dampen noisy thermocouple or RTD signals on ovens, extruders, or packaging heat-seal bars without adding external signal conditioners. Input impedance is 1 MΩ or more for thermocouple, 450 kΩ or more for voltage, and 250 Ω (external resistor) for current — typical for direct connection to standard process sensors. Noise rejection is rated at 50 dB or more for normal mode (50/60 Hz) and 140 dB or more for common mode, so it holds stable readings in electrically noisy panels with VFDs or contactors nearby.

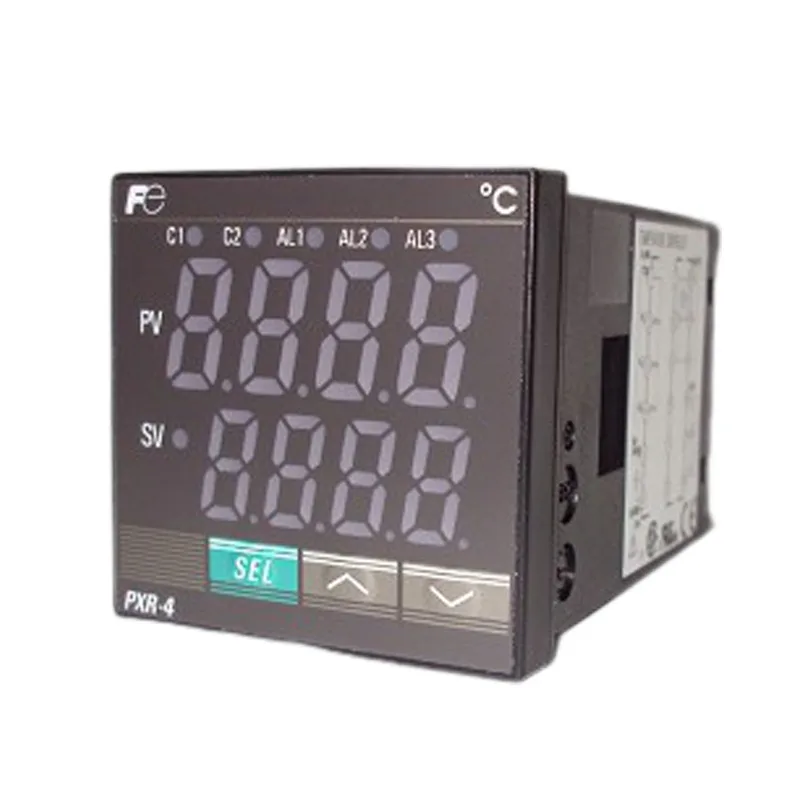

PXR4TAY1-8V000-A DIN Rail Temperature Controller, 100-240 VA
MPNPXR4TAY1-8V000-A
Fuji Electric PXR4 series DIN rail temperature controller, order code PXR4TAY1-8V000-A, 100-240 VAC / 24 VAC/DC supply, input filter 0 to 900.0 sec settable in 0.5 sec steps.
$264.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 0.2 kg |
| Input filter | 0 to 900.0 sec settable in 0.5 sec steps (first order lag filter) |
| Product type | DIN Rail Mounting Type |
| Input impedance | Thermocouple: 1 M? or more , Voltage: 450? k or more Current: 250? (external resistor) |
| Dielectric strength | Power supply-ground ... 1500 V AC for 1 min ,Power supply-others ... 1500 V AC for 1 min , Ground-relay output ... 1500 V AC for 1 min ,Ground-alarm output ... 1500 V AC for 1 min , Others ... 500 V AC for 1 min |
| Applicable standards | UL (UL873) CSA (C22.2 No.24-93) ... Not available on 72x72mm size CE mark (LVD : EN61010-1, EMC : EN61326-1) |
| Power supply voltage | 100 V (-15%) to 240 V (+10%) AC, 50/60 Hz or 24 V (±10%) AC 50/60 Hz, 24 V (±10%) DC |
| Set value correction | ±50% of measuring range |
| Insulation resistance | 20 M? or more (500 V DC) |
| Noise reduction ratio | Normal mode noise (50/60 Hz): 50 dB or more Common mode noise (50/60 Hz): 140 dB or more |
| Input value correction | ±10% of measuring range |
| Allowable wiring resistance | Resistance bulb: 10? or less per wire |
| Allowable signal source resistance | Thermocouple: 100? or less Voltage: 1k? or less |
| Reference junction compensation accuracy | ±1°C (at 23°C) |
Product details
Frequently asked questions
What is the input filter range on this controller?
The input filter is settable from 0 to 900.0 seconds in 0.5-second steps (first-order lag), useful for damping noisy process signals.
