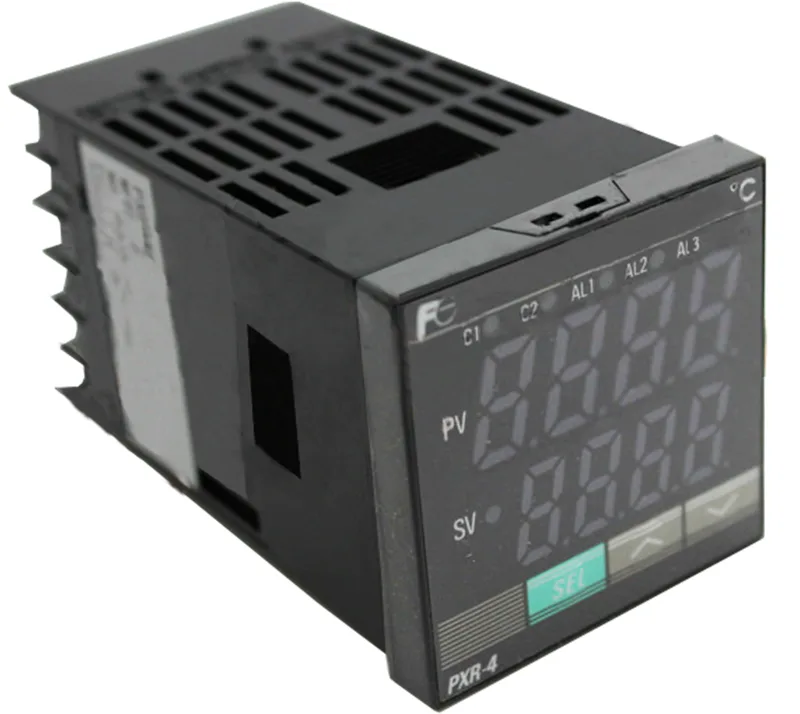

Fuji Electric PXR4TAY1-8W000-C
MPNPXR4TAY1-8W000-C
Digital Temperature Controller
$256.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Digital Temperature Controller |
| Power supply voltage | 100 V (-15%) to 240 V (+10%) AC, 50/60 Hz or 24 V (±10%) AC 50/60 Hz, 24 V (±10%) DC |
| Applicable standards | UL (UL873) CSA (C22.2 No.24-93) ... Not available on 72x72mm size CE mark (LVD : EN61010-1, EMC : EN61326-1) |
| Weight | 0.2 kg |
| Shipping weight | 1.5 Kg |
| PV display | 13mm |
| SV display | 11mm |
| Input filter | 0 to 900.0 sec settable in 0.5 sec steps (first order lag filter) |
| Manufacturer | Fuji Electric |
| Input impedance | Thermocouple: 1 M? or more Voltage: 450? k or more Current: 250? (external resistor) |
| Dielectric strength | Power Supply-Ground ... 1500 V AC for 1 min |
| Estimated lead time | Usually ships in 1-10 working days. |
All specifications+7 ▾
| Parameter | Value |
|---|---|
| Set value correction | ±50% of measuring range |
| Insulation resistance | 20 M? or more (500 V DC) |
| Noise reduction ratio | Normal mode noise (50/60 Hz): 50 dB or more Common mode noise (50/60 Hz): 140 dB or more |
| Input value correction | ±10% of measuring range |
| Allowable wiring resistance | Resistance bulb: 10? or less per wire |
| Allowable signal source resistance | Thermocouple: 100? or less Voltage: 1k? or less |
| Reference junction compensation accuracy | ±1°C (at 23°C) |
MPN
PXR4TAY1-8W000-C
