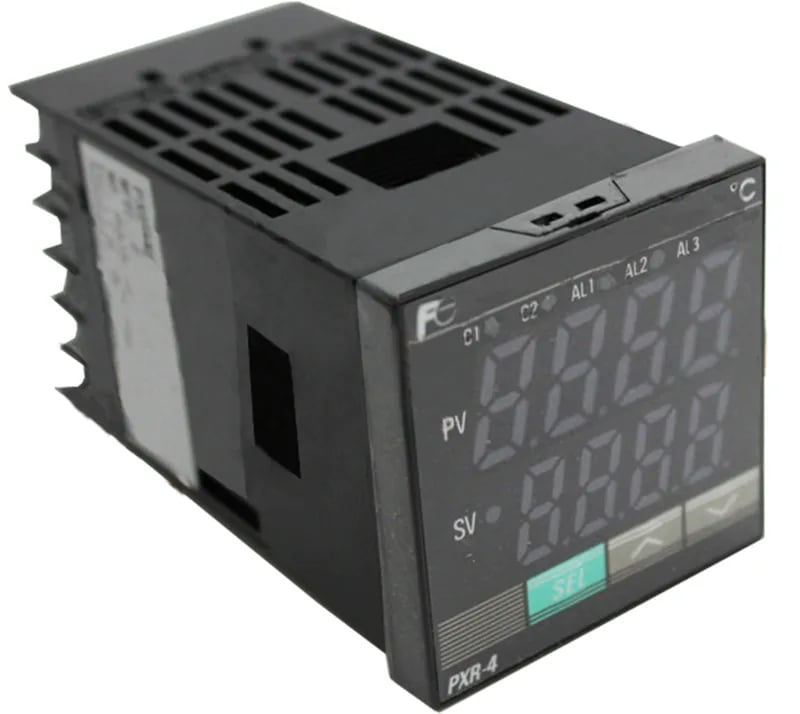

Fuji Electric PXR4TES1-1V000 — Process / Temperature Controllers

PXR4TES1-1V000 PXR4 Socket Type Micro Controller, 48x48mm, T

MPNPXR4TES1-1V000

Fuji Electric PXR4 Socket Type Micro Controller, order code PXR4TES1-1V000, thermocouple input [°C], 4-20 mA DC output, 48x48mm front panel, 100-240 VAC supply, socket type terminal form.

$183.00Ref. price · indicative, final on quote
Fuji Electric PXR4TES1-1V000 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Specifications

PXR4TES1-1V000 — Specifications
ParameterValue
Socket0 = None
Input typeT = Thermocouple [°C]
Product typePXR4 Socket Type Micro Controller
Revision code1
Terminal formS = Socket type
Control output 1E = 4 to 20mA DC Output
Front controller4 = 48×48mm
Flont and case colour0 = Black
Optional specifications1 = Alarm (1pc)
Instruction manuals, power supply voltageV = English, 100 to 240V AC

Product details

The PXR4TES1-1V000 is a Fuji Electric PXR4 socket-type micro controller built for panel-mount temperature control. It accepts a thermocouple input (type T, in °C) and drives a 4-20 mA DC control output — the loop-powered signal that most VFDs and valve actuators expect, so you can skip a signal conditioner on the panel backplane.

The 48×48 mm front panel (DIN 43700) fits the standard cutout for 1/16 DIN controllers — no rework if you're swapping into an existing panel hole. The socket-type terminal form means the controller body plugs into a base; you can pull the electronics without disturbing the field wiring, which saves time when a line-down swap needs to happen fast. Power supply is 100-240 VAC, covering the common plant voltages across North America, Europe, and Asia without a separate transformer. The instruction manual ships in English. One alarm output is included as standard — enough for a high/low trip on a process loop.

Frequently asked questions

What input type does PXR4TES1-1V000 support?

It accepts a thermocouple input, type T, with readings in °C — standard for temperature sensing in ovens, kilns, and process heaters.

What control output does PXR4TES1-1V000 provide?

It delivers a 4-20 mA DC output, the analog loop signal used to drive variable-speed drives, I-to-P converters, and valve positioners.

What is the front panel size of PXR4TES1-1V000?

The front controller is 48×48 mm, the standard 1/16 DIN form factor that fits a 45×45 mm panel cutout.

Where can I buy PXR4TES1-1V000 and get current pricing?

The part is sourced and quoted to order against an RFQ through independent distribution. Submit a request for availability and current pricing — confirmed at quote time, not a published list price.

MPN
PXR4TES1-1V000
