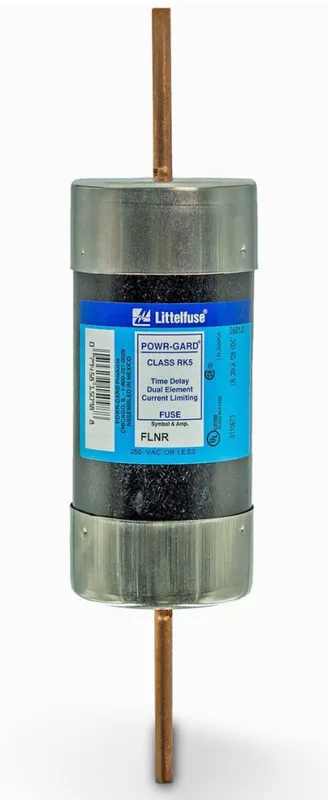

Littelfuse FLNR.500
MPNFLNR.500
.500A, 250VAC/125VDC, Class RK5 Time Delay Fuse|500 Amp Fuse, Rejection, Brand or Series: Class RK5, Interrupting Rating: 200000 Amp VAC RMS Symmetrical, 20000 Amp VDC, Terminal Type: Cartridge, Rejection, Dimensions: 9/16 Diameter x 2 Length Inch, Voltage Rating: 250 VAC/125 VDC, Features: Time Delay, Dual Element
$14.90Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FLN |
| Enclosure_material | Fiberglass |
| Mounting | Cartridge |
| Standards | California Proposition 65 |
| Length | 2 |
| Body style | Blade |
| Frame_size | 10-3/8 in L x 2-19/32 in dia |
| Fuse_class | RK5 |
| Fuse_speed | Time Delay |
| Diameter | 9/16 in |
| Has_element | Dual |
| Product type | General Purpose |
All specifications
| Parameter | Value |
|---|---|
| Breaking cap | 200 |
| Current | 0.5 |
| Supply voltage | 250 |
| Visual_indication | Nonindicating |
| Voltage | 250 |
| Breaking cap icu | 200 |
| Fits fuse block style | Rejection |
| Special_features_text | Time-Delay |
MPN
FLNR.500
