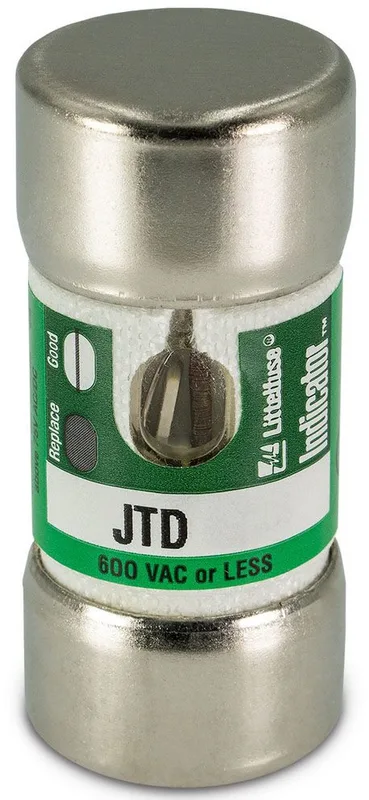

Littelfuse JTD060ID
MPNJTD060ID
Fuse, 60A, 600VAC, Class J Time Delay|60 Amp Fuse, Time Delay, Brand or Series: Class J, Indicator, Interrupting Rating: 200000 Amp AC RMS Symmetrical, Terminal Type: Cartridge, Dimensions: 1 1/16 Diameter x 2 3/8 Length Inch, Voltage Rating: 600 VAC, Material: Stone Sand and Granular Quartz Filler, Features: Time Delay Dual Element, Visual Indicator
$42.55 – $44.88Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Class J |
| Standard | Standard 248-8 UL Listed/CSA |
| Category | Current Limiting Fuses |
| Sub brand | POWR-GARD JTD Series |
| Application | Motor Control Centers |
| Manufacturer | Littelfuse, Inc. |
| Sub-Category | UL Power Fuse |
| Special features | Time-Delay |
| Manufacturer brand | Littelfuse, Inc. |
| Product description | Littelfuse JTD060ID Indicator Time Delay Fuse |
| Full technical description | Indicating, Class J Type; 2-3/8 Inch; UL 248-8, CSA, CE Approval; 600 Volt AC, 300 Volt DC Voltage Rating; 1-1/16 Inch Diameter; 200 Kiloamp Symmetrical (AC), 20 Kiloamp (DC) Interrupting Rating; 60 Amp Current Rating; Ferrule Terminal Type; Time Delay, Indicating Characteristics; Powr-Gard [R], Indicator [R], Powr-Pro [R] Brand; Application Fused Combination Motor Controller to Provide IEC Type II (No Damage) Motor Branch-Circuit Short-Circuit and Ground Fault Protection, Motor Control Center Transformer Protection, Protection For UL Listed Series Rated Molded Case Circuit Breaker Panel, General Purpose Circuit-Main, Feeder and Branch Circuit; JTD_ID Model |
| Proposition 65 warning | WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. |
MPN
JTD060ID
