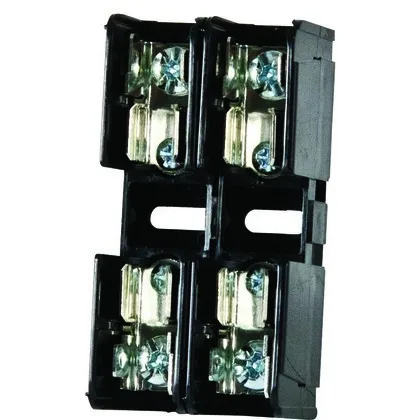

Littelfuse L60030M-2PQ
MPNL60030M-2PQ
30A, 2P, 600V, Midget Series Fuse Holder|Fuse Block, Midget, 2 Pole, 30 Amp, 600V AC, Terminal Type: Pressure Plate with Quick Connect, Max Current: 200000 Amp, Max Wire Size: #10 Copper
$11.84Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Connector type | Pressure Plate |
| Fits fuse type | Midget |
| Voltage rating | 600V AC/DC |
| Poles | 2 |
| Mounting style | Bolt-Down |
| Wire AWG | 14 to 10 AWG |
| Width | 1.53 in |
| Height | 1.25 in |
| Body material | Thermoplastic |
| Standards | CSA Certified; RoHS; UL Listed |
| Fuse UL class | Midget |
| Brand | LITTELFUSE |
All specifications
| Parameter | Value |
|---|---|
| Length | 3 in |
| Features | Clip Design Reduces Resistant and Heat; Spacing Saving Design |
| Amp range | 0 to 30 A |
| For fuse size | 1-1/2 in L x 13/32 in dia |
| Fuse block style | Nonrejection |
| Fuse block design | Open |
| Visual indication | Nonindicating |
| Spring reinforced clip | No |
MPN
L60030M-2PQ
