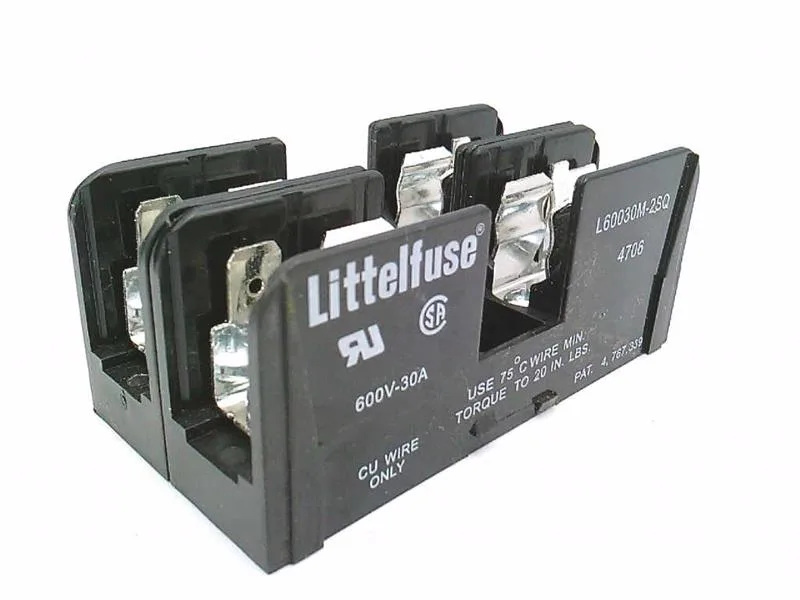

Littelfuse L60030M-2SQ
MPNL60030M-2SQ
Fuse Block, 30A, 2P, 600V, Midget Series, Screw QC Terminals|Fuse Block, Midget, 2 Pole, 30 Amp, 600V AC, Terminal Type: Screw, Quick Connect Terminal, Max Current: 200000 Amp, Max Wire Size: #10 Copper
$13.54Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Class CC Fuseblock |
| Parameter | Value |
|---|---|
| Standard | UL Listed CSA |
| Sub brand | L600 Fuseblock |
| Sub-Category | Midget Fuse Block |
| Special features | DIN Rail Mounting |
| Product description | Littelfuse L60030M-2SQ 2P Fuse Block |
| Full technical description | Standard Type; 14 to 10 AWG Solid/Stranded (Copper) Wire Size; UL, CSA Approval; Thermoplastic Body Material; 2 Pole(S); Screw With Quick Connect Terminal Type; Midget Fuse Type; 30 Amp Fuse Current Rating; 600 Volt AC Fuse Voltage Rating; Tin Plated Copper Alloy Clip Type; Powr-Gard [R] Brand; RoHS Compliant; Lead-Free; Mounting Type Bolt-in; L600M Model |
MPN
L60030M-2SQ
