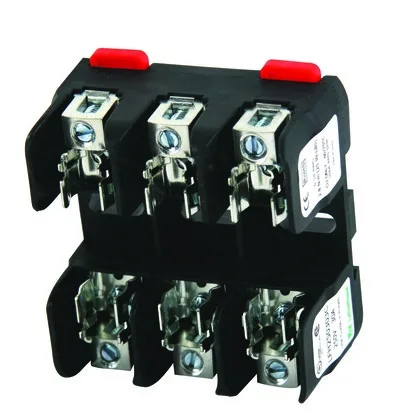

Littelfuse LFH25030-3C
MPNLFH25030-3C
FH Class H Fuse Block 3 Pole|30A, 250V, Fuse Holder Class H Fuse Block 3 Pole
$34.49 – $95.53Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Class H Fuseblock |
| Parameter | Value |
|---|---|
| Standard | UL Listed CSA Recognized |
| Sub brand | LF Series Fuseblock |
| Sub-Category | UL Power Fuse Block |
| Prop 65 warning | WARNING_CANCER_AND_REPRODUCTIVE_HARM_WWW.P65WARNINGS.CA.GOV |
| Special features | Universal mounting holes |
| Product description | Littelfuse LFH25030-3C 30A 250V Fuse Block |
| Full technical description | Barrier Type; 14 to 6 AWG Solid/Stranded (Copper) Wire Size; UL, CSA Approval; 3 Pole(S); Box Lug Terminal Type; Class H, Class K5 Fuse Type; 30 Ampere Fuse Current Rating; 250 V Fuse Voltage Rating; Spring Reinforced Clip Type; Powr-Gard [R] Brand; Lead Free; RoHS Compliant; Interrupting Rating 10000 Ampere (Symmetrical); Overall Dimension 2.94 Inch W X 1.58 Inch D X 3.01 Inch H; LFH Model |
| Proposition 65 warning | WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. |
MPN
LFH25030-3C
