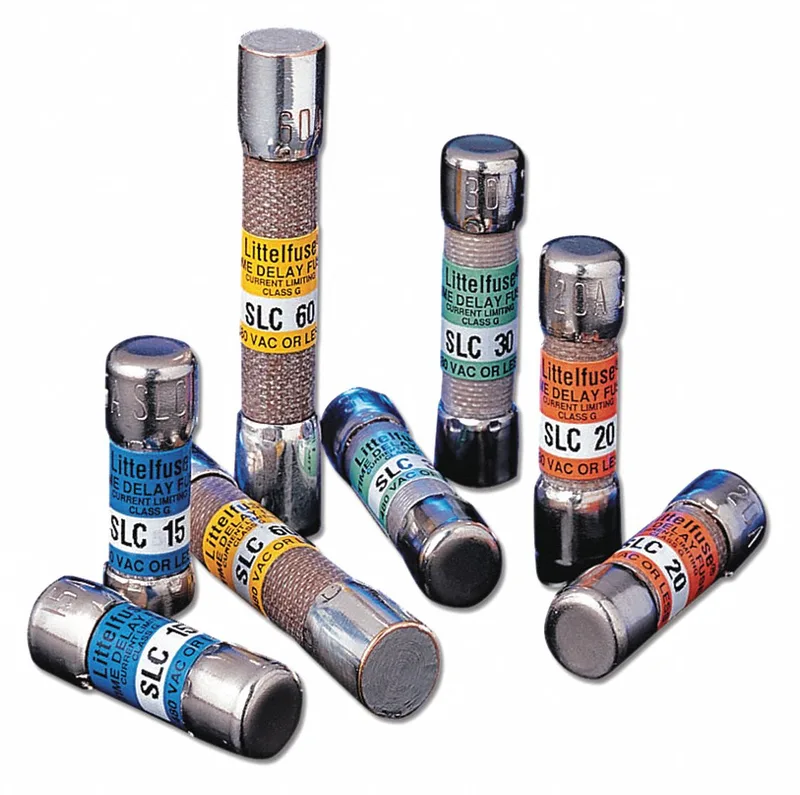

Littelfuse SLC045
MPNSLC045
Fuse, Ul Class G Medium Time Lag|Fuses, Time Delay, Brand or Series: Class G, Current Rating: 45 Amp, Interrupting Rating: 100000 Amp AC RMS Symmetrical, Terminal Type: Cartridge, Dimensions:13/32 Diameter X 2 1/4 Length Inch, Voltage Rating: 480 VAC, Features: Medium Time Delay
$13.12Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SLC |
| Equivalent series | AG, SC, SLC |
| Equivalent brand and series | Bussmann SC; Littelfuse SLC; Mersen AG |
| Compatible fuse block series | GFB |
| AC voltage rating | 480V AC |
| DC voltage rating | 170V DC |
| Body material | Melamine |
| Standards | CE; CSA Certified; QPL-W-F-1814; RoHS; UL 248-5 Class G; UL Listed |
| Amps | 45 A |
| Brand | LITTELFUSE |
| Class | G |
| Speed | Time Delay |
All specifications
| Parameter | Value |
|---|---|
| Length | 2-1/4 in |
| Element | Single |
| Diameter | 13/32 in |
| Fuse size | 2-1/4 in L x 13/32 in dia |
| Body style | Cylindrical |
| Interrupt rating | 100kA at 480V AC; 10kA at 170V DC |
| Visual indication | Nonindicating |
| Fits fuse block style | Rejection |
MPN
SLC045
