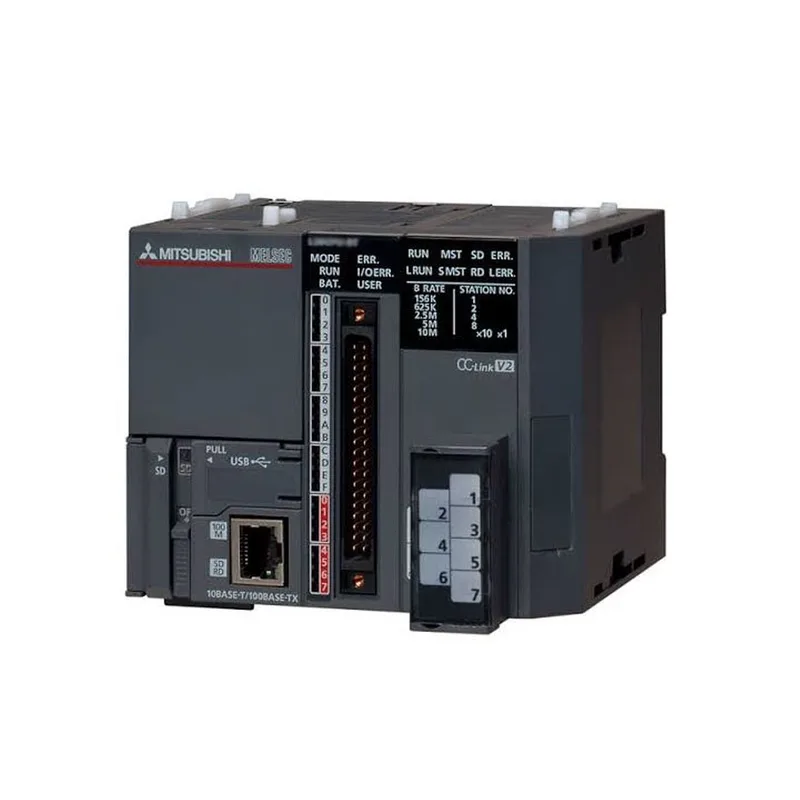

Mitsubishi Electric L26CPU-BT-CM

Mitsubishi L26CPU-BT-CM CPU Module, Mature Lifecycle, 128 St

MPN L26CPU-BT-CM

Mitsubishi L26CPU-BT-CM, CPU Module, Standard RAM 128 steps (512 bytes), Standard ROM 512 steps (2048 bytes), Program memory 1 step (4 bytes), File register 384K, Mature lifecycle.

$1,021.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

L26CPU-BT-CM specifications
ParameterValue
Product typeCPU Module

Product details

The Mitsubishi L26CPU-BT-CM is a CPU module built for small automation tasks where program space is tight. Standard RAM runs 128 steps (512 bytes) and Standard ROM 512 steps (2048 bytes). Program memory is organized in 1-step (4-byte) increments, so ladder logic must stay compact. File register availability is 384K, and file size can be set per memory area up to 512K points — enough for recipe storage or a modest lookup table, but the program footprint is the real limiter.

Memory management

Program memory is 1 step (4 bytes), meaning each instruction occupies exactly one step. Standard RAM and ROM are fixed at 128 and 512 steps respectively; no expansion is documented. The file register (384K) and file size setting (up to 512K points) offer external data storage via batch transfers. If your application needs more than 128 steps of active work RAM, this CPU will need to page data in and out of the file register — something to verify in the toolchain before committing the BOM.

That means the part is still orderable and not flagged for discontinuation, but new design-in recommendations typically shift to a current-generation CPU. No firmware update mechanism is documented in the base spec — treat the binary as fixed. Estimated lead time runs 1–10 working days, so it ships on a normal sourcing cycle. Submit an RFQ to confirm availability for your line.

MPN
L26CPU-BT-CM
