What it is and where it lands in the panel

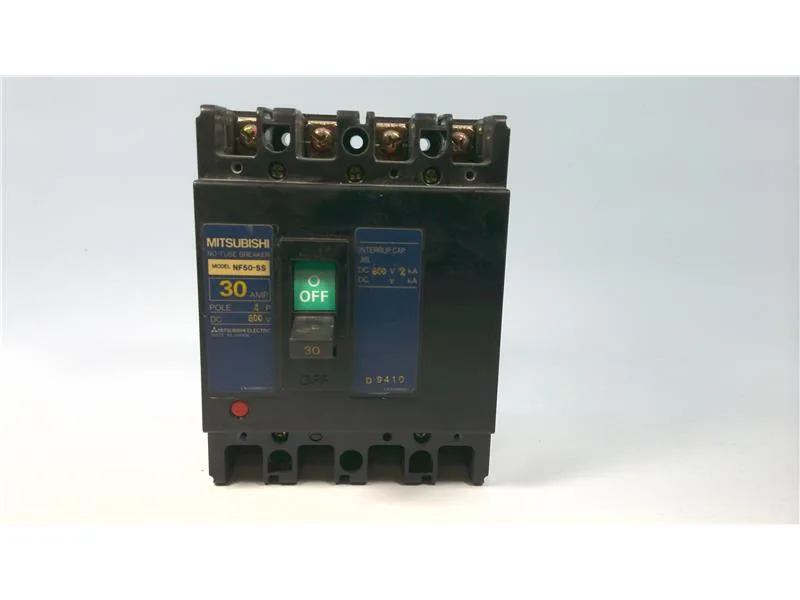

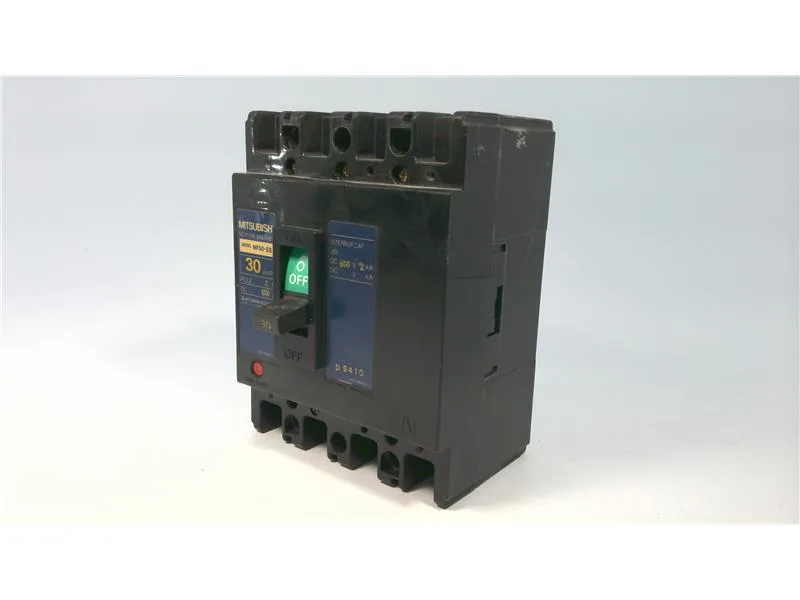

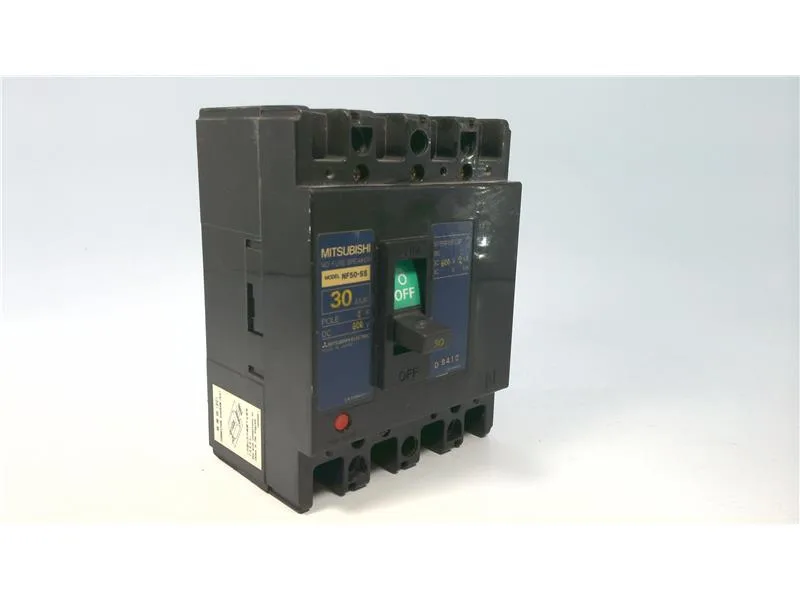

The Mitsubishi NF50-SS-4P-30A is a 4-pole molded case circuit breaker in the NF50 frame, listed at 30 A across four poles for branch or feeder protection in a control or distribution panel. It sits in the broader Circuit Breakers, Fuses & Protection family — specifically under Molded Case Circuit Breakers, so the buyer is treating it as a compact, front-panel-mount protection device rather than a DIN-rail miniature breaker.
Reading the ratings for fit
The two selection numbers the BOM line gets pinned to are the 4-pole count and the 30 A frame rating — the part is specced for a four-wire circuit (three phases + neutral, or a 4-wire DC/control scheme) and a continuous current ceiling of 30 A; downstream cable and contactor gear must be sized to match, not the other way round. The NF50-SS-4P-30A is built as a molded case format, so installation is panel cutout and bus-bar termination, not rail clip. Confirm the cubicle cutout matches the NF50 frame footprint before specifying — this device is not a miniature breaker and does not share that mounting pattern.
Spares and sourcing posture
For a critical-spare holding on installed gear, the right move is to quote it to order against an RFQ and hold at least one matched 4-pole unit in the storeroom — the 4P count means a partial-stocked spare of a different pole count does not drop in.
Integration checklist
Terminate to the panel's existing bus bar geometry for the NF50 frame; verify the breaking capacity and trip curve against the available fault current at the install point before energising, since those numbers are not in the row we hold and govern whether 30 A is the right number for that bus. Torque the line and load lugs to the manufacturer's spec for the conductor size landed — a 4-pole unit carries neutral current as well as phase, and a loose neutral termination is the failure mode that does not show up on a trip test.
