What it is and what it does

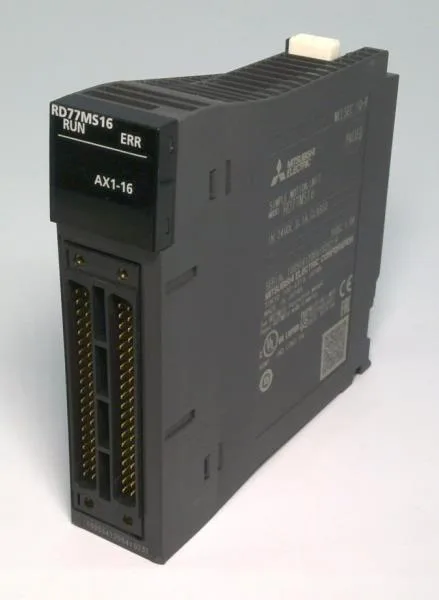

The Mitsubishi RD77MS16 is an iQ-R Series Motion Controller built for multi-axis servo systems. It communicates over SSCNET?/H, the high-speed motion network, which means it talks to servo drives on a dedicated fiber-optic loop — no shared-bus collisions, deterministic timing down to the sub-millisecond range. That SSCNET?/H compatibility is the first thing to check against your existing drive lineup; if your amps are SSCNET?/H-native, this controller drops right in. It handles 16 controlled axes independently or in coordinated moves, with 600 positioning data points stored per axis. That data set covers point-to-point moves, speed changes, and dwells — enough for a multi-station assembly cell or a gantry with several tool heads. The interpolation function supports 2-axis circular arcs and linear moves across 2, 3, or 4 axes, so contouring a path (say, a pick-and-place head tracing a rounded corner) is handled onboard without the PLC breaking it into segments. The single control unit accepts positioning in pulses, millimeters, inches, or degrees — you pick the unit that matches your machine's native coordinate system and the parameter set adapts. No scaling math in the PLC scan.
Where it fits in the panel
The RD77MS16 mounts in the iQ-R backplane alongside the power supply, CPU, and I/O modules. It occupies one slot in the base rack or extension rack — no separate power feed needed beyond the backplane bus. The SSCNET?/H fiber cables run from the module's optical connectors to each servo drive; keep the fiber bends above the minimum radius specified in the manual to avoid signal loss.
