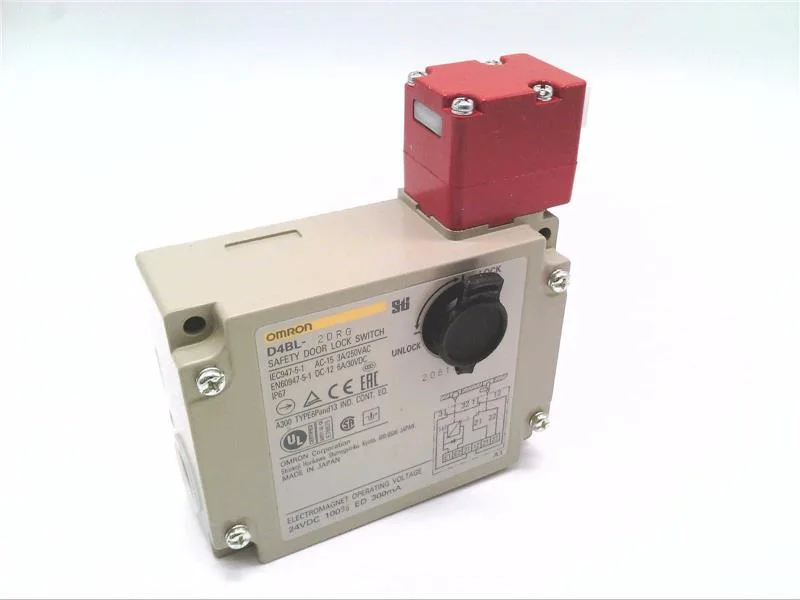

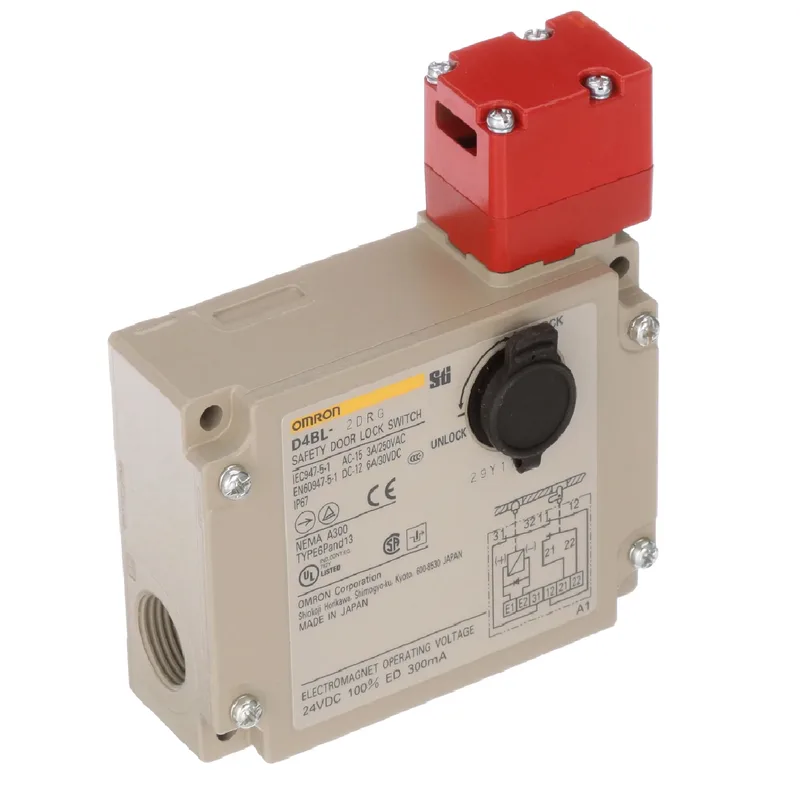

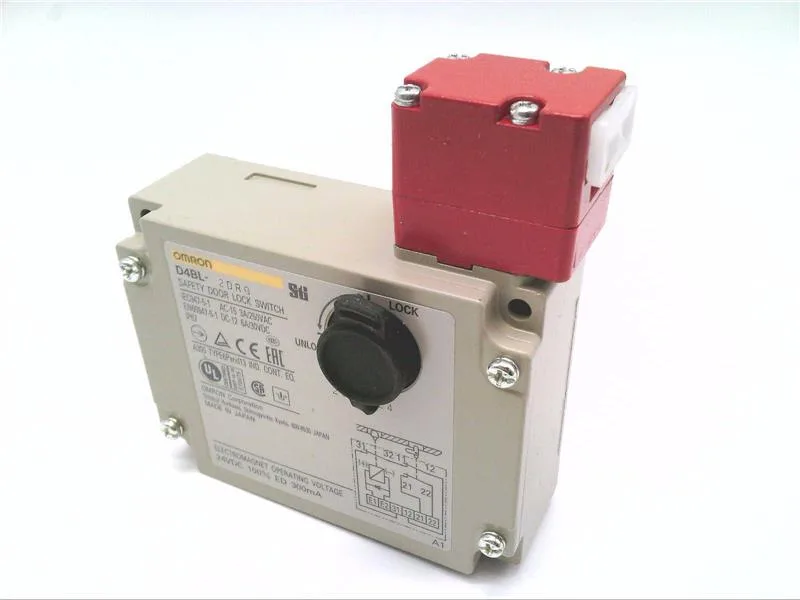

The D4BL-2DRG is a guard lock safety-door switch with a solenoid lock, rated IP67 per EN 60947-5-1. That IP67 rating means the switch body and the solenoid mechanism withstand full immersion — suitable for washdown zones on packaging lines or food processing equipment where high-pressure cleaning is routine. Low-level coded per EN ISO 14119, Type 2 interlock. This coding level means the actuator is a simple profile (not a coded magnetic or RFID pattern), so it's appropriate for applications where the risk assessment allows a lower manipulation deterrent — common on hinged guards with limited access. The solenoid lock (24 VDC) holds the guard closed until the control system de-energizes the solenoid, preventing door opening while the machine is in a hazardous state. Built-in switch configuration: 2NC (slow-action) for door open/closed detection plus 1NC (slow-action) for lock monitoring. The two NC channels for the door provide redundancy for the safety circuit; the separate NC lock-monitor channel lets the controller verify the solenoid is actually engaged before allowing machine restart.
Mechanical and electrical endurance — what 1,000,000 / 500,000 operations means on the line
Mechanical durability: 1,000,000 operations minimum. Electrical durability: 500,000 operations minimum at 10 A resistive load, 250 VAC. The electrical rating is the limiting factor in most power circuits — at lower currents (e.g., 24 VDC control signals) the electrical life extends well beyond the 500k figure. For a guard switch cycled once per machine cycle on a line running 10 cycles per minute, 500,000 operations translates to roughly 800 hours of continuous operation before the contacts need replacement consideration. Operating speed range: 0.05 to 0.5 m/s. This governs how fast the guard can be opened or closed without damaging the actuator mechanism. A door slamming shut at 0.6 m/s exceeds the spec — the actuator or switch may suffer premature wear. Maximum operating frequency: 30 operations per minute. This is a thermal limit on the solenoid and switch mechanism — exceeding it risks coil overheating or contact bounce.
Mounting and conduit — panel fit considerations
No indicator (blank type) — no built-in LED to confirm solenoid state. If visual status is needed, plan for an external pilot light or PLC feedback from the lock-monitor contact.
Typical lead time is 1 to 10 working days. For a BOM freeze or line-down replacement, this part is readily available without a last-time-buy window.
