Omron D4NL1CFAB — Limit Switches

Omron D4NL1CFAB Safety Door Lock Switch, 1NO/3NC, IP67, Scre

MPND4NL1CFAB

Omron D4NL series, safety door lock switch, D4NL1CFAB, 1NO/3NC contacts, IP67, screw terminal, 3 A AC / 270 mA DC switching.

$114.30 – $198.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

D4NL1CFAB specifications
ParameterValue
SeriesD4NL
Lock typeMechanical
TypeSafety-Door Switch
ActuationKey
Termination typeScrew Terminal
Switching voltage - AC240 V
Switching voltage - DC250 V
Switching current - AC3 A
Switching current - DC270 mA
Contact configuration1NO;3NC
Depth35.5 mm
Width88.5 mm
Height95 mm
IP ratingIP67
Service life - electric500000 Cycles
Number of head directions4
Service life - mechanical1 Million Cycles

Product details

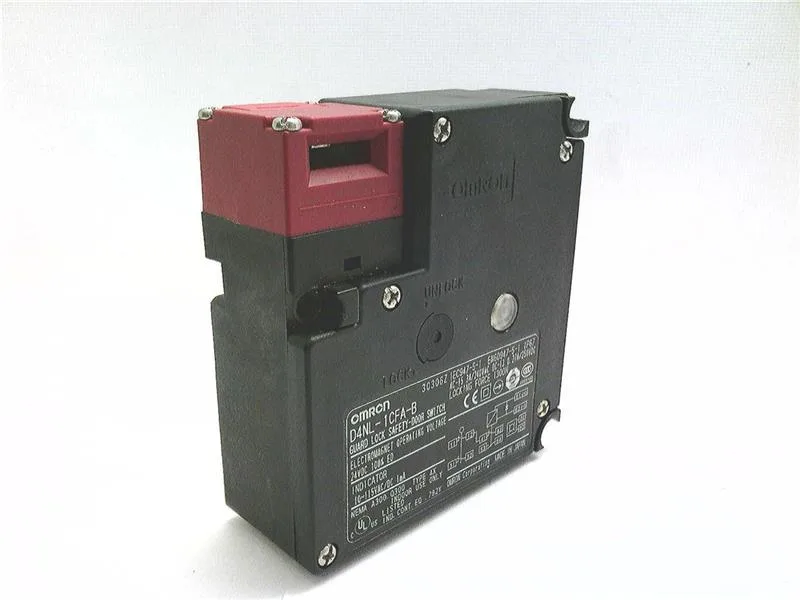

The Omron D4NL1CFAB is a safety-door lock switch with a mechanical lock and key-actuated head. It gives you 1 normally-open and 3 normally-closed contacts — that NC-heavy stack is what you wire into the safety circuit so the machine can't start with the guard open. Rated to switch 3 A at 240 V AC or 270 mA at 250 V DC, so it'll handle pilot-duty control loads and small solenoids without a contactor in between. The mechanical life is rated at 1 million cycles, electrical at 500,000 — that's a solid run for a guard-door switch in a production line.

The body measures 88.5 mm wide by 95 mm tall by 35.5 mm deep — it'll fit on a standard 40 mm profile rail or a flat panel bracket. Screw terminals mean you land your wires with a #2 Phillips; no special crimp tool needed on the line. IP67 rating means the housing and the key-entry seal hold up to washdown and hose spray. Out here in the grease, that's what keeps the contacts from corroding shut on a coolant-soaked press guard. The head rotates to four directions, so you can run the actuator in from the top, bottom, left, or right without buying a different part number.

Frequently asked questions

What are the key dimensions for panel layout?

The body is 88.5 mm wide, 95 mm tall, and 35.5 mm deep. Those dimensions fit a standard safety-switch footprint for panel mounting or 40 mm profile rail.

What switching ratings does it carry?

It switches 3 A at 240 V AC and 270 mA at 250 V DC. Use the AC rating for control transformers and pilot lights; the DC rating covers small solenoids and relay coils.

What is the contact configuration?

The switch has 1 normally-open and 3 normally-closed contacts. The three NC contacts are the safety-channel path; the single NO can be used for a status signal back to the PLC.
