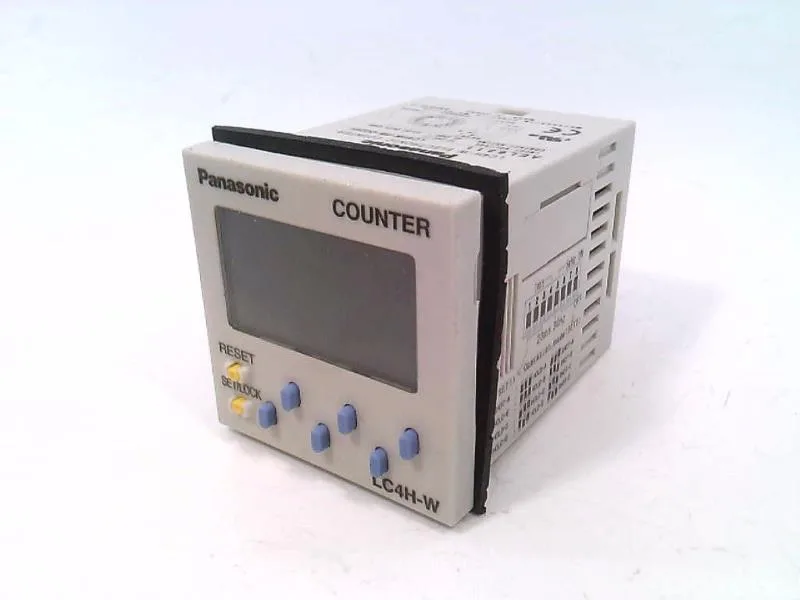

Panasonic Industrial LC4H-W-R6-DC24V
MPNLC4H-W-R6-DC24V
NRND
COUNTER LCD 6 CHAR 12-24V PNL MT
$111.00 – $214.67Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Batch, Tachometer, Timer, Totalizer |
| Series | LC4H |
| Input type | No Voltage |
| Output signal | Relay (2) |
| Display type | LCD - Dual Color Characters, Backlight |
| Mounting | Panel Mount |
| Supply voltage | 12 ~ 24VDC |
| IP rating | IP66 - Dust Tight, Water Resistant |
| Operating temperature | -10°C~55°C |
| Panel cutout | Square - 45.00mm x 45.00mm |
| Reset | External, Front Panel |
| Package | Bulk |
| Count rate | 30Hz, 5kHz |
| Operating mode | Up, Down, Command, Individual, Quadrature |
| Termination style | Plug In, 11 Pin (Octal) |
| Number of characters per row | 6, 6 |
MPN
LC4H-W-R6-DC24V
