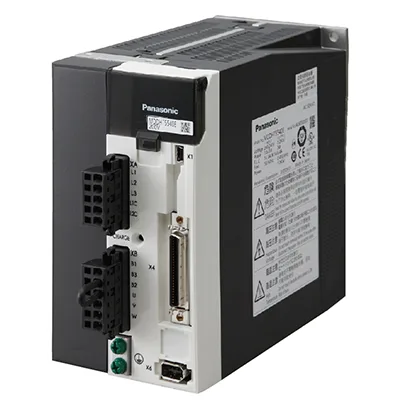

Panasonic Industrial MADHT1505E
MPNMADHT1505E
The Panasonic Servo Motor MADHT1505E is a high-performance AC servo motor from Panasonic's MINAS A5 series, known for its precision and reliability in industrial applications.
$198.00 – $350.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Position control type |
| Series | A5E series |
| Family name | MINAS A5 |
| I (F classification of type) | Analog/Pulse |
| Supply voltage | Single/3-phase 200 V |
| Current detector current rating | 5A |
| Power device max. current rating | 10A |
| Frequency response | 2.3 kHz |
| Shipping weight | 1 |
| Dimensions (D) (Unit | mm) : 130 |
| Dimensions (H) (Unit | mm) : 150 |
| Dimensions (W) (Unit | mm) : 40 |
All specifications
| Parameter | Value |
|---|---|
| Frame | A-Frame |
| Details | A5E series Position control type without the safety function |
| Mass | 0.8 |
| Environment | For more details, please refer to the instruction manual |
| Manufacturer | Panasonic |
| Control method | Position control |
| Safety function | without the safety function |
| Estimated lead time | Usually ships in 1 - 10 working days. |
MPN
MADHT1505E
