Schneider Electric 199AX14
MPN199AX14
Obsolete

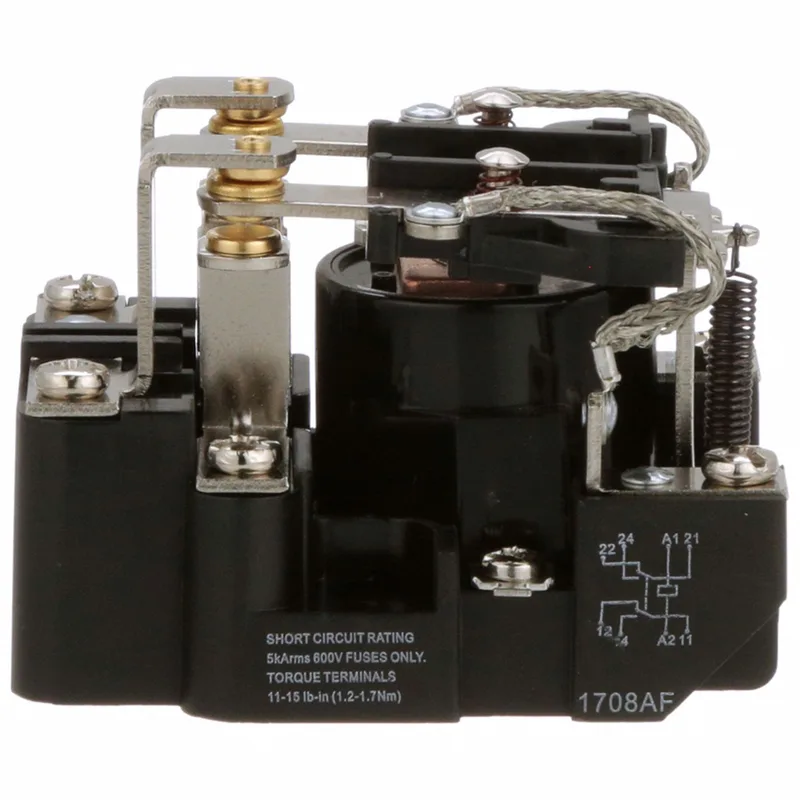

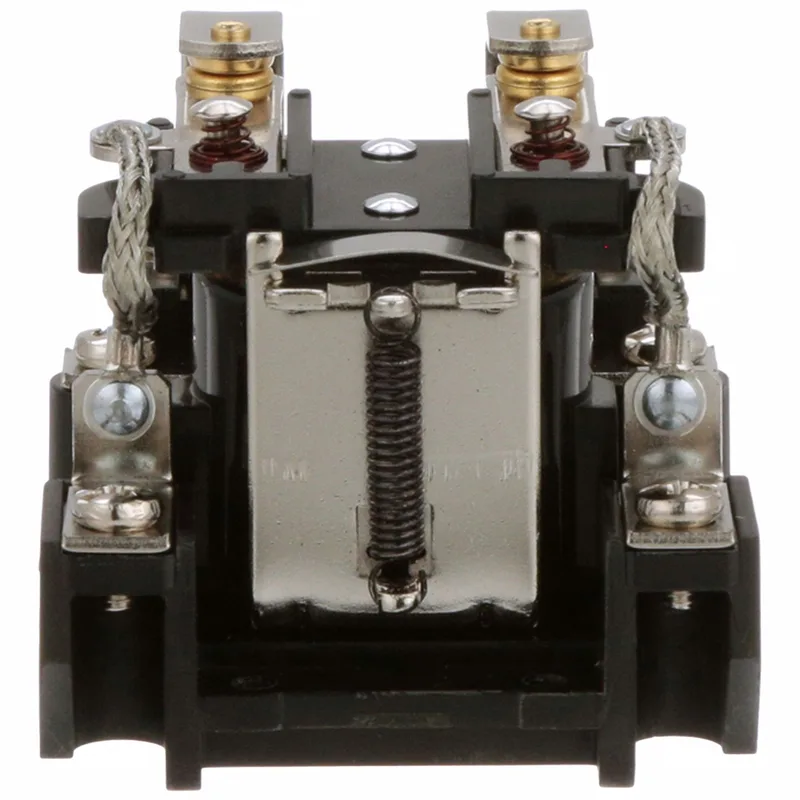

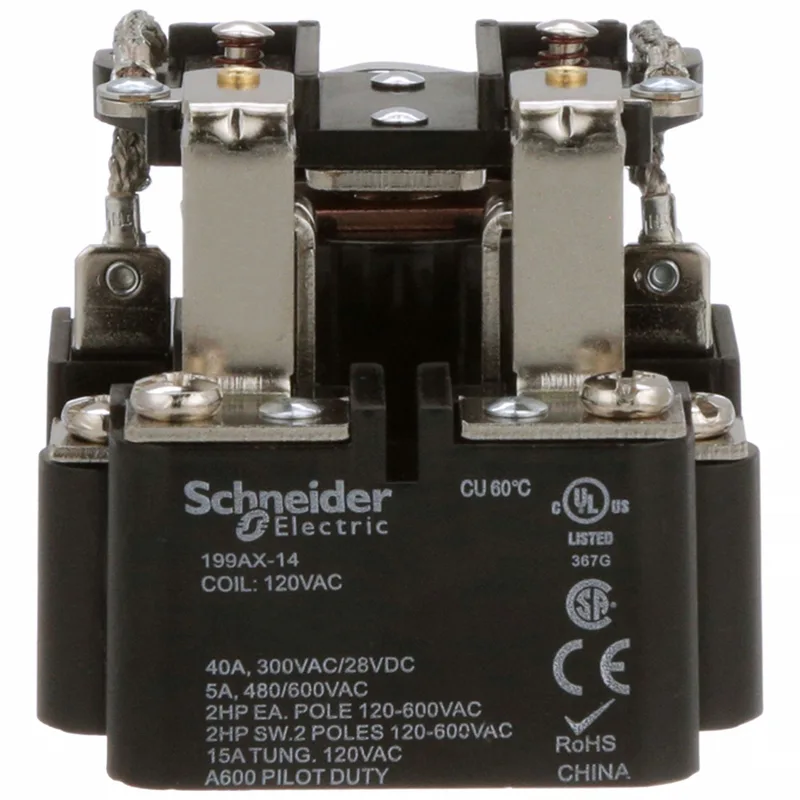

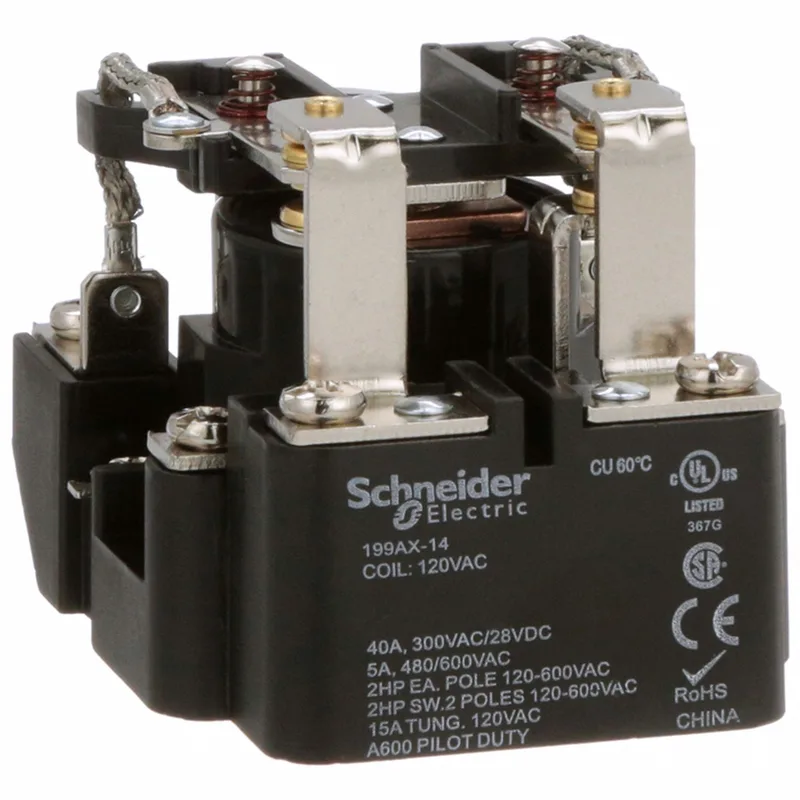

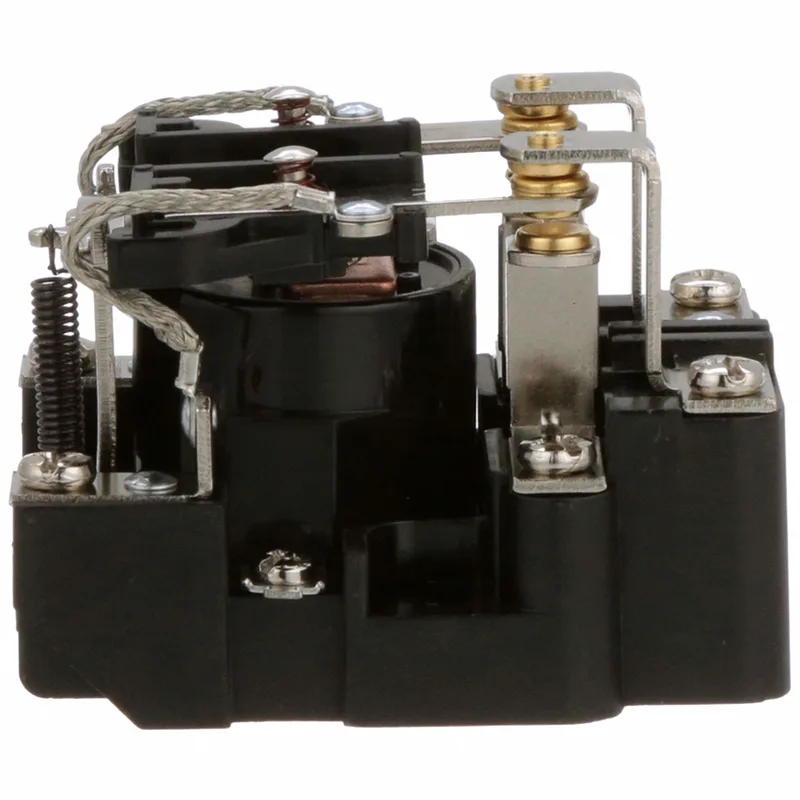

Square D 199AX14 Open Power Relay Dpdt 40A 120VAC|Square D 199AX14 Open Power Relay, Dpdt, 40A, 120VAC
$53.07 – $100.59Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 199 Power Series |
| Horsepower | 2 |
| Mounting | Surface |
| Terminal_type | Screw |
| Terminal_count | 8 |
| Dielectric | 1,500 V AC Between Open Contacts; 2,200 V AC Between Coil and Contact; 2,200 V AC Between Poles |
| Motor_rated | yes |
| Contact form | DPDT |
| Sealing_type | Open |
| Coil voltage | 120 |
| Contact rating | 5 |
| Has_push_to_test | No Test Button |
| Switching current | 40 |
| Has_status_indicator | No Indicator |
| Electrical_life_cycles | 50 |
MPN
199AX14
