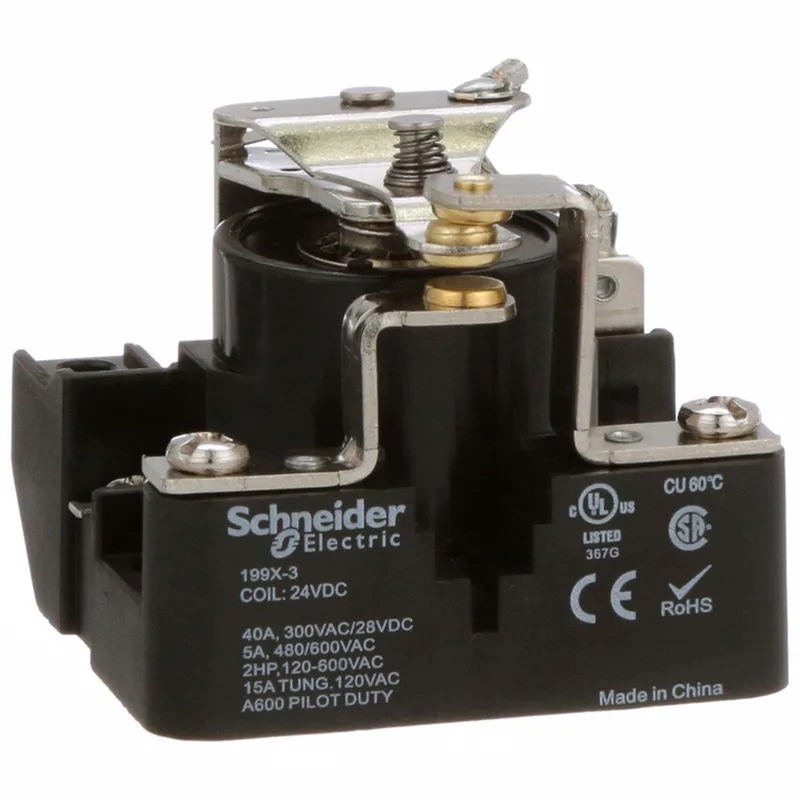

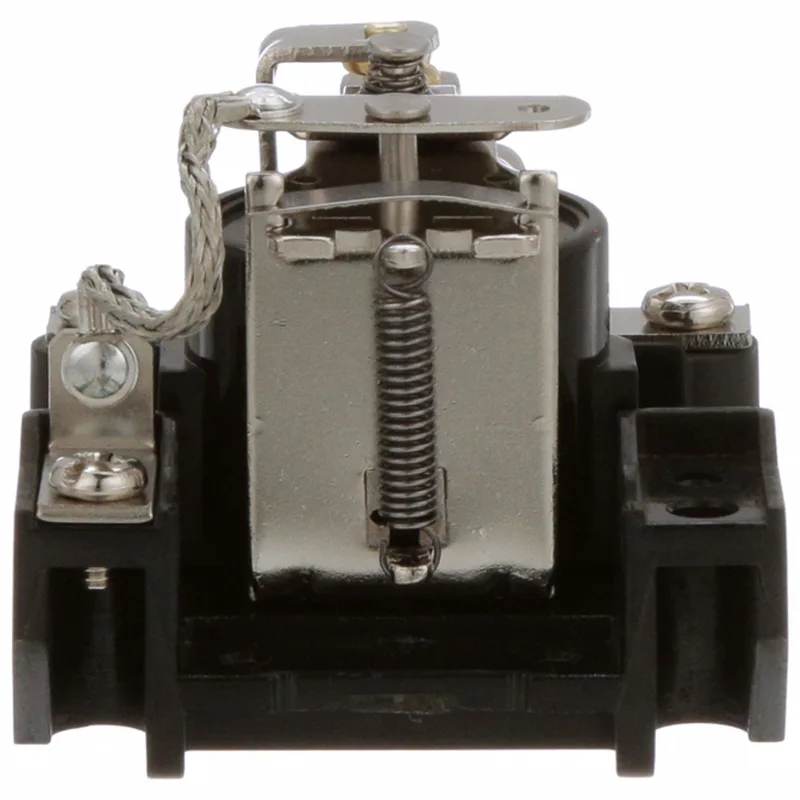

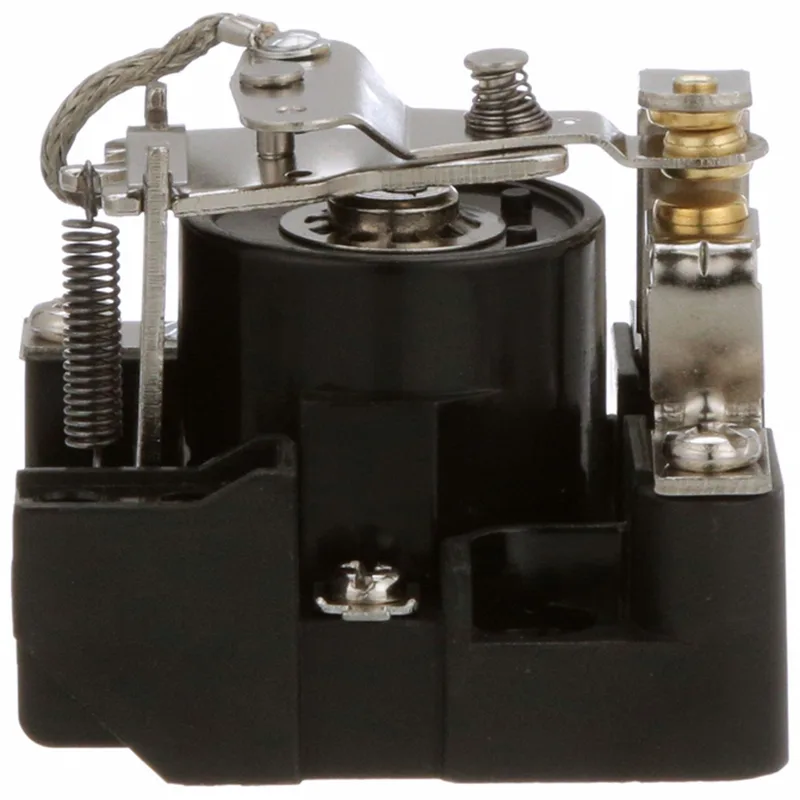

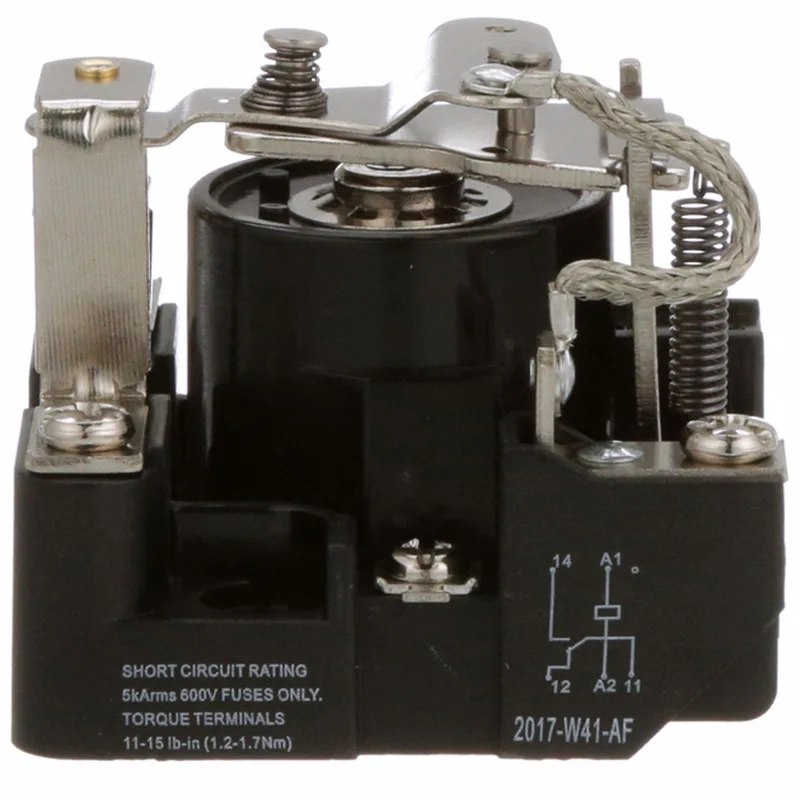

Schneider Electric 199X3
MPN199X3
Square D 199X3 Open Power Relay Spdt 40A 24VDC|Square D 199X3 Open Power Relay, Spdt, 40A, 24VDC
$49.23 – $70.09Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 199 Power Series |
| Voltage max | 600 V DC |
| Coil dropout voltage | >= 0.1 Uc AC/DC |
| Current in | 40 A |
| Current min | 1000 mA 5 V AC/DC |
| Horsepower | 2 |
| Average pole impedance | 4 mOhm |
| Enclosure_material | Silver alloy contacts |
| Mounting | Surface |
| Terminal_type | Screw |
| Terminal_count | 5 |
| Connections terminals | screw terminal - 1 x 0.009 in² (6 mm²) |
All specifications
| Parameter | Value |
|---|---|
| Electrical life cycles | 100000 cycles resistive DC load |
| Power | 2 hp 120...600 V AC 50/60 Hz |
| Length | 0.3 in (8 mm) |
| Torque | 10.6 |
| Dielectric | 2200 V AC between coil and contact 2200 V AC between poles 1500 V AC between open contacts |
| Cover_type | Open cover |
| Motor_rated | Yes |
| Contact form | SPDT |
| Package_type | PCE |
| Product type | Power relay |
| Sealing_type | Open |
| Coil voltage | 24 |
| Input voltage | 24 |
| Switch_function | SPDT |
| Contact rating | 5 |
| Has_push_to_test | No Test Button |
| Supply voltage | 6 |
| Contact composition | 1 NC + 1 NO |
| Coil resistance | 290 Ohm |
| Power consumption | 4 W DC |
| Switching current | 3000 |
| Storage temperature | -67...212 °F (-55...100 °C) |
| Has_status_indicator | No Indicator |
| Associated fuse rating | 50 A gG at 690 V coordination type 2 for power circuit |
| Electrical_life_cycles | 100000 |
| Operating temperature | -67 |
| Ordering and shipping details (Category) | US10CP221127 |
MPN
199X3
