Schneider Electric 389FXCXC1120A
MPN389FXCXC1120A

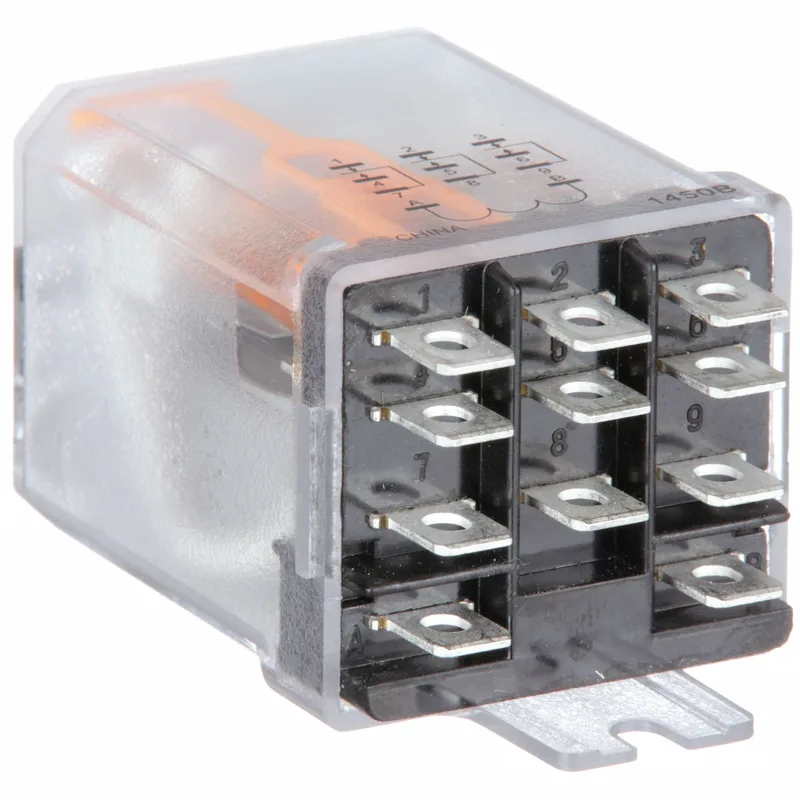

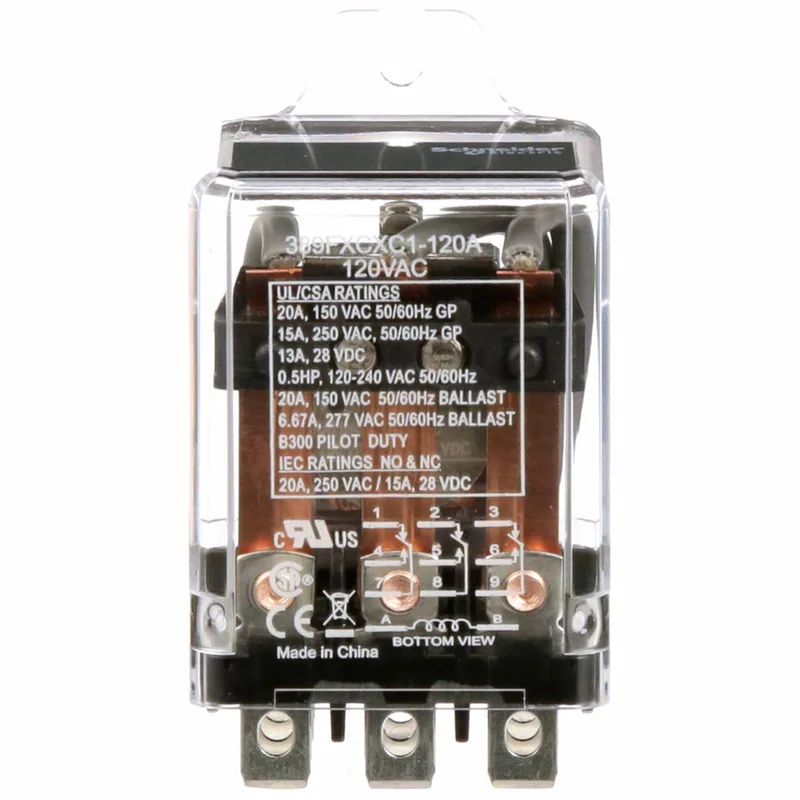

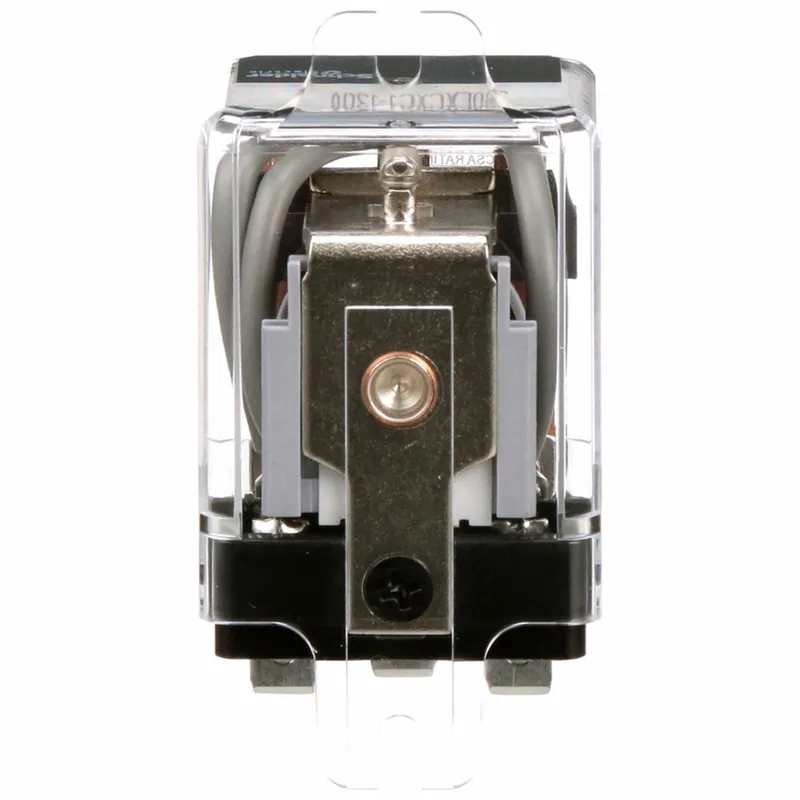

Square D 389FXCXC1120A Power Relay 3Pdt 20A 120Vac Flange Mount|Square D 389FXCXC1120A Power Relay, 3Pdt, 20A, 120Vac, Flange Mount
$41.97 – $63.09Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 389F Power Series |
| Horsepower | 1/2 hp |
| Mounting | Surface (Side Flange) |
| Terminal_type | Tab |
| Terminal_count | 11 |
| Dielectric | 1,600 V AC Between Contacts; 2,200 V AC Between Coil and Contact; 2,200 V AC Between Poles |
| Motor_rated | yes |
| Contact form | 3PDT |
| Coil voltage | 120 |
| Contact rating | 6.67 |
| Has_push_to_test | No Test Button |
| Switching current | 20 |
| Has_status_indicator | Mechanical Flag |
| Electrical_life_cycles | 100 |
| Mechanical_life_cycles | 5 |
MPN
389FXCXC1120A
