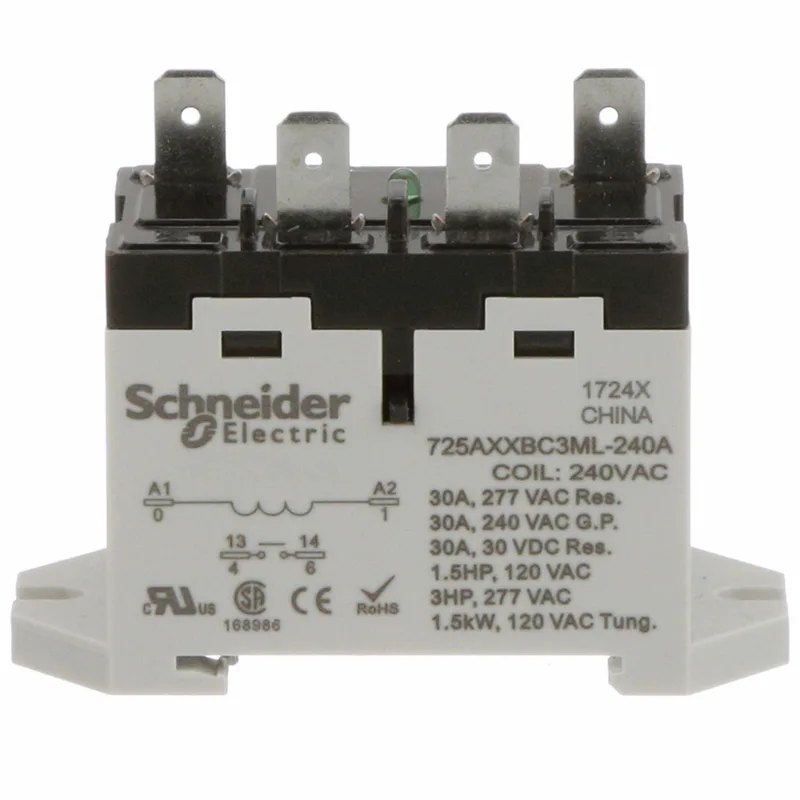

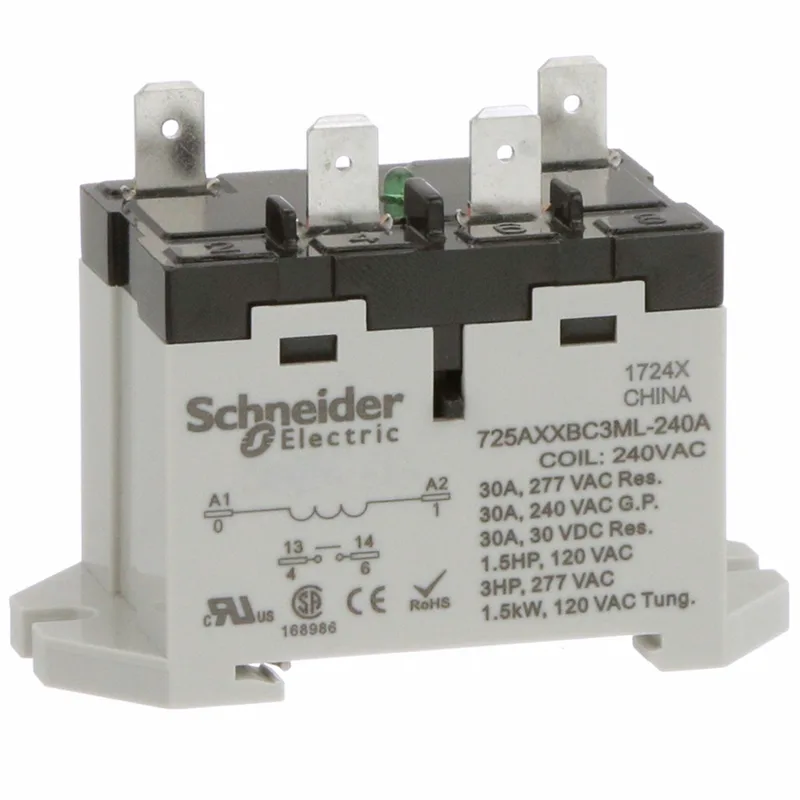

Schneider Electric 725AXXBC3ML-240A

Schneider Electric 725AXXBC3ML-240A

MPN725AXXBC3ML-240A
Obsolete

SCHNEIDER Enclosed Power Relay: DIN-Rail & Surface Mounted, 30 A Current Rating, 240V AC, SPST-NO

Schneider Electric 725AXXBC3ML-240A datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

725AXXBC3ML-240A key specifications
ParameterValue
Series namePower
Control typeTest button
Range of productHarmony Electromechanical Relays
Product or component typeDIN rail/panel mount relay
Contacts type and composition1 NO
Nominal input voltage204...264 V AC 50/60 Hz
Maximum switching voltage240 V CE 277 V UL
Drop-out voltage thresholdAC
Short-circuit current3 kA
Minimum switching current100 mA 5 V DC
[Ie] rated operational current30 A at 277 V AC (on resistive load) conforming to UL 30 A at 240 V AC (general purpose) conforming to UL 30 A at 30 V DC (on resistive load) conforming to UL 30 A at 240 V AC (on resistive load) conforming to IEC 30 A at 28 V DC (on resistive load) conforming to IEC
Rated power in3 hp 277 V AC 1.5 hp 120 V AC

All specifications

725AXXBC3ML-240A additional specifications
ParameterValue
Network frequency50/60 Hz
Average pole impedence2 mOhm
Mounting supportDIN rail Flange
Wire stripping length0.3 in (8 mm)
Response time30 ms
Depth1.9 in (49.4 mm)
Width1.4 in (34.9 mm)
Height2.7 in (67.7 mm)
Contacts materialSilver alloy contacts
Electrical durability100000 cycles resistive IEC
Mechanical durability5000000 cycles
StandardsIEC 60947-1 UL 60947-4-1A
CategoryUS10CP221127
Class number725
Coil resistance21000 Ohm
Local signallingLED indicator test button
Dielectric strength4000 V AC between coil and contact
Associated fuse rating32 A gG at 400 V coordination type 2 for power circuit
Average coil consumption2.50 VA
Ambient air temperature for storage-67...212 °F (-55...100 °C)
Ambient air temperature for operation-4...131 °F (-20...55 °C)
