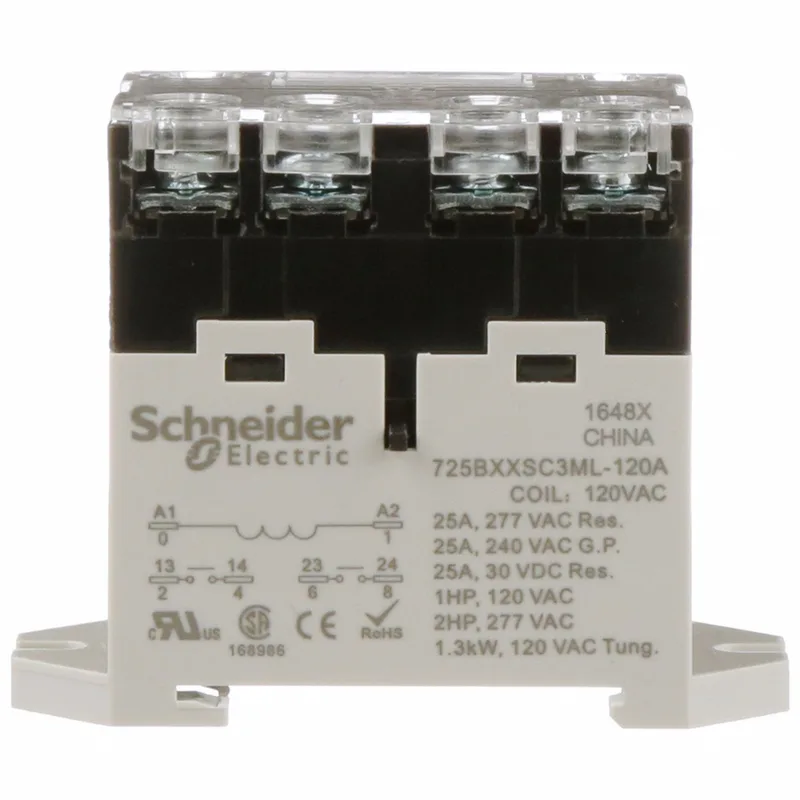

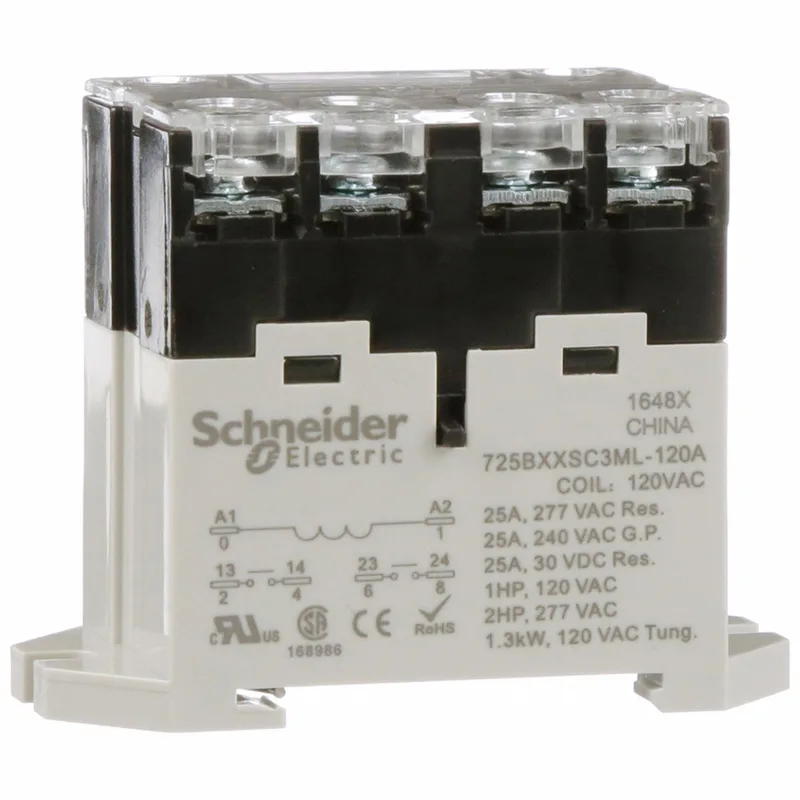

Schneider Electric 725BXXSC3ML120A
MPN725BXXSC3ML120A
Square D 725BXXSC3ML120A Power Relay Dpstno 25A 120Vac Din/Panel S Crew|Square D 725BXXSC3ML120A Power Relay,Dpstno,25A,120Vac,Din/Panel,S Crew
$36.53Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 725 series |
| Range of product | Harmony Electromechanical Relays |
| Contacts type and composition | 2 NO |
| Voltage_in | 102...132 V AC 50/60 Hz |
| Voltage max | 240 V CE 277 V UL |
| Coil dropout voltage | AC |
| Current min | 100 mA 5 V DC |
| Horsepower | 1 |
| Average pole impedence | 2 mOhm |
| Enclosure_material | Silver alloy contacts |
| Mounting | DIN rail Panel |
| Terminal_type | Screw |
All specifications
| Parameter | Value |
|---|---|
| Terminal_count | 6 |
| Depth | 53.34 |
| Width | 35.56 |
| Height | 68.58 |
| Electrical life cycles | 100000 cycles resistive IEC |
| Mechanical life cycles | 5000000 cycles |
| Standards | IEC 60947-1 UL 60947-4-1 A |
| Power | 1300 |
| Length | 0.3 in (8 mm) |
| IP rating | IP20 |
| Torque | 10.6 |
| Dielectric | 4000 V AC between coil and contact 2000 V AC between poles |
| Status LED | With |
| Type | Power relay |
| Motor_rated | Yes |
| Class number | 725 |
| Shape of pin | Screw |
| Contact form | DPST-NO |
| Control_type | Test button |
| Frequency | 50/60 Hz |
| Package_type | PCE |
| Coil voltage | 120 |
| Local signalling | LED indicator test button |
| Contact rating | 25 |
| Has_push_to_test | Manual Push Test Button |
| Response time | 30 |
| Coil resistance | 5200 Ohm |
| Switching current | 25 |
| Storage temperature | -67...212 °F (-55...100 °C) |
| Has_status_indicator | LED Indicator |
| Associated fuse rating | 32 A gG at 400 V coordination type 2 for power circuit |
| Electrical_life_cycles | 100000 |
| Mechanical_life_cycles | 5000000 |
| Average coil consumption | 2.5 VA |
| Main_product_or_component_type | DIN rail/panel mount relay |
| Operating temperature | -4 |
| Ordering and shipping details (Category) | US10CP221127 |
MPN
725BXXSC3ML120A
