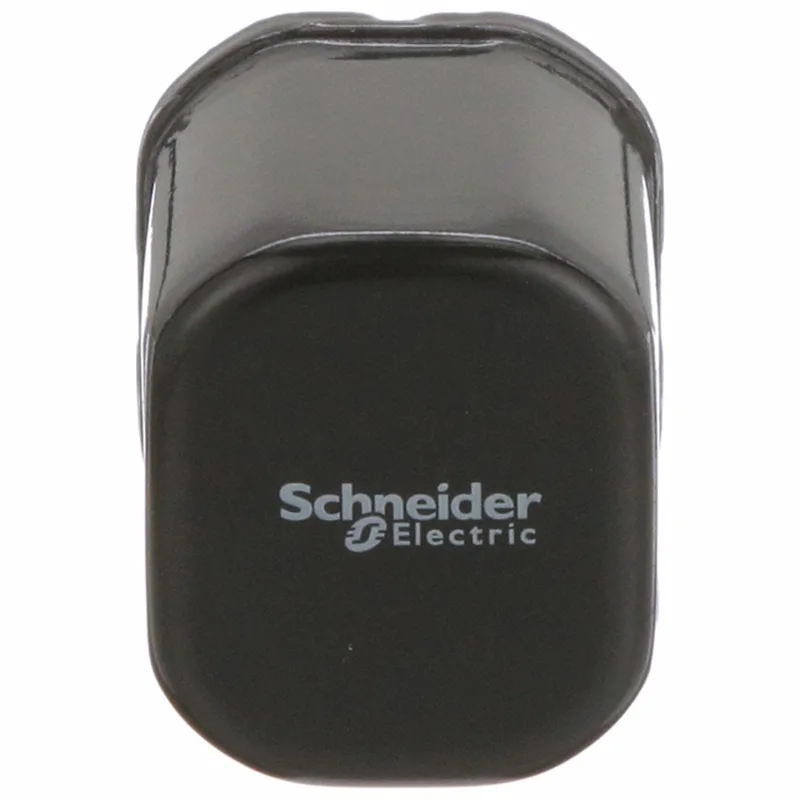

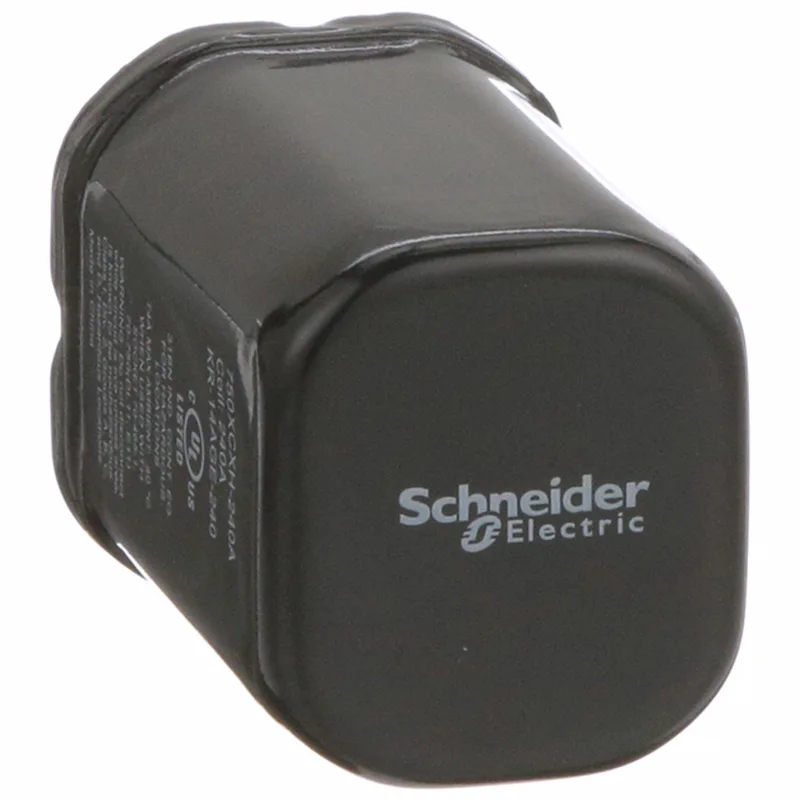

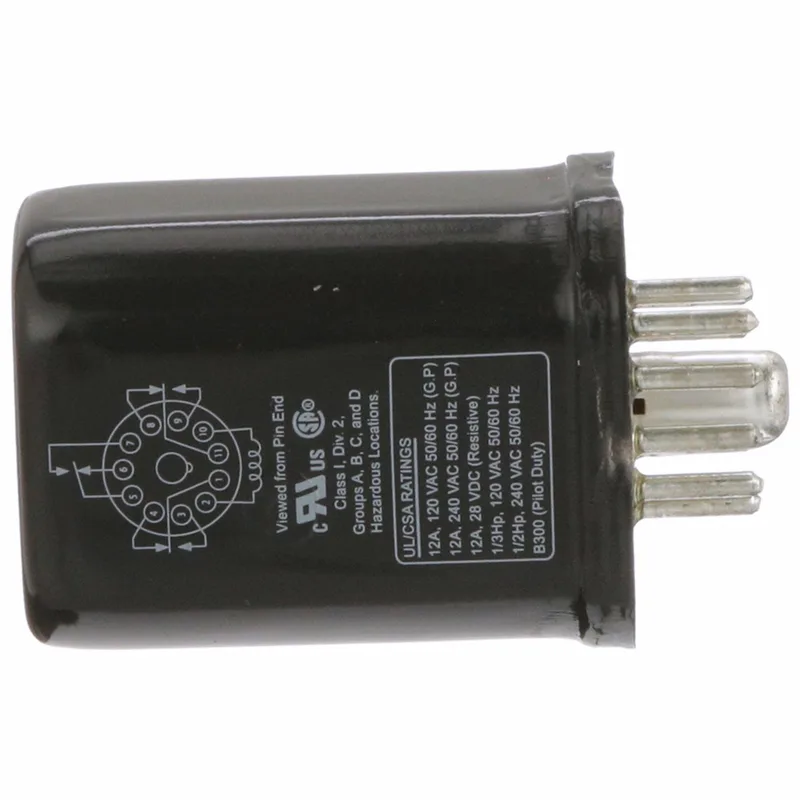

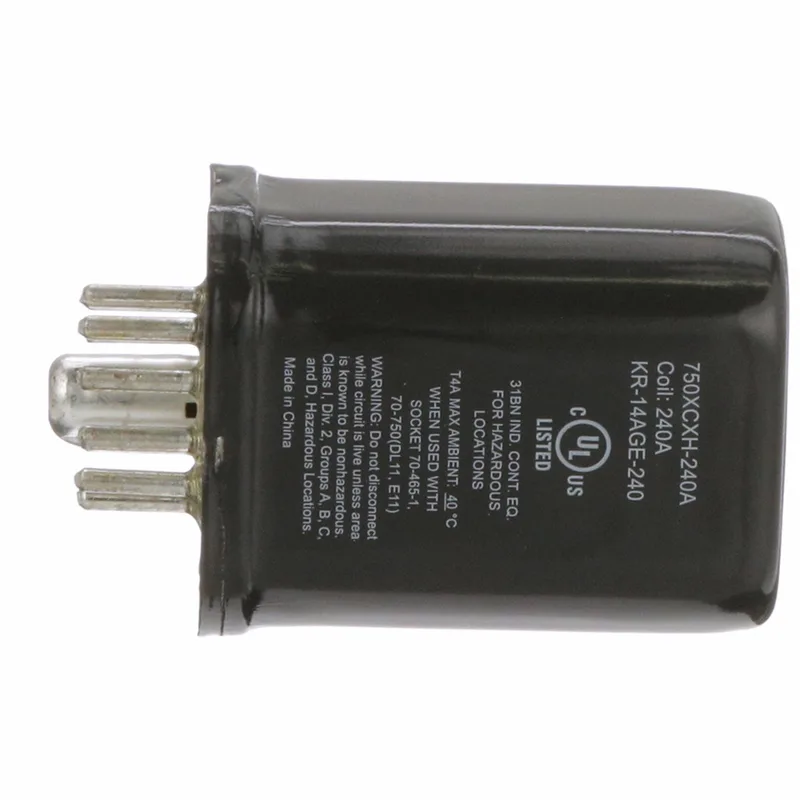

Schneider Electric 750XCXH-240A
MPN750XCXH-240A
Active
SCHNEIDER Hermetically Sealed Relay: Socket Mounted, 12 A Current Rating, 240V AC, 11 Pins/Terminals
$130.94Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Relay |
| Input voltage | 240 V AC |
| Voltage range | 0.85...1.1 Un AC/DC |
| Maximum switching voltage | 300 V |
| Drop-out voltage threshold | >= 0.15 Uc AC >= 0.1 Uc DC |
| Input current | 12 A |
| Minimum switching current | 100 mA 5 V |
| Rated operational current | 12 A at 120 V AC conforming to UL 12 A at 240 V AC conforming to UL 12 A at 28 V DC conforming to UL |
| Motor power | 0.5 hp 240 V AC 50/60 Hz 0.33 hp 120 V AC 50/60 Hz |
| Power consumption in | 2.75 VA AC |
| IP degree of protection | IP67 |
| Mounting | Socket |
All specifications
| Parameter | Value |
|---|---|

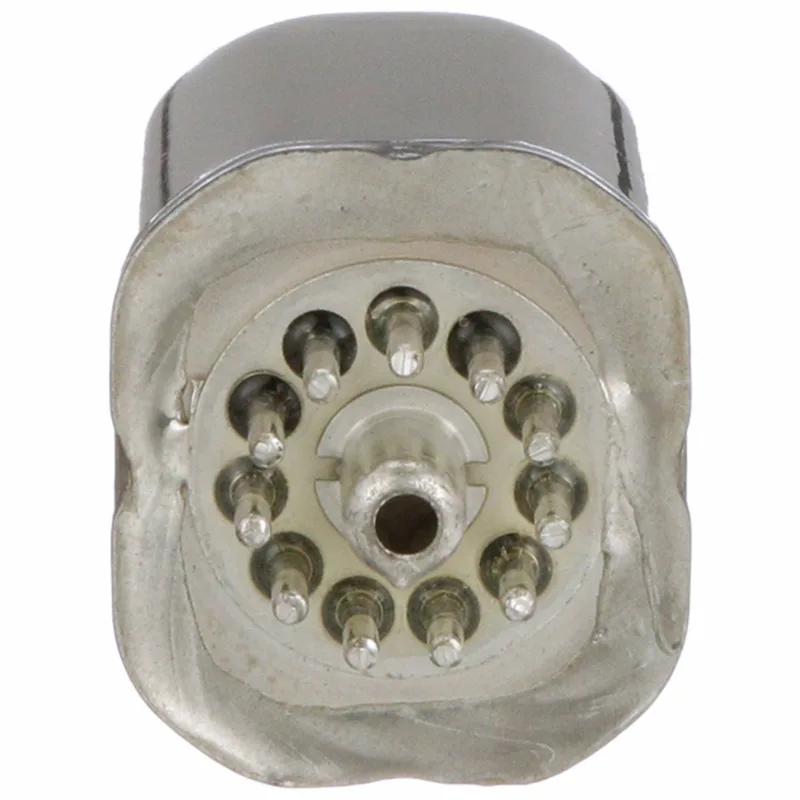

| Connections terminals | octal terminal - 11 pins |
| Shock resistance | 10 gn |
| Vibration resistance | 3 gn 35...150 Hz)operating +/- 1 mm 10...35 Hz)operating 6 gn 35...150 Hz)not operating +/- 1 mm 10...35 Hz)not operating |
| Depth | 1.6 in (41.2 mm) |
| Width | 1.4 in (36.5 mm) |
| Height | 2.07 in (52.5 mm) |
| Product weight | 4.6 oz (130 g) |
| Contacts material | Silver alloy contacts |
| Electrical durability | 100000 cycles resistive |
| Mechanical durability | 10000000 cycles |
| Category | US10CP221127 |
| Operating time | 20 ms |
| Coil resistance | 7200 Ohm |
| Switch function | 3PDT |
| Contact composition | 3 NO + 3 NC |
| Dielectric strength | 1600 V AC between coil and contact 1600 V AC between poles 1500 V AC between open contacts |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...131 °F (-40...55 °C) |
MPN
750XCXH-240A
