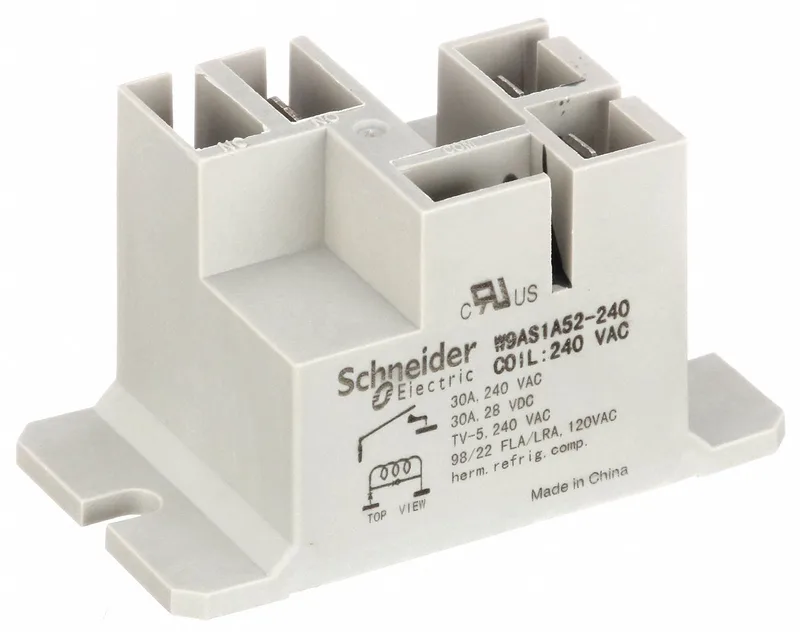

Schneider Electric 9AS3A240
MPN9AS3A240
Active
Square D 9AS3A240 Hrmny9A 30A240Vacspst-Noflngpnlmntsldcvr|Square D 9AS3A240 Hrmny9A 30A240Vacspst-Noflngpnlmntsldcvr
$13.67 – $17.09Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Power relay |
| Voltage | 4 kV 1.2/50 µs |
| Maximum switching voltage | 277 V AC 28 V DC |
| Drop-out voltage threshold | >= 0.2 Uc |
| Coil voltage | 240 V AC 50-60 Hz |
| Control circuit voltage limits | 0.85...1.1 Uc |
| Load current | 30 A |
| Rated operational current | 30 A at 240 V AC-1 30 A at 28 V DC (on resistive load) 24 A at 240 V AC (on resistive load) 98 A at 120 V AC-8a (locked rotor) 22 A at 120 V AC-8a (full load) 10 A at 277 V AC-5a (ballast) |
| Rated power in | 1 hp at 125 V AC 2 hp at 250 V AC |
| Network frequency | 50-60 Hz |
| Mounting support | Panel flange |
| Connections terminals | Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm |
All specifications
| Parameter | Value |
|---|---|
| Ambient temperature range - storage | -40...185 °F (-40...85 °C) |
| Ambient temperature range - operational | -40...104 °F (-40...40 °C) |
| Pollution degree | 3 |
| Shock resistance | 10 gn operating 100 gn not operating |
| Vibration resistance | +/- 0.75 mm 10...55 Hz operating +/- 0.75 mm 10...55 Hz not operating |
| Depth | 1.09 in (27.8 mm) |
| Width | 1.07 in (27.3 mm) |
| Height | 2.0 in (50 mm) |
| Product weight | 0.071 lb(US) (0.032 kg) |
| Contacts material | Silver alloy contacts |
| Electrical durability | 100000 cycles, 30 A at 240 V, AC-1 50000 cycles for resistive load, 30 A at 28 V, DC 100000 cycles for resistive load, 24 A at 240 V, AC 30000 cycles for full load, 22 A at 120 V, AC-8a 1000 cycles for motor load 6000 cycles for ballast load, 10 A at 277 V, AC-5a |
| Mechanical durability | 10000000 cycles |
| Standards | UL 60947-4-1 |
| Category | US10CP221127 |
| Operate time | 20 ms |
| Release time | 10 ms |
| Product range | Harmony |
| Switch function | SPST |
| Average resistance | 13490 Ohm at 73 °F (23 °C) +/- 10 % |
| Operating position | Any position |
| Average consumption | 2.6 VA |
| Contact composition | NO |
| Dielectric strength | 2500 V AC between coil and contact 1500 V between contacts with micro disconnection |
| Protection category | RT III |
| Minimum switching capacity | 5 W at 1 A, 5 V DC 12 VA at 1 A, 12 V AC |
MPN
9AS3A240
