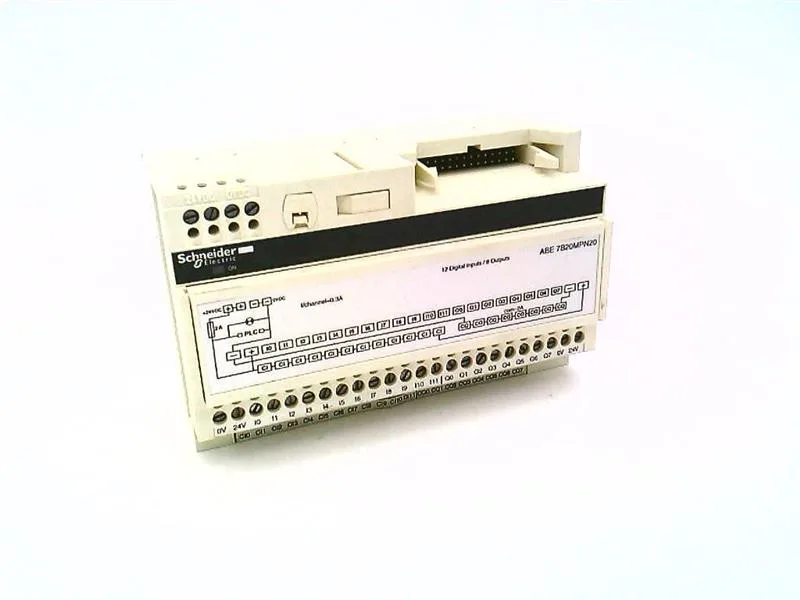

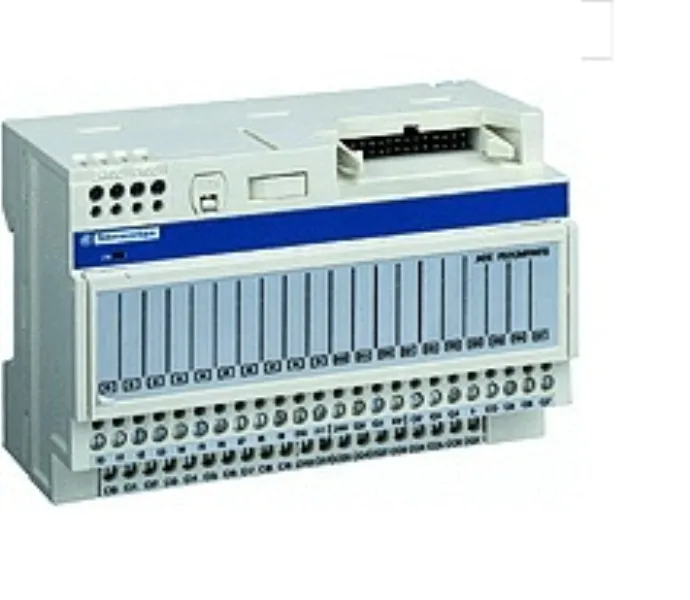

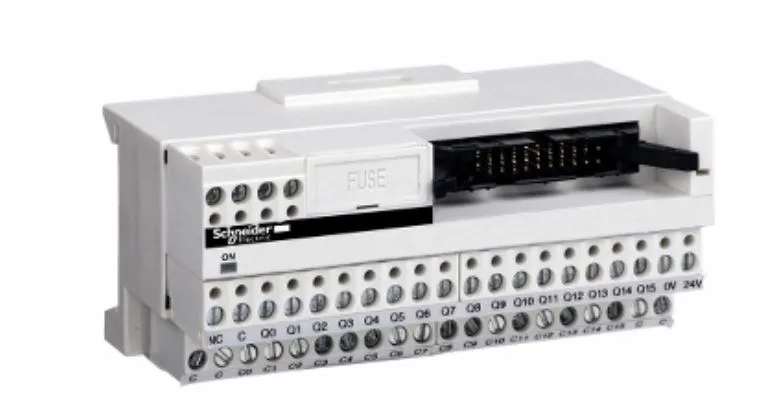

Schneider Electric ABE7B20MPN20

Schneider ABE7B20MPN20 Modicon ABE7 passive discrete I/O sub-base, 12 inputs 8 o

MPNABE7B20MPN20
Obsolete

Schneider ABE7B20MPN20 Solid State Overload Relays — now discontinued, supplied from remaining surplus and broker stock.

$343.34Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ABE7B20MPN20 key specifications
ParameterValue
Connector typeHE-10
Range of productModicon ABE7
Product or component typePassive discrete I/O sub-base
Discrete output voltage typeDC
Supply voltage limits19...30 V DC controller side)IEC 61131-2 20.4...26.4 V DC sensor/controller side)IEC 61131-2
Discrete output voltage24 V
Supply voltage24 V DC controller side 24 V DC sensor/controller side
Voltage2000 V terminals/mounting rails
Voltage drop on power supply fuse0.3 V
Switched current15 mA input circuit 300 mA output circuit
Maximum supply current2 A
Short-circuit protection2 A internal fuse, 5 x 20 mm, fast blow controller side)

All specifications

ABE7B20MPN20 additional specifications
ParameterValue
Maximum current per output common2 A
IP degree of protectionIP2X conforming to IEC 60529
Connector destinationTwido programmable controller
Connections - terminalsScrew type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 28...AWG 16) solid
Number of terminal per channel2
Resistance to incandescent wire1382 °F (750 °C) IEC 60695-2-11
Pollution degree2 IEC 60664-1
Shock resistance15 gn 11 ms IEC 60068-2-27
Vibration resistance2 gn (f= 10...150 Hz) conforming to IEC 60068-2-6
StandardsIEC 61131-2 Type 1
CategoryUS10CP222375
Pin number26 pins
Status LED1 LED power ON
Fixing modeBy clips 35 mm symmetrical DIN rail IEC 60715 By screws
Tightening torque5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm
Channels20
Discrete input logicSink
Overvoltage categoryII conforming to IEC 60664-1
Discrete input number12
Polarity distribution1 common/12 channels input 1 common/8 channels output
Discrete output number8
Resistance to fast transients2 kV level 3 IEC 61000-4-4
Resistance to radiated fields9.1 V/m (10 V/m) 80000000...2000000000 Hz)IEC 61000-4-3 level 3
Ambient air temperature for storage-40...176 °F (-40...80 °C) IEC 61131-2
Ambient air temperature for operation23...140 °F (-5...60 °C) IEC 61131-2
Resistance to electrostatic discharge4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2

Product details

Overview

The ABE7B20MPN20 is a Schneider Modicon ABE7 passive discrete I/O sub-base that provides 12 sink inputs and 8 outputs for a Twido modular base, rated 2 A max per channel at 24 V DC. It is discontinued, so sourcing now runs through surplus and broker channels rather than current distribution.

Compared to the ABE7P16T214, the ABE7B20MPN20 offers 20 channels (12 inputs, 8 outputs) versus 16, and a higher per-channel current of 2 A versus 1 A, but lacks the per-channel switch disconnector found on the ABE7P16T214.
