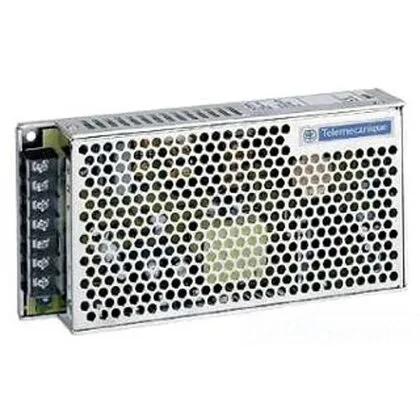

Schneider Electric ABL1RPM24042

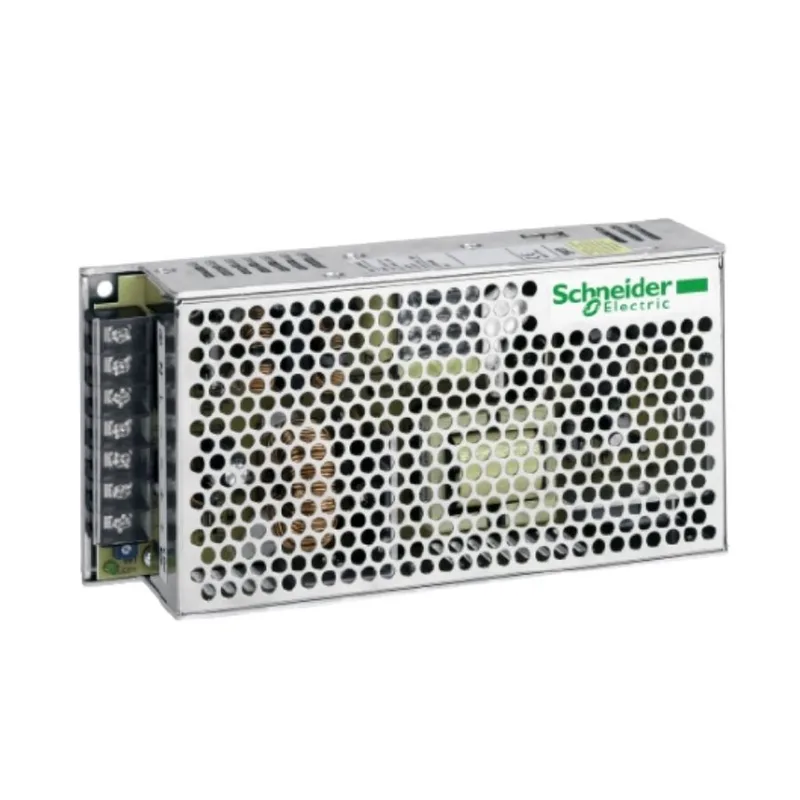

Schneider Electric ABL1RPM24042

MPNABL1RPM24042
Obsolete

POWER SUPPLY 24VDC|SQD ABL1RPM24042 POWER SUPPLY 24VDC

$67.31 – $91.00Ref. price · indicative, final on quote
Schneider Electric ABL1RPM24042 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ABL1RPM24042 key specifications
ParameterValue
Range of productPhaseo Dedicated
Power supply typeRegulated switch mode
Input protection typeIntegrated fuse (not interchangeable)
Output protection typeAgainst overload, protection technology: 1.1...1.5 x In Against overvoltage, protection technology: tripping if U > 1.25 x Un Against short-circuits, protection technology: automatic reset Thermal
Product or component typePower supply
Output voltage24 V DC
Main input voltage100...240 V AC single phase 120...370 V DC
Input voltage limits85...264 V
Output voltage limits21.6...26.4 V
Inrush current50 A at 115 V AC 100 A at 230 V AC
Current consumption0.7 A at 240 V 1.7 A at 100 V
Power supply output current4.2 A

All specifications

ABL1RPM24042 additional specifications
ParameterValue
Rated power in100 W
Power dissipation in25 W
Network frequency47...63 Hz
IP degree of protectionIP20 conforming to EN/IEC 60950
Mounting supportReversible mounting bracket Panel
Connections - terminalsFor ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12 For input connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 12 For output connection: screw type terminals, connection capacity: 4 x 4 mm² AWG 12
Pollution degree2
Relative humidity20...90 %
Operating altitude6561.68 ft (2000 m)
Vibration resistance2 gn (f= 9...150 Hz) conforming to EN/IEC 61131-2 3.5 mm (f= 5...9 Hz) conforming to EN/IEC 61131-2
Meantime between failure [MTBF]100000 h at 104 °F (40 °C)
Cos phi0.7...0.95
MarkingCE
CategoryUS1CP1222524
Efficiency80 %
Status LED1 LED (Green) output voltage
Holding time>= 10 ms at 100 V >= 40 ms at 240 V
Name of testConducted interference conforming to EN 61000-4-8 level 4 Electrostatic discharges conforming to EN/IEC 61000-4-2 level 3 Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3 Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3 Rapid transient conforming to IEC 61000-4-4 level 3 Conducted/radiated emissions conforming to EN 55022 Class B Conducted/radiated emissions conforming to EN/IEC 55011 Emission conforming to EN/IEC 61000-6-3 Primary outage conforming to IEC 61000-4-11 Surge conforming to EN/IEC 61000-4-5
Output couplingParallel Series
Operating positionAny position
Dielectric strength1500 V between input and ground 3000 V between input and output 500 V between output and ground
Overvoltage categoryClass I conforming to VDE 0106-1
Line and load regulation+/- 3 %
Environmental characteristicEMC conforming to EN 50081-1 EMC conforming to EN 50082-2 EMC conforming to EN 61000-6-3 EMC conforming to EN/IEC 61000-6-2 Safety conforming to EN/IEC 60950-1 Safety conforming to SELV Low frequency harmonic currents conforming to EN/IEC 61000-3-2
Ambient air temperature for storage-13...185 °F (-25...85 °C)
Ambient air temperature for operation32...113 °F (0...45 °C) (without derating) 113...140 °F (45...60 °C) (with derating factor)
MPN
ABL1RPM24042
