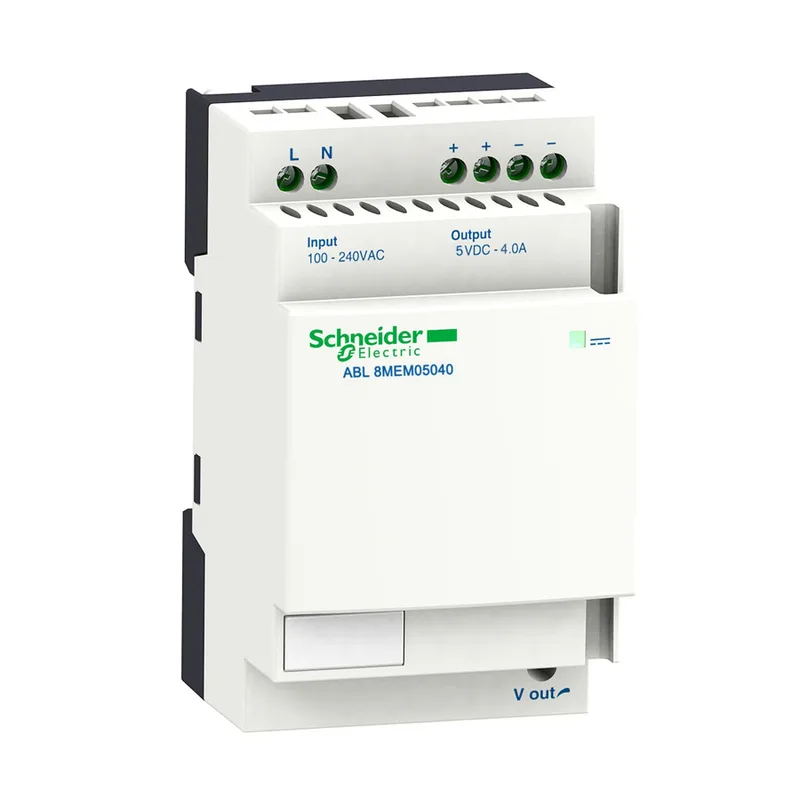

Schneider Electric ABL8MEM05040
MPNABL8MEM05040
Obsolete
PHASEO POWER|SQD ABL8MEM05040 PHASEO POWER
$60.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon Power Supply |
| Power supply type | Regulated switch mode |
| Input protection type | Integrated fuse (not interchangeable) |
| Output protection type | Against short-circuits |
| Product or component type | Power supply |
| Output voltage | 5 V DC |
| Nominal input voltage | 100...240 V AC phase to phase L1-L2 100...240 V AC single phase N-L1 120...250 V DC |
| Output voltage adjustment | 4.75...6.25 V adjustable |
| Inrush current | 20 A |
| Current consumption | 0.35 A 240 V AC 0.55 A 100 V AC |
| Power supply output current | 4 A |
| Power factor | 0.5 at 5 V DC |
All specifications
| Parameter | Value |
|---|---|
| Rated power in | 20 W |
| Power dissipation in | 6.7 W |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting support | 35 x 15 mm symmetrical DIN rail 35 x 7.5 mm symmetrical DIN rail panel 2 screws, diameter : 4 mm |
| Connections - terminals | Screw type terminals 2 x 0.14...2 x 2.5 mm², AWG 26...AWG 14) input connection Screw type terminals 4 x 0.14...4 x 2.5 mm², AWG 26...AWG 14) output connection |
| Operating altitude | 6561.68 ft (2000 m) |
| Depth | 2.3 in (59 mm) |
| Width | 2.1 in (54 mm) |
| Height | 3.9 in (100 mm) |
| Standards | CSA C22.2 No 60950-1 UL 508 EN/IEC 62368-1 |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Marking | CE |
| Category | US1CP1222525 |
| Efficiency | 75 % |
| Status LED | 1 LED (Green) output voltage |
| Output coupling | Parallel Series |
| Residual ripple | 250 mV |
| Operating position | Vertical |
| Dielectric strength | 3000 V with between input and output |
| Efficiency at full load | 85...264 V AC |
| Environmental characteristic | EMC conforming to EN 55022 Class B EMC conforming to IEC 61000-6-3 EMC conforming to IEC 61000-6-2 EMC conforming to EN/IEC 61204-3 Safety conforming to IEC 60950-1 |
| Ambient air temperature for operation | -13...131 °F (-25...55 °C) without derating mounting position A < 6561.68 ft (2000 m) 131...158 °F (55...70 °C) with derating factor mounting position A < 6561.68 ft (2000 m) |
MPN
ABL8MEM05040
