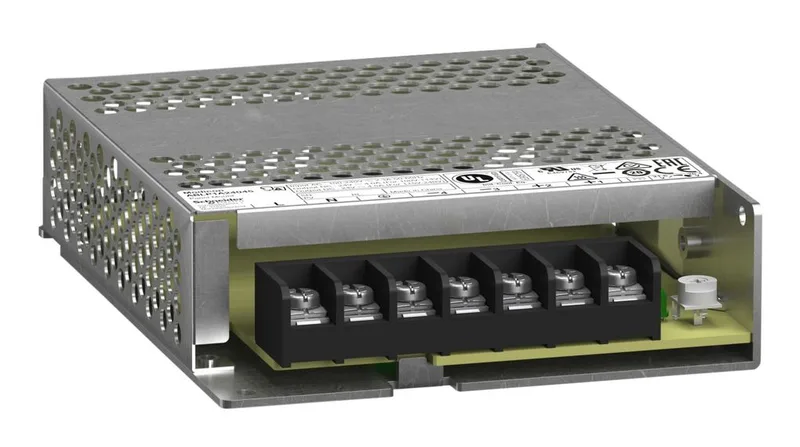

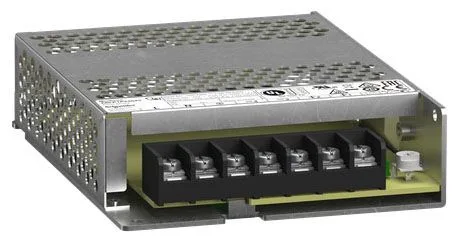

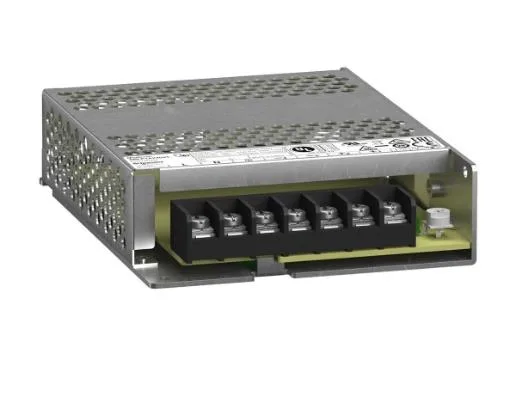

Schneider Electric ABLP1A24045
MPNABLP1A24045
Active
REGULATED POWER SUPPLY 100 240V AC 24V 4.5A SINGLE PHASE PANEL MOUNT|REGULATED POWER SUPPLY 100 240V AC 24V 4.5A SINGLE PHASE PANEL MOUNT
$39.37 – $111.30Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon Power Supply |
| Power supply type | Regulated switch mode |
| Input protection type | Integrated fuse (not interchangeable) 4 A |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset Against over temperature, protection technology: manual reset Against overvoltage, protection technology: manual reset |
| Product or component type | Power supply |
| Output voltage | 24 V DC |
| Nominal input voltage | 100...240 V AC single phase |
| Output voltage adjustment | 21.6...26.4 V |
| Inrush current | 45 A 115 V 85 A 230 V |
| Current consumption | < 2.3 A 115 V AC < 1.5 A 230 V AC |
| Maximum leakage current | 1 mA 240 V AC |
| Power supply output current | 4.5 A |
All specifications
| Parameter | Value |
|---|---|
| Power factor | 0.55 at 115 V AC 0.45 at 230 V AC |
| Rated power in | 100 W |
| Power dissipation in | 20 W |
| Nominal network frequency | 50...60 Hz |
| Enclosure material | Aluminum |
| IP degree of protection | IP10 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 Double-profile DIN rail panel mounting |
| Connections - terminals | Screw connection 0.75...2.5 mm², AWG 18...AWG 14) without wire end ferrule Screw connection 0.75...1.5 mm², AWG 18...AWG 16) with wire end ferrule |
| Pollution degree | 2 |
| Shock resistance | 150 m/s² 11 ms |
| Operating altitude | 5000 m |
| Vibration resistance | 3 mm (f= 2...9 Hz) conforming to IEC 60068-2-6 10 m/s² (f= 9...200 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class | Class I |
| Depth | 5.08 in (129 mm) |
| Width | 3.8 in (97 mm) |
| Height | 1.2 in (30 mm) |
| Meantime between failure [MTBF] | 700000 h at 77 °F (25 °C), full load conforming to SR 332 |
| Standards | IEC 62368-1 IEC 61010-1 EN 61010-2-201 EN 61204-3 IEC 61000-6-1 IEC 61000-6-2 IEC 61000-6-3 IEC 61000-6-4 IEC 61000-3-2 EN 61000-3-3 UL 62368-1 UL 61010-1 UL 61010-2-201 CSA C22.2 No 62368-1 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Category | US1CP1222524 |
| Efficiency | 89 % 230 V AC |
| Status LED | 1 LED (Green) output voltage |
| Holding time | > 20 ms 115 V AC > 40 ms 230 V AC |
| Service life | 10 year(s) |
| Turn-on time | < 500 ms |
| Variant option | Panel mount |
| Output coupling | Parallel Serial |
| Residual ripple | < 150 mV |
| Dielectric strength | 3750 V AC with input to output |
| Overvoltage category | II |
| Efficiency at full load | 90...264 V AC |
| Electromagnetic emission | Conducted emissions IEC 61000-6-3 Radiated emissions IEC 61000-6-4 |
| Electromagnetic immunity | Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 Immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3 Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3 Immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3 Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4 Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5 Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5 Immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6 Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8 Immunity to voltage dips conforming to IEC 61000-4-11 Disturbing field emission conforming to EN 55016-2-3 Limits for harmonic current emissions conforming to IEC 61000-3-2 conforming to EN 55016-1-2 conforming to EN 55016-2-1 |
| Line and load regulation | < 0.5 % network 0 to 100 % load at 77 °F (25 °C) < 1 % network full voltage range in line at 77 °F (25 °C) |
| Network system compatibility | TN TT IT |
| Startup with capacitive loads | 4000 µF |
| Ambient air temperature for operation | -22...122 °F (-30...50 °C) without derating mounting position A, B, F, G < 6561.68 ft (2000 m) 122...158 °F (50...70 °C) with current derating of 2 % per °C mounting position A, B, F, G < 6561.68 ft (2000 m) |
