Schneider Electric BCH2LF0430CA5C
MPNBCH2LF0430CA5C
Obsolete

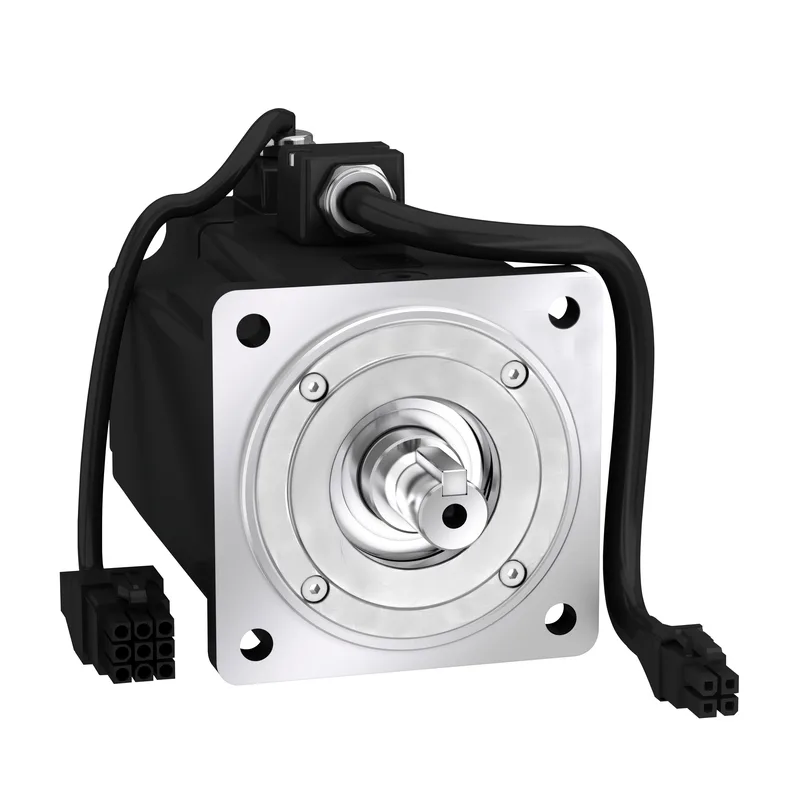

Square D BCH2LF0430CA5C 80Mm, 400W, Ip54, Wo Key, Leads
$604.52 – $1,065.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Feedback type | 20 bits single turn absolute encoder |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 220 V 110 V |
| Maximum current irms | 7.73 A LXM28... 0.4 kW, 220 V 7.73 A LXM28... 0.4 kW, 110 V |
| Continuous stall current | 2.29 A |
| Maximum permanent current | 2.52 A |
| Continuous power | 400 W |
| Brake pull-in power | 10.2 W |
| Nominal output power | 400 W LXM28... 2.6 A, 220 V, single phase 400 W LXM28... 2.6 A, 220 V, three phase 400 W LXM28... 5.7 A, 110 V, single phase |
| Phases | Single phase Three phase |
| Network number of phases | 1 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP54 IM B5, IM V1 IP50 IM V3 |
| Mounting support | Asian standard flange |
| Mounting holes diameter | 0.3 in (6.6 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 3.5 in (90 mm) |
| Electrical connection | Free lead |
| Centring collar depth | 0.2 in (4 mm) |
| Length | 4.4 in (112 mm) |
| Category | US1PC5318281 |
| Shaft end | Smooth shaft |
| Shaft length | 1.2 in (30 mm) |
| Holding brake | Without |
| Nominal speed | 3000 rpm LXM28... 2.6 A, 220 V, single phase 3000 rpm LXM28... 2.6 A, 220 V, three phase 3000 rpm LXM28... 5.7 A, 110 V, single phase |
| Rotor inertia | 0.67 kg.cm² |
| Nominal torque | 11.24 lbf.in (1.27 N.m) LXM28... 2.6 A, 220 V, single phase 11.24 lbf.in (1.27 N.m) LXM28... 2.6 A, 220 V, three phase 11.24 lbf.in (1.27 N.m) LXM28... 5.7 A, 110 V, single phase |
| Shaft diameter | 0.6 in (14 mm) |
| Torque constant | 0.55 N.m/A 68 °F (20 °C) |
| Sizing reference | BCH2 |
| Back emf constant | 33.5 V/krpm 68 °F (20 °C) |
| Device short name | BCH2 |
| Motor flange size | 3.1 in (80 mm) |
| Peak stall torque | 33.72 lbf.in (3.81 N.m) LXM28... 2.6 A, 220 V, single phase 33.72 lbf.in (3.81 N.m) LXM28... 2.6 A, 220 V, three phase 33.72 lbf.in (3.81 N.m) LXM28... 5.7 A, 110 V, single phase |
| Stator inductance | 11.3 mH 68 °F (20 °C) |
| Stator resistance | 3.2 Ohm 68 °F (20 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Maximum axial force fa | 115 N |
| Number of motor stacks | 1 |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Continuous stall torque | 11.24 lbf.in (1.27 N.m) LXM28 2.6 A, 220 V, single phase 11.24 lbf.in (1.27 N.m) LXM28 2.6 A, 220 V, three phase 11.24 lbf.in (1.27 N.m) LXM28 5.7 A, 110 V, single phase |
| Maximum radial force fr | 332 N 3000 rpm |
| Accuracy error [angular] | 0.044 ° |
| Centring collar diameter | 2.8 in (70 mm) |
| Maximum mechanical speed | 5000 rpm |
| Distance shaft shoulder-flange | 0.2 in (4 mm) |
| Stator electrical time constant | 3.53 ms 68 °F (20 °C) |
| Ambient air temperature for operation | -4...104 °F (-20...40 °C) |
