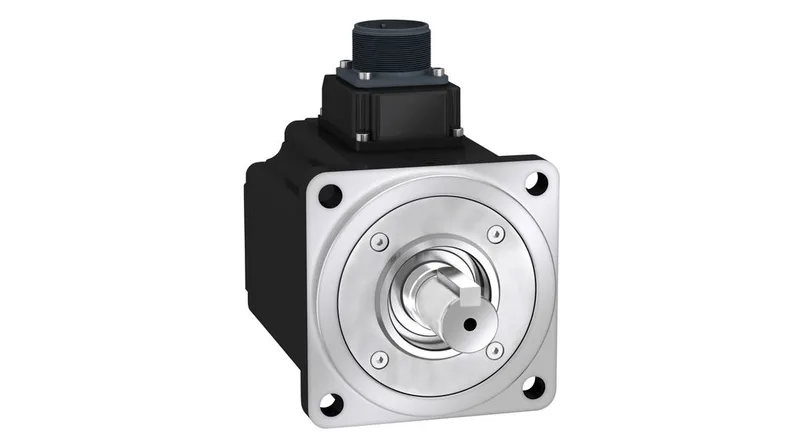

Schneider Electric BCH2LH1033CA6C
MPNBCH2LH1033CA6C
Active
100MM 1KW IP65 W/ KEY MIL CON|100MM 1KW IP65 W/ KEY MIL CON
$392.43 – $973.50Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Feedback type | 20 bits single turn absolute encoder |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 220 V |
| Maximum current irms | 18.9 A LXM28... 1 kW, 220 V |
| Continuous stall current | 5.83 A |
| Maximum permanent current | 6.64 A |
| Continuous power | 1000 W |
| Brake pull-in power | 10.4 W |
| Nominal output power | 1000 W LXM26D 7 A, 220 V, single phase 1000 W LXM26D 7 A, 220 V, three phase 1000 W LXM28... 7 A, 220 V, single phase 1000 W LXM28... 7 A, 220 V, three phase |
| Number of motor poles | 5.0 |
| Phases | Single phase Three phase |
All specifications
| Parameter | Value |
|---|---|
| Network number of phases | 1 |
| IP degree of protection | IP50 IM V3 IP65 IM B5, IM V1 |
| Mounting support | Asian standard flange |
| Mounting holes diameter | 0.4 in (9.2 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Electrical connection | Connector MIL |
| Key width | 0.3 in (8 mm) |
| Centring collar depth | 0.3 in (7 mm) |
| Length | 6.04 in (153.5 mm) |
| Inertia | 0.0 kg.cm² of brake 2.39 kg.cm² of motor |
| Category | US1PC5318281 |
| Shaft end | Keyed |
| Shaft length | 1.8 in (45 mm) |
| Holding brake | Without |
| Nominal speed | 3000 rpm LXM26D 7 A, 220 V, single phase 3000 rpm LXM26D 7 A, 220 V, three phase 3000 rpm LXM28... 7 A, 220 V, single phase 3000 rpm LXM28... 7 A, 220 V, three phase |
| Rotor inertia | 2.4 kg.cm² |
| Nominal torque | 28.15 lbf.in (3.18 N.m) LXM26D 7 A, 220 V, single phase 28.15 lbf.in (3.18 N.m) LXM26D 7 A, 220 V, three phase 28.15 lbf.in (3.18 N.m) LXM28... 7 A, 220 V, single phase 28.15 lbf.in (3.18 N.m) LXM28... 7 A, 220 V, three phase |
| Shaft diameter | 0.9 in (22 mm) |
| Torque constant | 0.55 N.m/A 68 °F (20 °C) |
| Sizing reference | BCH2 |
| Back emf constant | 33 V/krpm 68 °F (20 °C) |
| Device short name | BCH2 |
| Motor flange size | 3.9 in (100 mm) |
| Peak stall torque | 84.44 lbf.in (9.54 N.m) LXM26D 7 A, 220 V, single phase 84.44 lbf.in (9.54 N.m) LXM26D 7 A, 220 V, three phase 84.44 lbf.in (9.54 N.m) LXM28... 7 A, 220 V, single phase 84.44 lbf.in (9.54 N.m) LXM28... 7 A, 220 V, three phase |
| Stator inductance | 4.2 mH 68 °F (20 °C) |
| Stator resistance | 0.67 Ohm 68 °F (20 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Maximum axial force fa | 200 N |
| Number of motor stacks | 1 |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Continuous stall torque | 28.15 lbf.in (3.18 N.m) LXM26D 7 A, 220 V, single phase 28.15 lbf.in (3.18 N.m) LXM26D 7 A, 220 V, three phase 28.15 lbf.in (3.18 N.m) LXM28 7 A, 220 V, single phase 28.15 lbf.in (3.18 N.m) LXM28 7 A, 220 V, three phase |
| Maximum radial force fr | 570 N 3000 rpm |
| Accuracy error [angular] | 0.044 ° |
| Centring collar diameter | 3.7 in (95 mm) |
| Maximum mechanical speed | 5000 rpm |
| Distance shaft shoulder-flange | 0.3 in (7 mm) |
| Stator electrical time constant | 6.27 ms 68 °F (20 °C) |
| Ambient air temperature for operation | -4...104 °F (-20...40 °C) |
