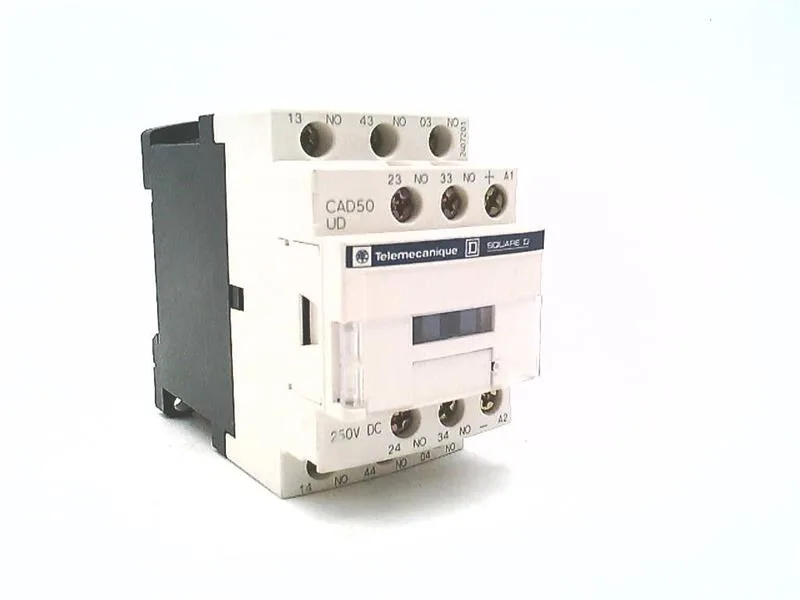

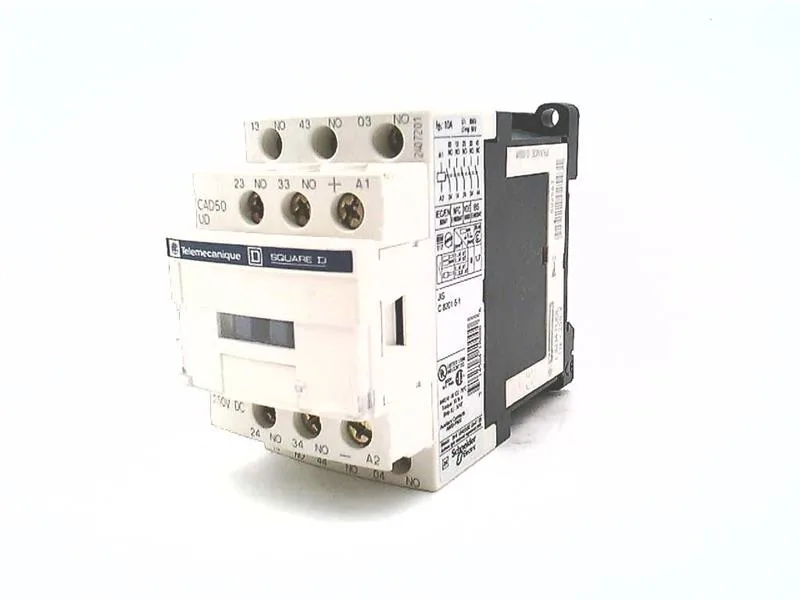

Schneider Electric CAD50UD
MPNCAD50UD
RELAY 600V 10AMP TESYS + OPTIONS|RELAY 600V 10AMP TESYS + OPTIONS
$38.10Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DC OPERATED |
| Terminal type | SCREW CLAMP |
| Coil voltage | 250 VDC |
| Contact voltage rating | 600 VAC/VDC |
| Contact current rating | 10 AMPERE AT 600 VAC, 2.5 AMPERE AT 600 VDC |
| Poles | 5 |
| Contact configuration | 5NO |
| Enclosure | IP2X |
| Mounting | 35 MM DIN 3 TRACK |
| Applicable standard | BS 4794, EN 60947-5, IEC 60947-5-1, NFC 63-140, VDE 0660 |
| Approval | UL, CSA, CE |
| Model | CAD |
All specifications
| Parameter | Value |
|---|---|
| Category | Iec Control Relays & Accessories |
| Manufacturer | Square D Co. |
| Sub-Category | Control Relay |
| Prop 65 warning | WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING: ANTIMONY OXIDE & ANTIMONY TRIOXIDE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV |
| Manufacturer brand | Square D Co. |
| Product description | Square D CAD50UD Relay 600V 10Amp Tesys + Options |
| Additional information | OPERATING TEMPERATURE -40 TO 158 DEG F |
| Full technical description | DC Operated Type; 5NO Contact Configuration; UL, CSA, CE Approval; BS 4794, En 60947-5, IEC 60947-5-1, Nfc 63-140, VDE 0660 Applicable Standard; 35 mm DIN 3 Track Mounting; IP2X Enclosure; 5 Pole(S); Screw Clamp Terminal Type; 250 VDC Coil Voltage; Fixed Contact Type; 10 Ampere at 600 VAC, 2.5 Ampere at 600 VDC Contact Current Rating; 600 VAC/VDC Contact Voltage Rating; TESYS[R] Brand; Operating Temperature -40 to 158 Deg F; CAD Model |
| Proposition 65 warning | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov |
MPN
CAD50UD
