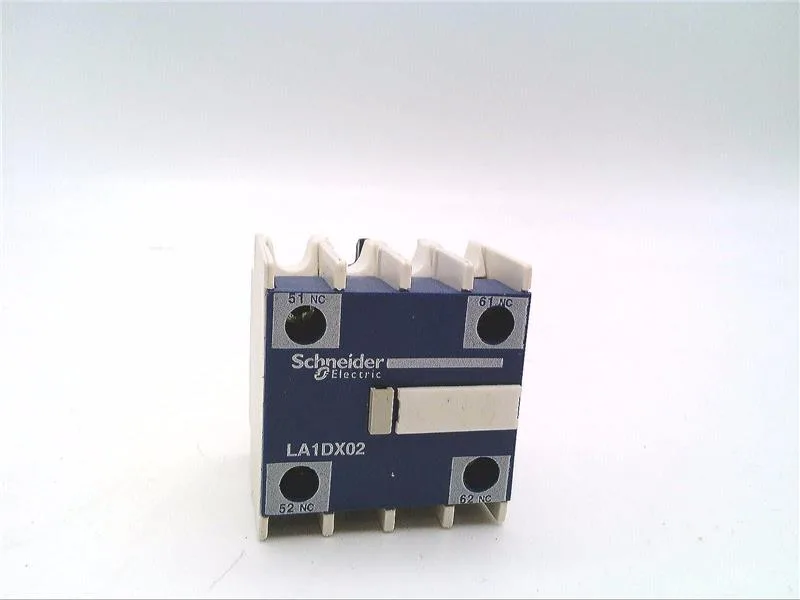

Schneider Electric LA1DX02
MPNLA1DX02
Obsolete
AUX. CONTACT IEC|AUX. CONTACT IEC
$24.69Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Auxiliary contact block |
| Minimum switching voltage | 5 V |
| Voltage | 250 V IEC 60947-5-1 |
| [Ue] rated operational voltage | 125 V AC protected contact 30 V DC protected contact |
| Minimum switching current | 1 mA |
| [Ie] rated operational current | 0.1 A |
| Pole contact composition | 2 NC (sealed) |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Mounting location | Front |
| Connections - terminals | screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²)flexible with cable end screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²)flexible without cable end screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)flexible with cable end screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)flexible without cable end screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²)rigid screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)rigid |
| Depth | 1.5 in (39 mm) |
| Width | 1.7 in (44 mm) |
All specifications
| Parameter | Value |
|---|---|
| Height | 1.9 in (48 mm) |
| Mechanical durability | 5 Mcycles |
| Standards | EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 |
| Range | TeSys |
| Category | US10I1222341 |
| Device short name | LA1 |
| Tightening torque | 15.05 lbf.in (1.7 N.m) flat Ø 6 mm 15.05 lbf.in (1.7 N.m) Philips No 2 15.05 lbf.in (1.7 N.m) pozidriv No 2 |
| Contacts operation | Instantaneous |
| Protective treatment | TH IEC 60068 |
| Insulation resistance | > 10 MOhm |
| Environmental characteristic | Harsh environment |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
MPN
LA1DX02
