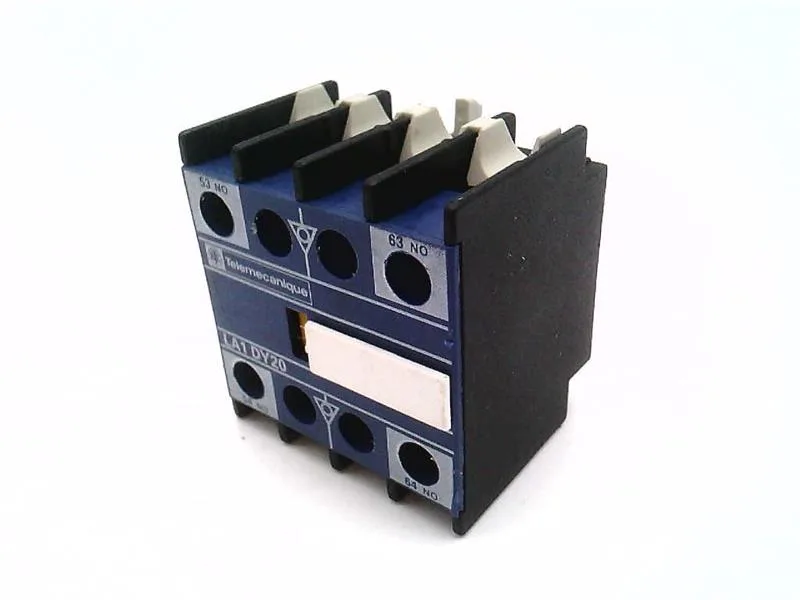

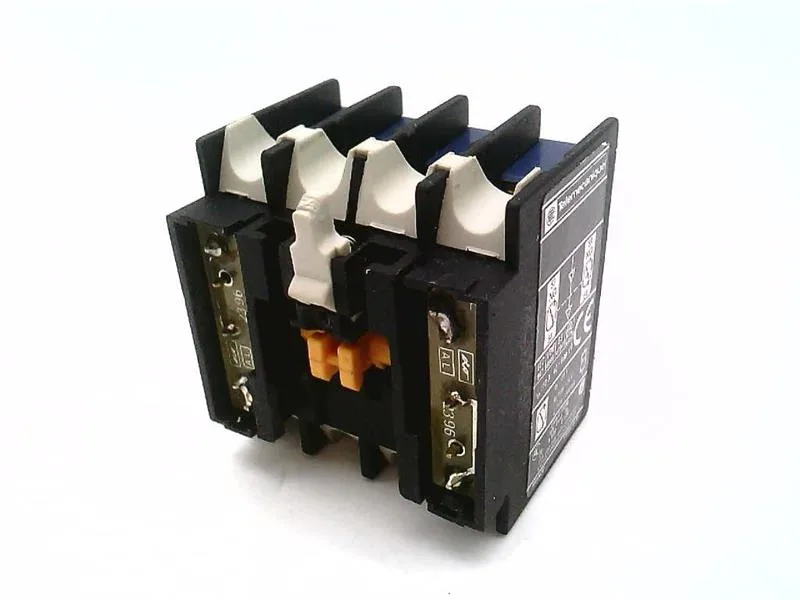

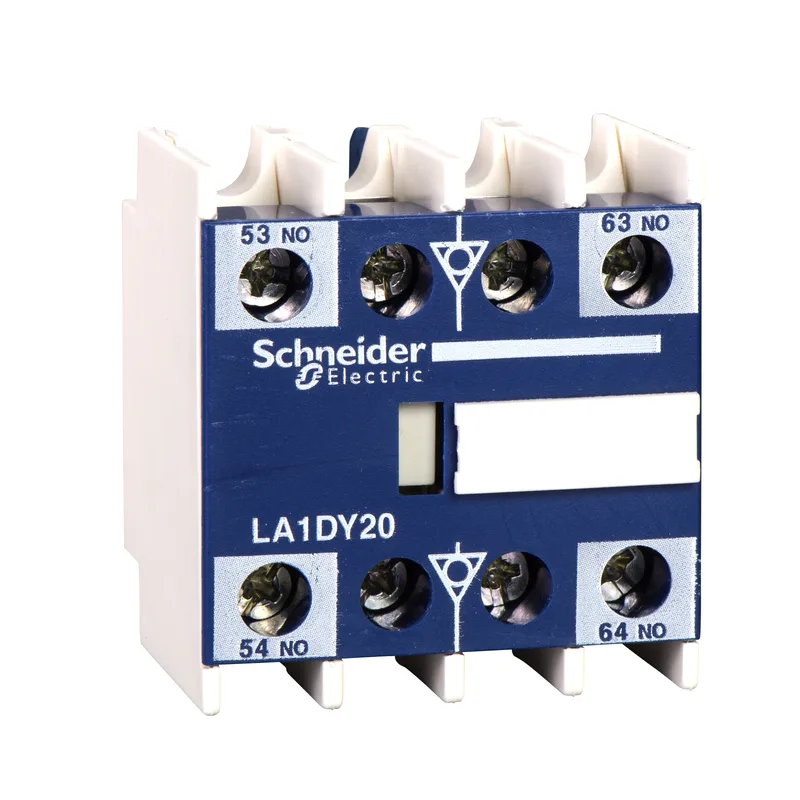

Schneider Electric LA1DY20

Schneider Electric LA1DY20

MPNLA1DY20
Active

SQD LA1DY20 CONTACTOR AUX CONTACT|SQD LA1DY20 CONTACTOR AUX CONTACT 600VAC 10A

$59.69 – $94.09Ref. price · indicative, final on quote
Schneider Electric LA1DY20 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LA1DY20 key specifications
ParameterValue
Product or component typeAuxiliary contact block
Minimum switching voltage5 V
Voltage250 V IEC 60947-5-1
[Ue] rated operational voltage125 V AC protected contact 30 V DC protected contact
Minimum switching current1 mA
[Ie] rated operational current0.1 A
Pole contact composition2 earth screen continuity poles 2 NO (sealed)
IP degree of protectionIP2X conforming to IEC 60529
Mounting locationFront
Connections - terminalsscrew clamp terminals 1 0.002...0.004 in² (1...2.5 mm²)flexible with cable end screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²)flexible without cable end screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)flexible with cable end screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)flexible without cable end screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²)rigid screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)rigid
Depth1.5 in (39 mm)
Width1.7 in (44 mm)

All specifications

LA1DY20 additional specifications
ParameterValue
Height1.9 in (48 mm)
Mechanical durability5 Mcycles
StandardsEN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5
RangeTeSys
CategoryUS10I1222341
Quantity per setSet of 2
Device short nameLA1
Tightening torque15.05 lbf.in (1.7 N.m) flat Ø 6 mm 15.05 lbf.in (1.7 N.m) Philips No 2 15.05 lbf.in (1.7 N.m) pozidriv No 2
Contacts operationInstantaneous
Protective treatmentTH IEC 60068
Insulation resistance> 10 MOhm
Environmental characteristicHarsh environment
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)
MPN
LA1DY20
