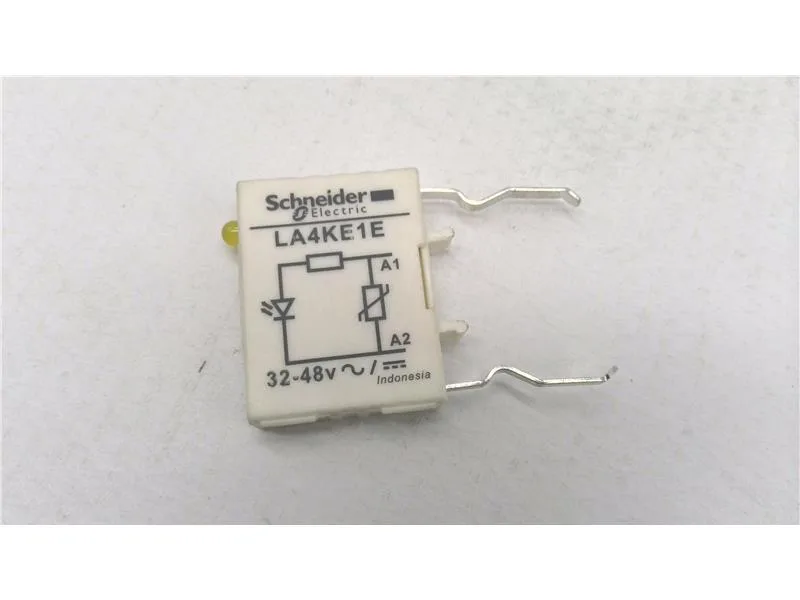

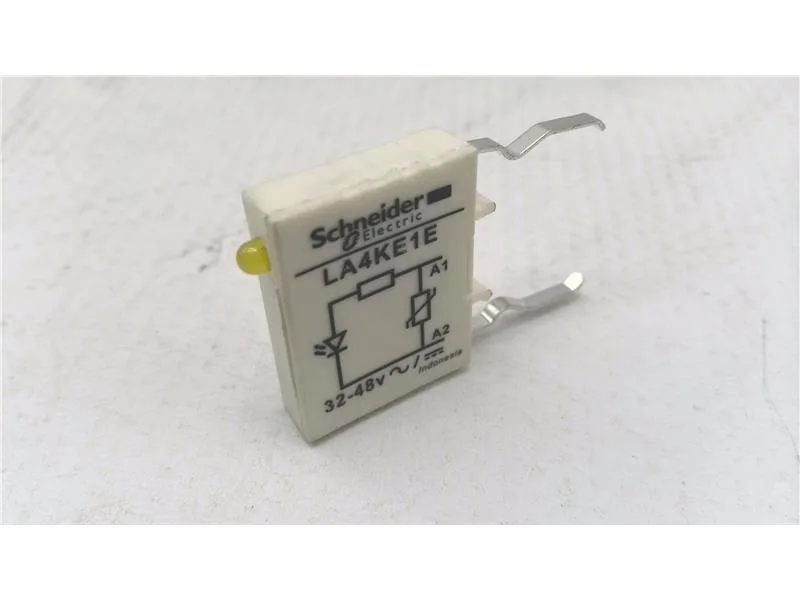

Schneider Electric LA4KE1E
MPNLA4KE1E
Active
Square D LA4KE1E Contactor Relay Suppressor 48V Iec|SQUARE D LA4KE1E: CONTACTOR+RELAY SUPPRESSOR 48V IEC
$4.97Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Suppressor module |
| Maximum peak voltage | 2 Uc |
| Coil voltage | 32...48 V DC 32...48 V AC |
| IP degree of protection | IP2XIEC 60529 |
| Mounting mode | Clip-on |
| Mounting location | Front side |
| Depth | 0.9 in (22 mm) |
| Width | 0.2 in (6 mm) |
| Height | 1.02 in (26 mm) |
| Standards | UL 60947-5-1 CSA C22.2 No 60947-5-1 EN/IEC 60947-5-1 |
| Range | TeSys |
| Category | US10I1222341 |
All specifications
| Parameter | Value |
|---|---|
| Local signalling | LED |
| Quantity per set | Set of 5 |
| Device short name | LA4K |
| Protective treatment | TCIEC 60068 TCDIN 50016 |
| Suppressor technology | Varistor (peak limiting) |
| Ambient air temperature for storage | -58...176 °F (-50...80 °C) |
| Ambient air temperature for operation | -13...122 °F (-25...50 °C) |
MPN
LA4KE1E
