Schneider Electric LC8K0901B7 — Contactors

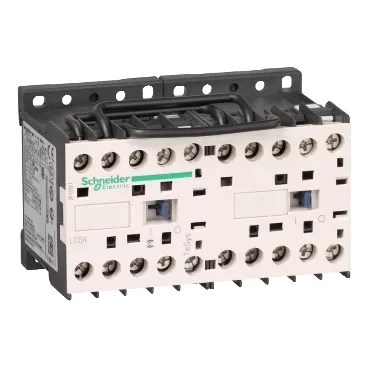

Schneider LC8K0901B7 TeSys K Reversing Contactor, 9 A AC-3, 24 V AC

MPNLC8K0901B7
Obsolete

Schneider TeSys K reversing contactor, 3P, AC-3 <= 440 V 9 A, 1 NC, 24 V AC coil, preassembled with reversing power busbar.

$72.36Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LC8K0901B7 — Identification
ParameterValue
Product / component typeReversing contactor
Series / rangeTeSys
ApplicationResistive load Motor control
LC8K0901B7 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit 690 V AC 50/60 Hz Signalling circuit 10 MOhm for signalling circuit
Utilisation categoryAC-1 AC-3 AC-4
LC8K0901B7 — Contacts & Poles
ParameterValue
Pole configuration3P
LC8K0901B7 — Environmental
ParameterValue
IP degree of protectionIP20 VDE 0106
Operating altitude6561.68 ft (2000 m) without derating
Mechanical robustnessShocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
Protective treatment / pollution degreeTC IEC 60068 TC DIN 50016
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
LC8K0901B7 — Mechanical
ParameterValue
Width3.5 in (90 mm)
Height2.3 in (58 mm)
Depth2.2 in (57 mm)

Product details

It's a 3-pole device rated for AC-3 duty at 9 A up to 440 V, with a 24 V AC coil and one NC auxiliary contact. The utilisation category covers AC-1, AC-3, and AC-4, so it handles resistive loads and motor control.

This part is discontinued per Schneider's product status. There is no official successor listed in the evidence. For sourcing, you're looking at surplus or broker channels — expect to submit an RFQ for availability and lead time.

Physical and environmental fit

The contactor measures 2.2 in deep, 3.5 in wide, and 2.3 in high. It operates in ambient temperatures from -13 to 122 °F and stores from -58 to 176 °F. Rated for altitudes up to 6561.68 ft without derating. IP20 finger-safe protection on the front face. Flame retardance meets V1 per UL 94 and Requirement 2 per NF F 16-101/102.

MPN
LC8K0901B7
