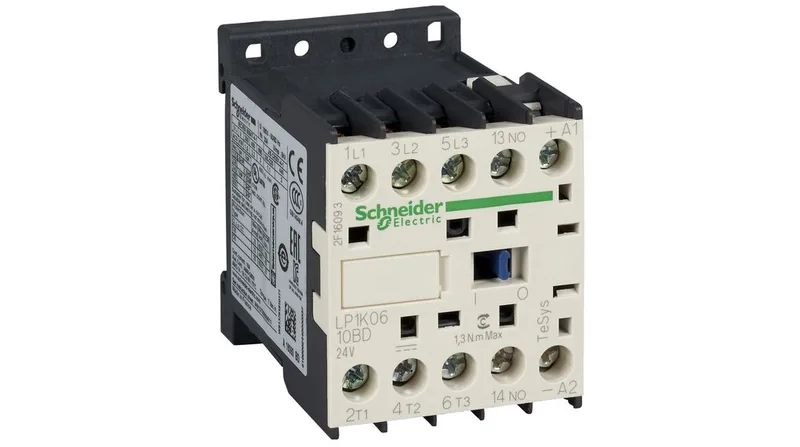

Schneider Electric LP1K0610BDTQ
MPNLP1K0610BDTQ
Obsolete
Contactor, 3 Poles, 3NO, 6A @ 440V, 24V Coil
$24.89 – $26.70Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Contactor |
| Minimum switching voltage | 17 V for control circuit |
| Control circuit voltage limits | Operational: 0.8...1.15 Uc (at Drop-out: >= 0.10 Uc (at <122 °F (50 °C)) |
| [Ue] rated operational voltage | Power circuit Signalling circuit 10 MOhm for control circuit |
| Minimum switching current | 5 mA for control circuit |
| Inrush power in | 3 W 68 °F (20 °C)) |
| Hold-in power consumption in | 3 W 68 °F (20 °C) |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| Utilisation category | AC-3 AC-3e AC-4 |
| IP degree of protection | IP2X |
| Mounting support | Plate Rail |
All specifications
| Parameter | Value |
|---|---|
| Connections - terminals | screw clamp terminals 1 0.002...0.006 in² (1.5...4 mm²)solid screw clamp terminals 1 0.001...0.006 in² (0.75...4 mm²)flexible without cable end screw clamp terminals 1 0.0005...0.004 in² (0.34...2.5 mm²)flexible with cable end screw clamp terminals 2 0.002...0.006 in² (1.5...4 mm²)solid screw clamp terminals 2 0.001...0.006 in² (0.75...4 mm²)flexible without cable end screw clamp terminals 2 0.0005...0.002 in² (0.34...1.5 mm²)flexible with cable end Power circuit screw clamp terminals 2 0.002 in² (1.5 mm²)flexible with cable end Power circuit spring terminals 1 0.001 in² (0.75 mm²)solid Power circuit spring terminals 1 0.002 in² (1.5 mm²)solid Power circuit spring terminals 1 0.001 in² (0.75 mm²)flexible Power circuit spring terminals 1 0.002 in² (1.5 mm²)flexible Control circuit spring terminals 1 0.001 in² (0.75 mm²)solid Control circuit spring terminals 1 0.002 in² (1.5 mm²)solid Control circuit spring terminals 1 0.001 in² (0.75 mm²)flexible Control circuit spring terminals 1 0.002 in² (1.5 mm²)flexible |
| Operating altitude | 6561.68 ft (2000 m) without derating |
| Depth | 2.2 in (57 mm) |
| Width | 1.8 in (45 mm) |
| Height | 2.3 in (58 mm) |
| Electrical durability | 1.3 Mcycles 6 A AC-3 1.3 Mcycles 6 A AC-3e 0.05 Mcycles 36 A AC-4 <= 440 V |
| Mechanical durability | 10 Mcycles |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 |
| Range | TeSys |
| Category | 22321-CTR,K-LINE,DC,OPEN,NONREV |
| Operating time | 10 ms coil de-energisation and NO opening 15 ms coil de-energisation and NC opening 25...35 ms coil energisation and NC opening 30...40 ms between energisation of coil and closing of NO contact |
| Coil technology | Without built-in suppressor module |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | Class C2 conforming to NF F 16-101 Class C2 conforming to NF F 16-102 V1 conforming to UL 94 |
| Heat dissipation | 1.3 W |
| Device short name | LP1K |
| Tightening torque | Power circuit 7.08...11.5 lbf.in (0.8...1.3 N.m) screw clamp terminal flat Ø 6 mm Power circuit 7.08...11.5 lbf.in (0.8...1.3 N.m) screw clamp terminal Philips No 2 Power circuit 7.08...11.5 lbf.in (0.8...1.3 N.m) screw clamp terminals pozidriv No 2 |
| Protective treatment | TC IEC 60068 |
| Contactor application | Motor control |
| Maximum operating rate | 3600 cyc/h |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Ambient air temperature for storage | -58...176 °F (-50...80 °C) |
| Ambient air temperature for operation | -13...122 °F (-25...50 °C) |
