Schneider Electric LV851100
MPNLV851100
Active

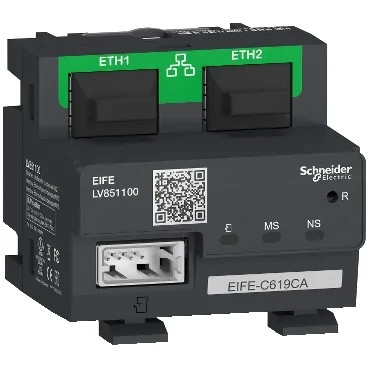

EIFE Ethernet module full kit - for MTZ1 drawout
$904.67 – $949.89Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Ethernet interface module |
| Communication network type | ULP, CANopen USB Ethernet, Ethernet TCP/IP 10/100 Mbps RJ45 |
| Maximum supply current | 3 A |
| Power consumption in | 72 W |
| IP degree of protection | IP30 |
| Communication gateway | Ethernet TCP/IP to Modbus |
| Device mounting | Embedded |
| Mounting support | DIN rail |
| Circuit breaker mounting mode | Drawout |
| Depth | 2.07 in (52.5 mm) |
| Width | 2.008 in (51 mm) |
| Height | 2.008 in (51 mm) |
All specifications
| Parameter | Value |
|---|---|
| Standards | IEC 60947-6-2 IACS E10 IEC 60950 |
| Range | MasterPact |
| Web server | Embedded |
| Condition of use | With specific accessories |
| Device application | Communication |
| Localisation on device | Chassis |
| Ambient air temperature for operation | -4...158 °F (-20...70 °C) |
MPN
LV851100
