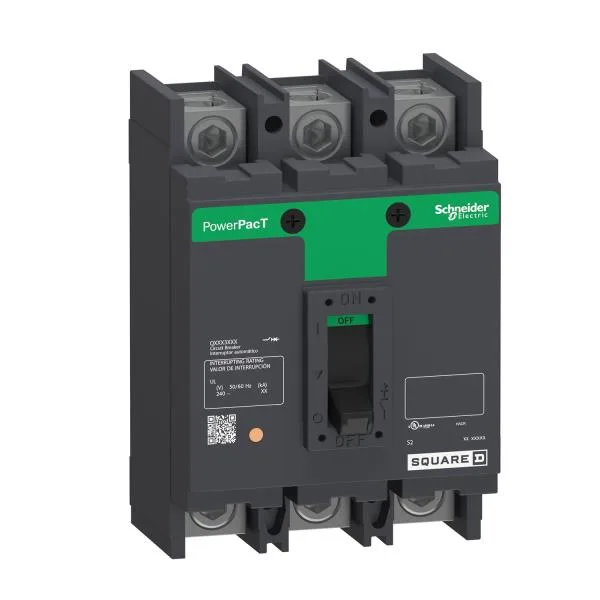

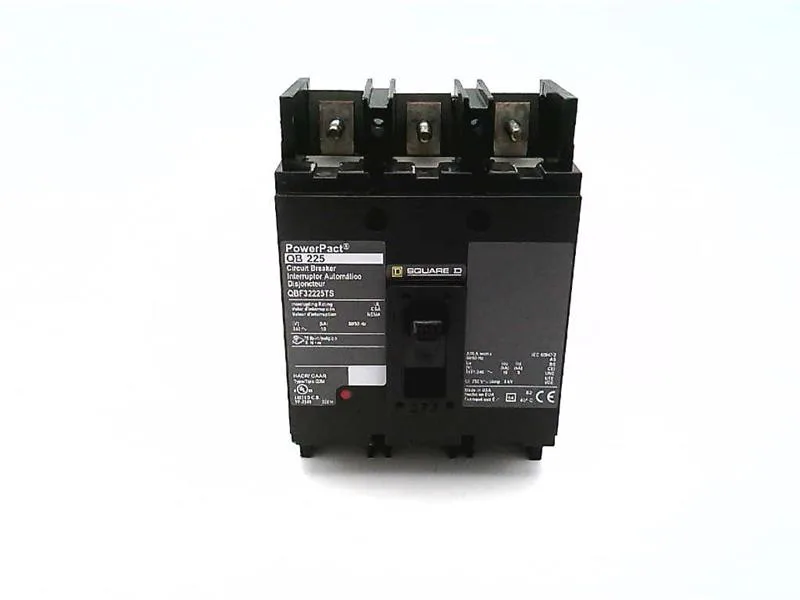

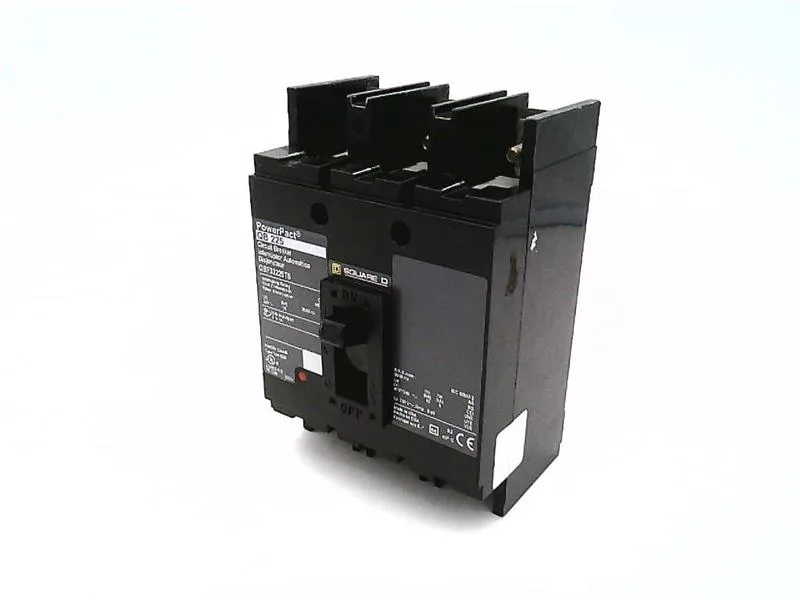

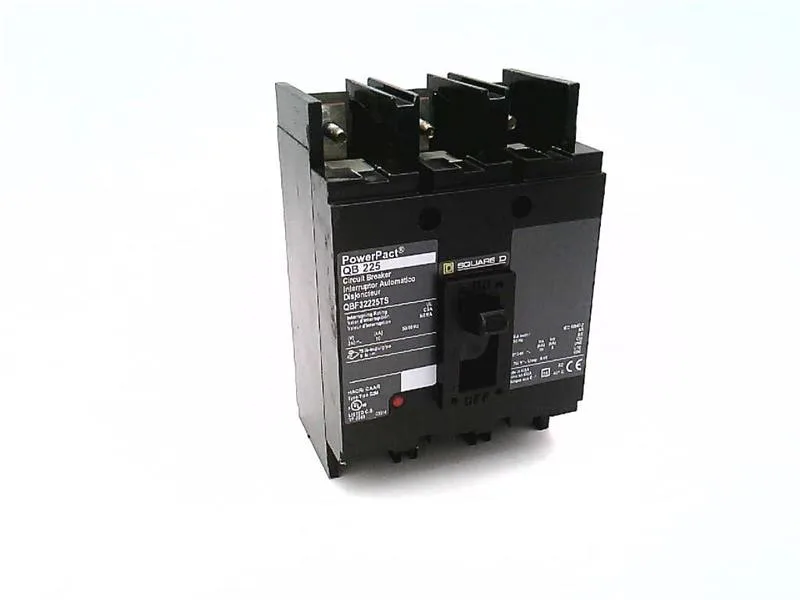

Schneider Electric QBF32225TS
MPNQBF32225TS
Active
SQUARE D QBF32225TS: MOLDED CASE CIRCUIT BREAKER 240V 225A
$845.00 – $2,469.02Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Operating handle |
| Product or component type | Circuit breaker |
| [Ue] rated operational voltage | 240 V AC 50/60 Hz UL |
| [Uimp] rated impulse withstand voltage | 8 kV UL |
| Breaking capacity | 10 kA 120/208 V AC 50/60 Hz UL 10 kA 240 V AC 50/60 Hz UL |
| Line rated current | 225 A |
| Magnetic hold current | 1200 A |
| Breaking capacity code | B |
| Continuous current rating | 80 % |
| Magnetic tripping current | 2400 A |
| Power wire stripping length | 0.9 in (22 mm) |
| Network frequency | 50/60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Poles | 3P |
| Utilisation category | Category A |
| Mounting mode | Unit mount busbar) |
| Mounting support | Busbar |
| Electrical connection | Busbar connection, line Busbar connection, load |
| Depth | 3.93 in (99.82 mm) |
| Width | 4.5 in (114.3 mm) |
| Height | 6.47 in (164.34 mm) |
| Mechanical durability | 1000 cycles loaded 5000 cycles no load |
| Standards | UL CSA NEMA NOM-003-SCFI-2000 |
| Range | PowerPact |
| Local signalling | 1 trip indicator green) |
| Tightening torque | 247.8 lbf.in (28 N.m) 0.04...0.2 in² (25...150 mm²) (AWG 4...300 kcmil) |
| Device application | Distribution |
| Trip unit technology | Thermal-magnetic |
| Circuit breaker application | HACR rated |
| Ambient air temperature for operation | 104...158 °F (40...70 °C) |
